Collaborative Task Allocation Method for Multi-Target Air-Ground Heterogeneous Unmanned System

doi:10.12382/bgxb.2022.0095

Abstract

Abstract:

To address the collaborative task allocation problem of air-ground heterogeneous unmanned systems composed of ground unmanned vehicles (UGV) and unmanned aerial vehicles (UAVs) facing large ranges and multiple targets, the task allocation model of air-ground heterogeneous unmanned systems is established with the completion time of the unmanned systems as the optimization goal and the constraints of the UAV launch and recovery, endurance and task sequence taken in account. A task allocation method for multi-target air-ground heterogeneous unmanned systems is proposed, which combines density peak clustering and hybrid particle swarm optimization algorithm (hybrid-PSO) to solve the task allocation problem of air-ground heterogeneous unmanned systems, so as to obtain the global task allocation results that satisfy the constraints. The proposed method is verified by simulation experiments, and the results show that the method can effectively solve the task allocation problem of air-ground heterogeneous unmanned systems in different operational environments.

Key words: unmanned system, task allocation, density peak clustering algorithm, hybrid particle swarm optimization algorithm

FAN Boyang, ZHAO Gaopeng, BO Yuming, WU Xiang. Collaborative Task Allocation Method for Multi-Target Air-Ground Heterogeneous Unmanned System[J]. Acta Armamentarii, 2023, 44(6): 1564-1575.

Figures/Tables 20

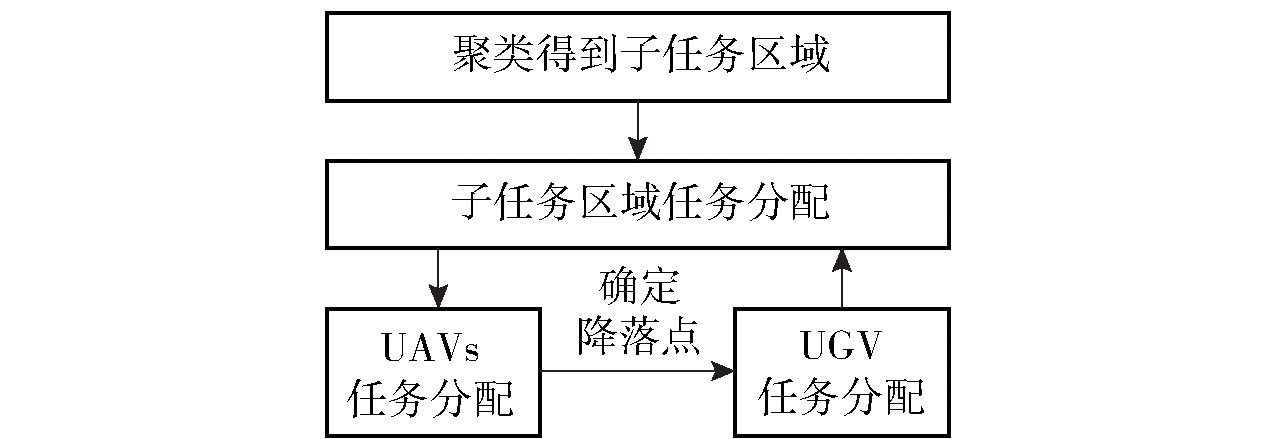

Fig.1 Main idea of this study

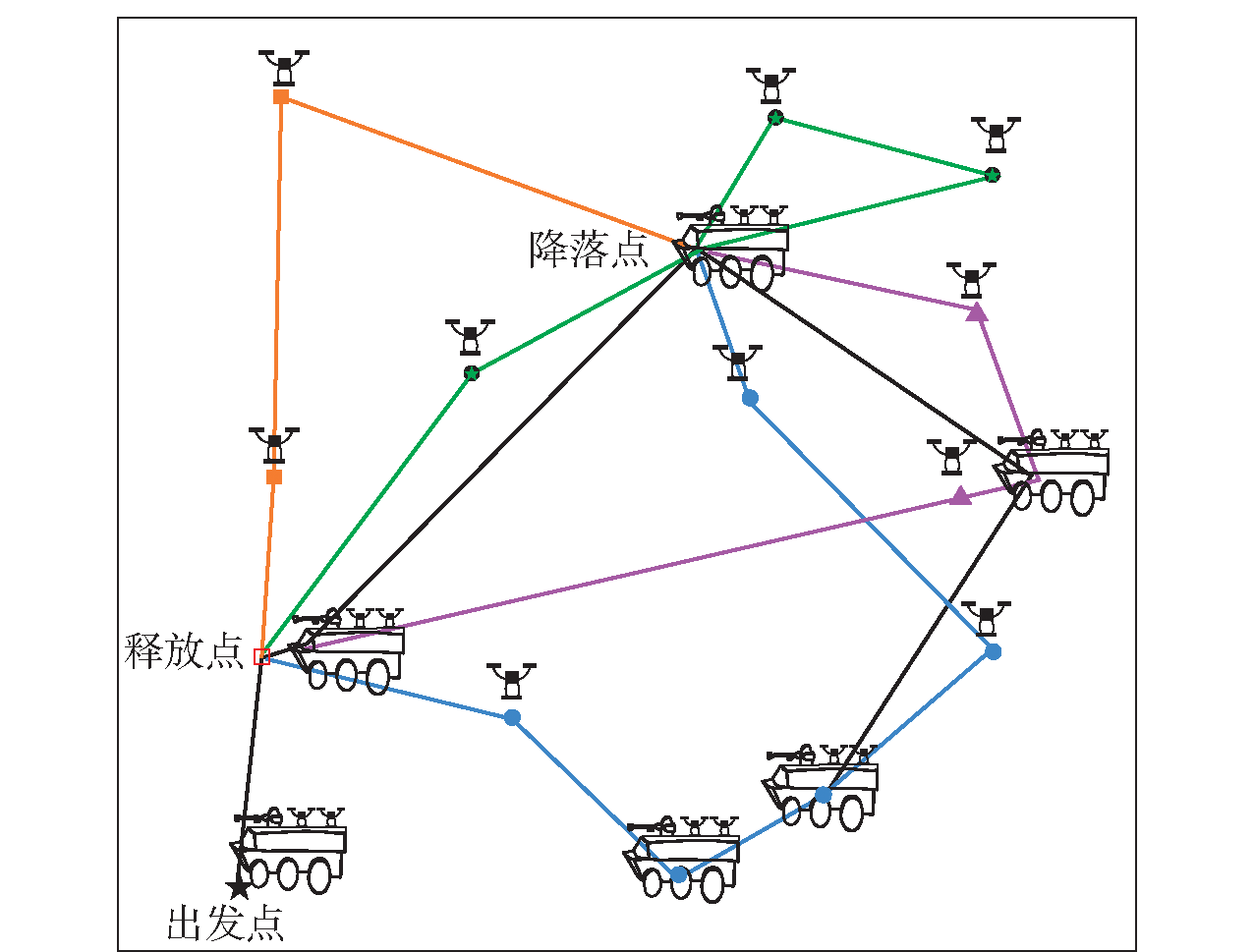

Fig.2 Schematic diagram of collaborative operation process of multi-target air-ground heterogeneous unmanned system

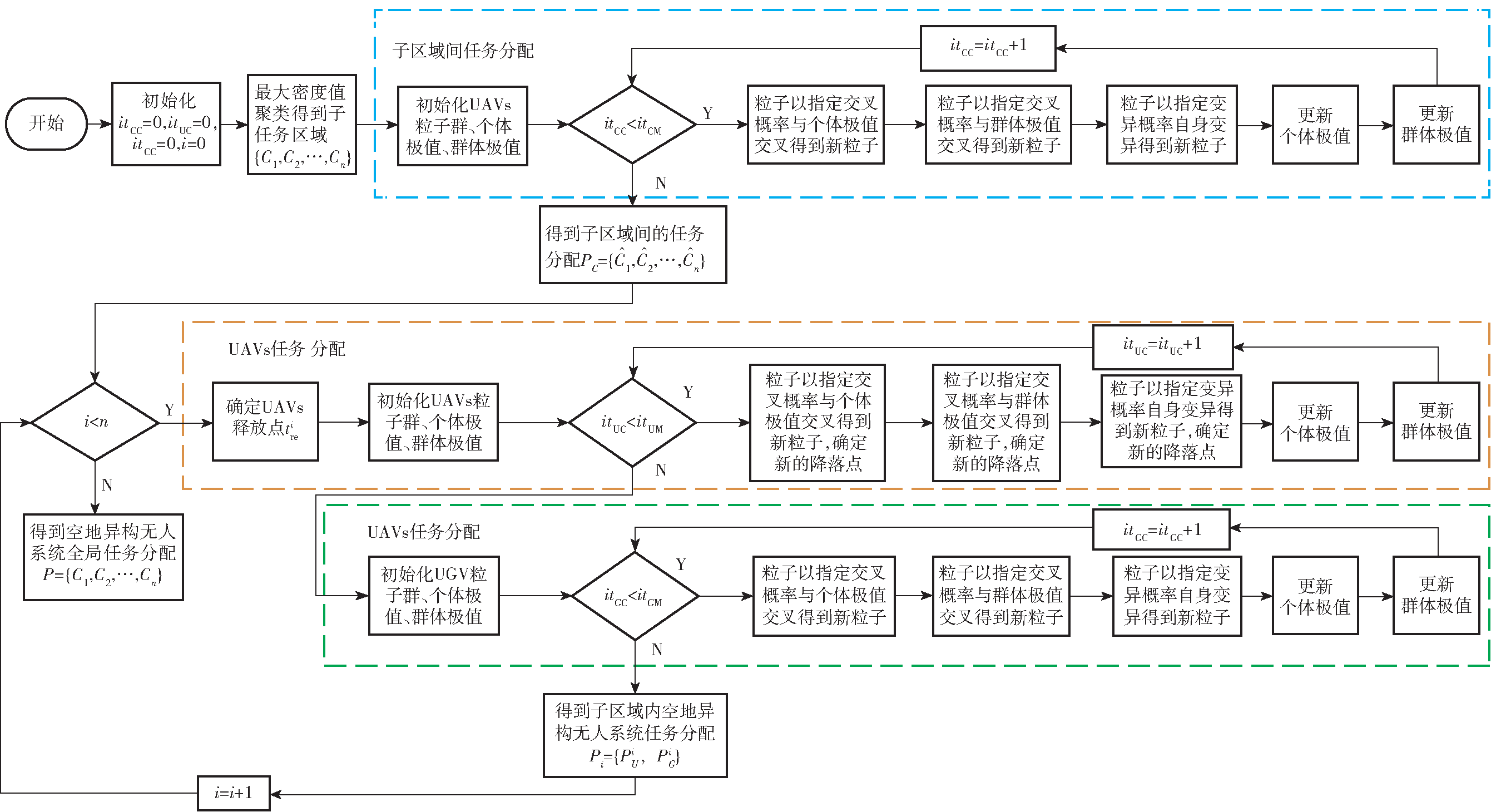

Fig.3 Process of the task allocation method for multi-target air-ground heterogeneous unmanned system

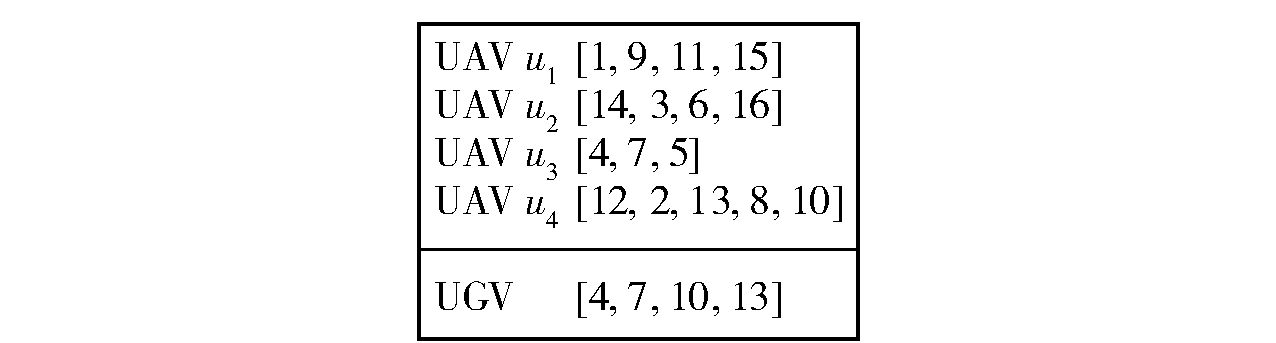

Fig.4 A sample of the particle code

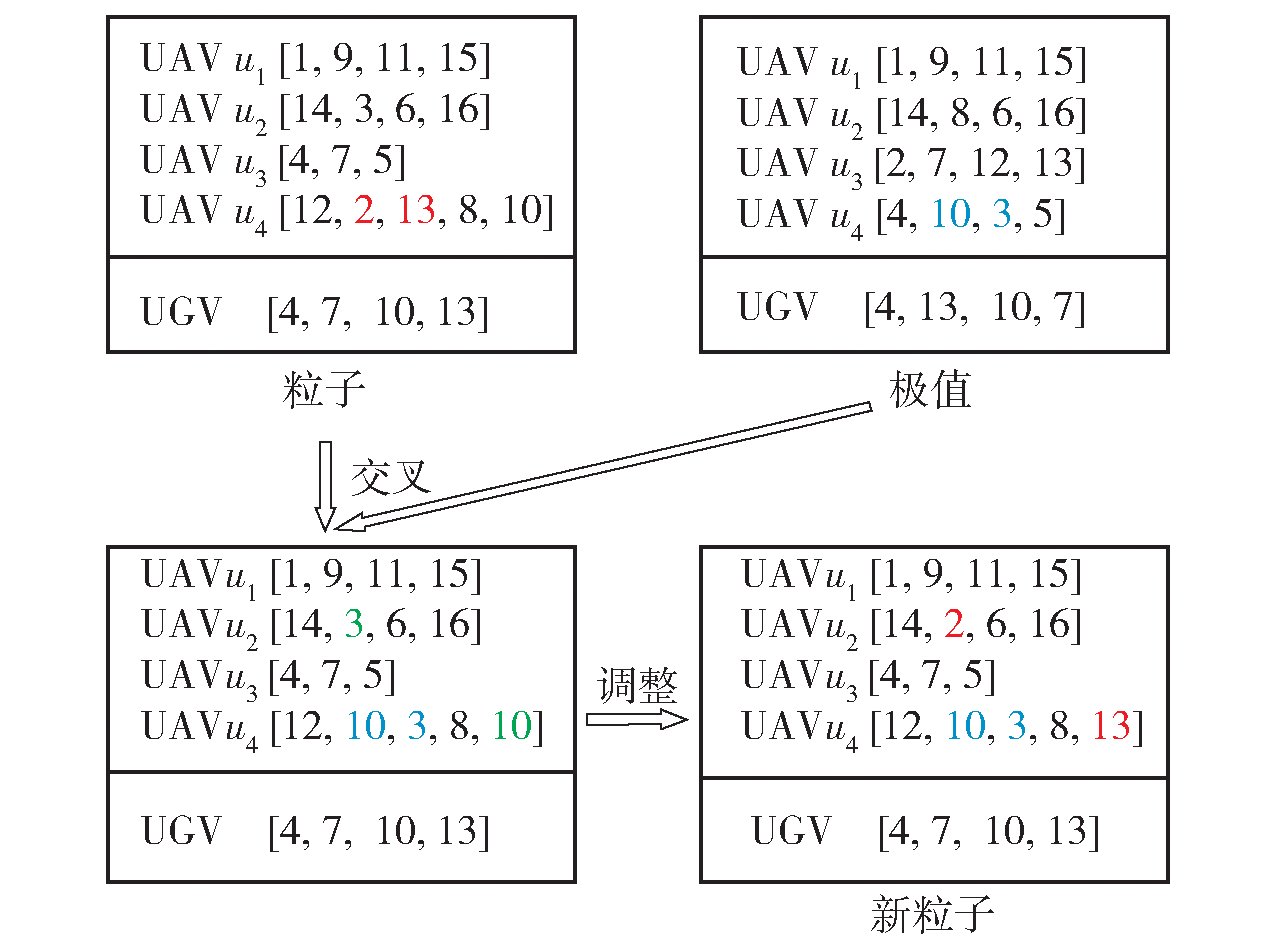

Fig.5 A sample of the crossover operation

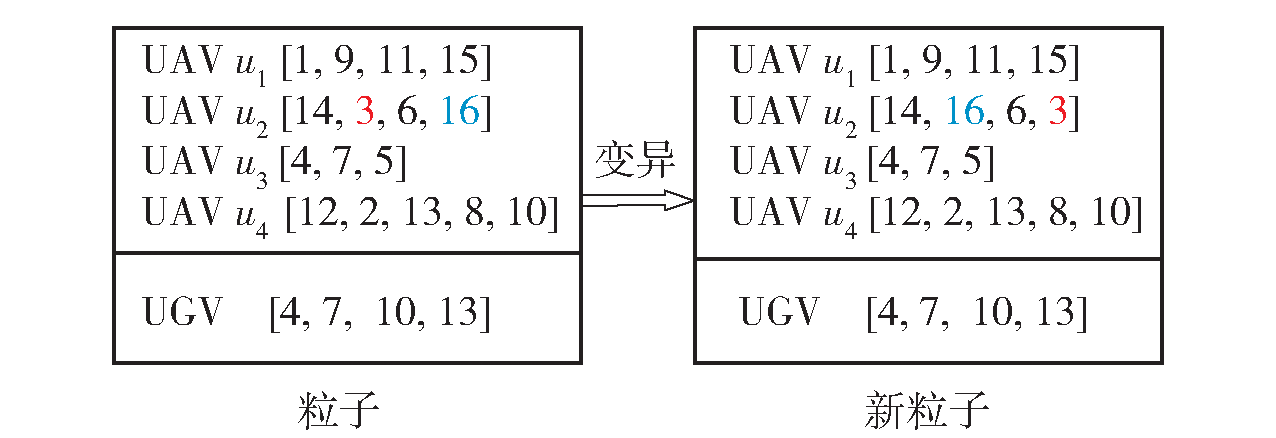

Fig.6 A sample of the mutation operation

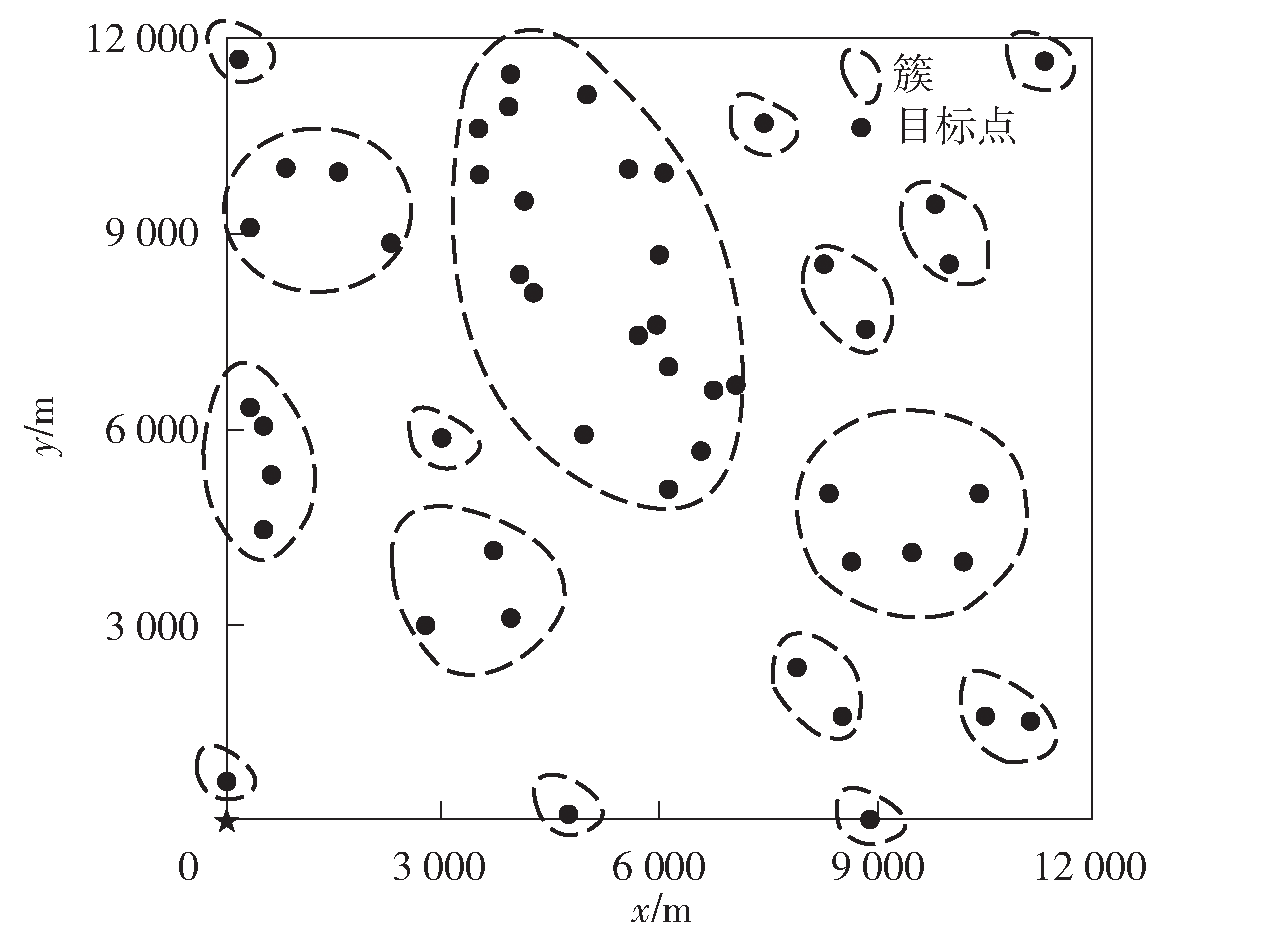

Fig.7 Result of density peak clustering

Table 1 Comparison of clustering results in the range of 12000m×12000m

聚类算法	发现簇数量	DBI值
密度值最大聚类	16	0.9281
DBSCAN算法	16	1.0168
k-means算法	16(手动设定)	1.5859

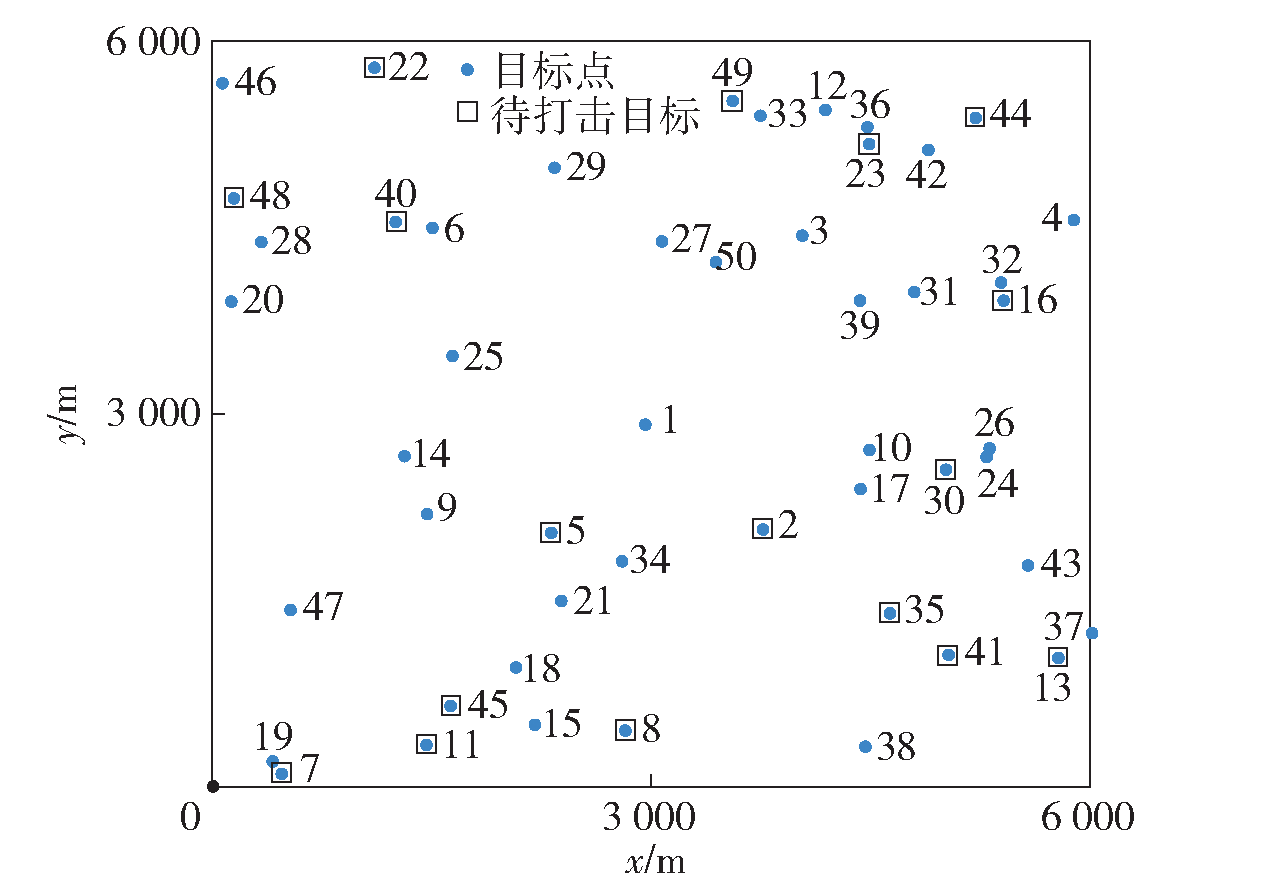

Fig.8 Target distribution map in the range of 6000m×6000m

Table 2 Parameters of thecollaborative task allocation method in the range of 6000m×6000m

算法	参数	数值	参数	UAV任务分配	UGV任务分配
	邻域半径/m	1000	种群数量	800	250
密度值最大聚类	密度阈值	5	混合粒子群优化	迭代次数	2400	800
	簇距离阈值/m	1500		交叉概率	0.7	0.7
				变异概率	0.7	0.7

Table 3 Collaborative task allocation in the range of 6000m×6000m

无人系统	释放点坐标/m	任务序列	任务耗时/s	降落点	UGV抵达降落点耗时/s
UAV1		[7,38,10,4, 44,42, 23,36,12,33,49,29]	1718.11
UAV2		[11,15,8,5,14,20,28,48,46,22]	1340.85
UAV3	(365,106)	[47,9,21,34,1,39,31,16,32,3,50,27,40,6]	1562.53	目标点[40]	1335.49
UAV4		[19,45,18,17,30,26,24,43,37,13,41,35,2,25]	1643.87
UGV		[7,48,22,40,5,45,11,8,2,35,41,13,30,16,44,23,49]	4323.73

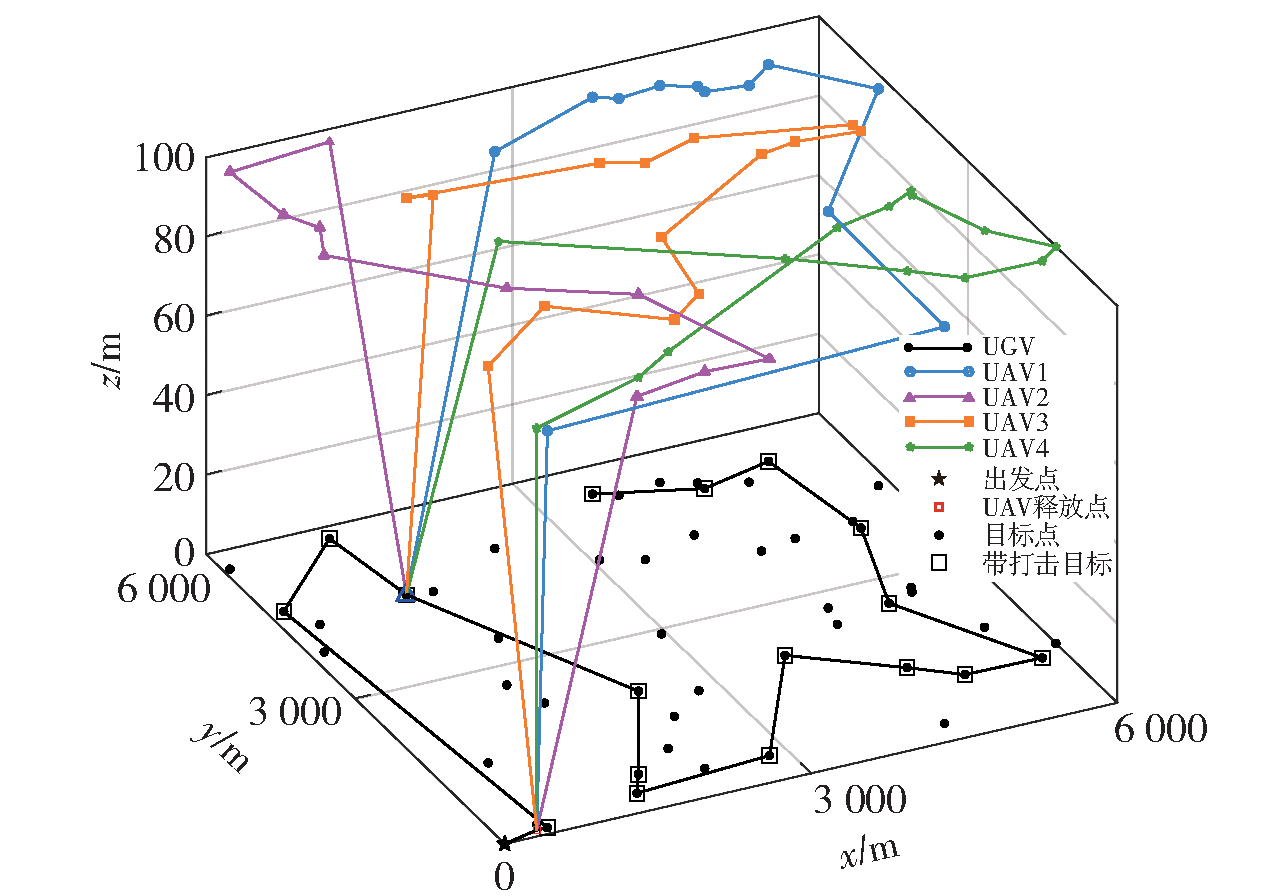

Fig.9 Schematic diagram of the collaborative taskallocation in the range of 6000m×6000m

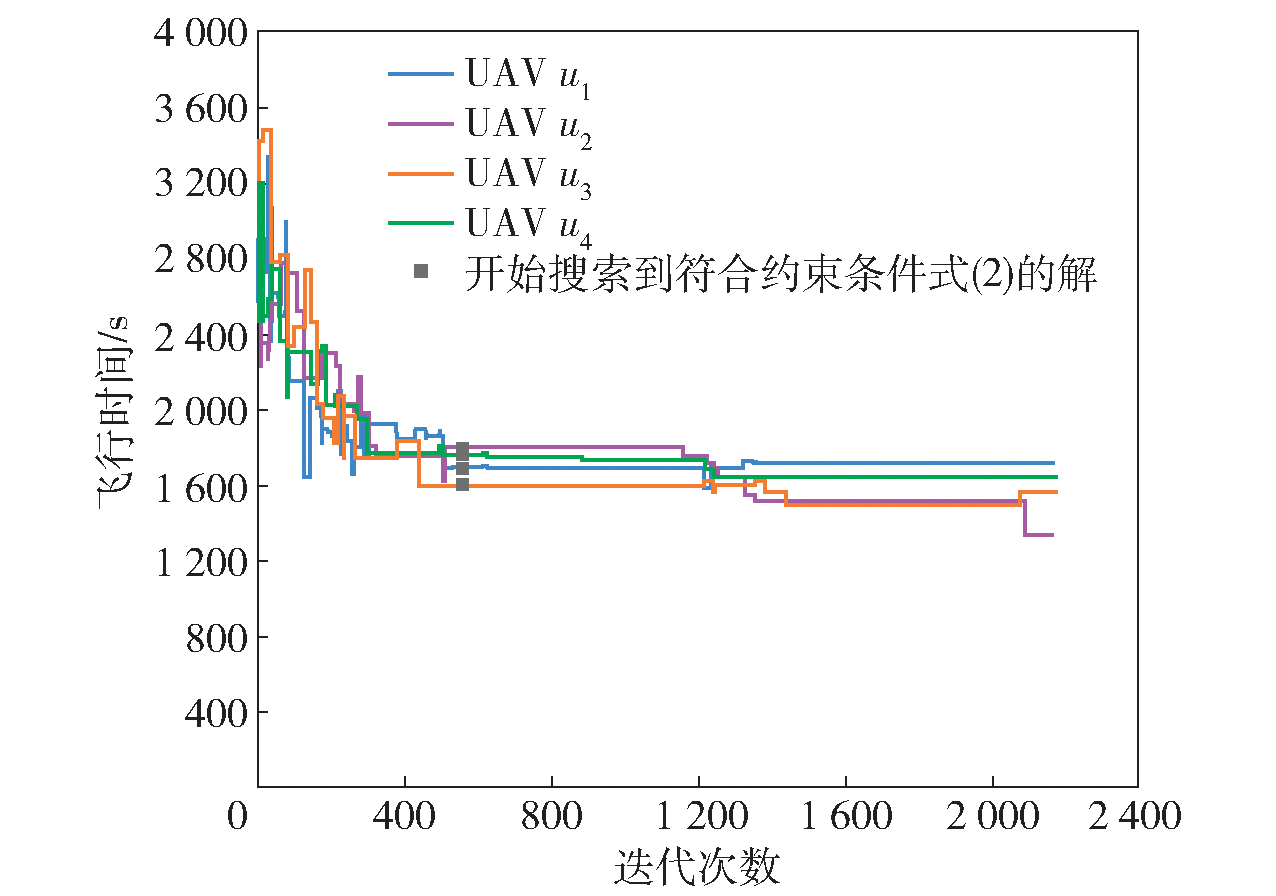

Fig.10 Flight time curves of UAVs

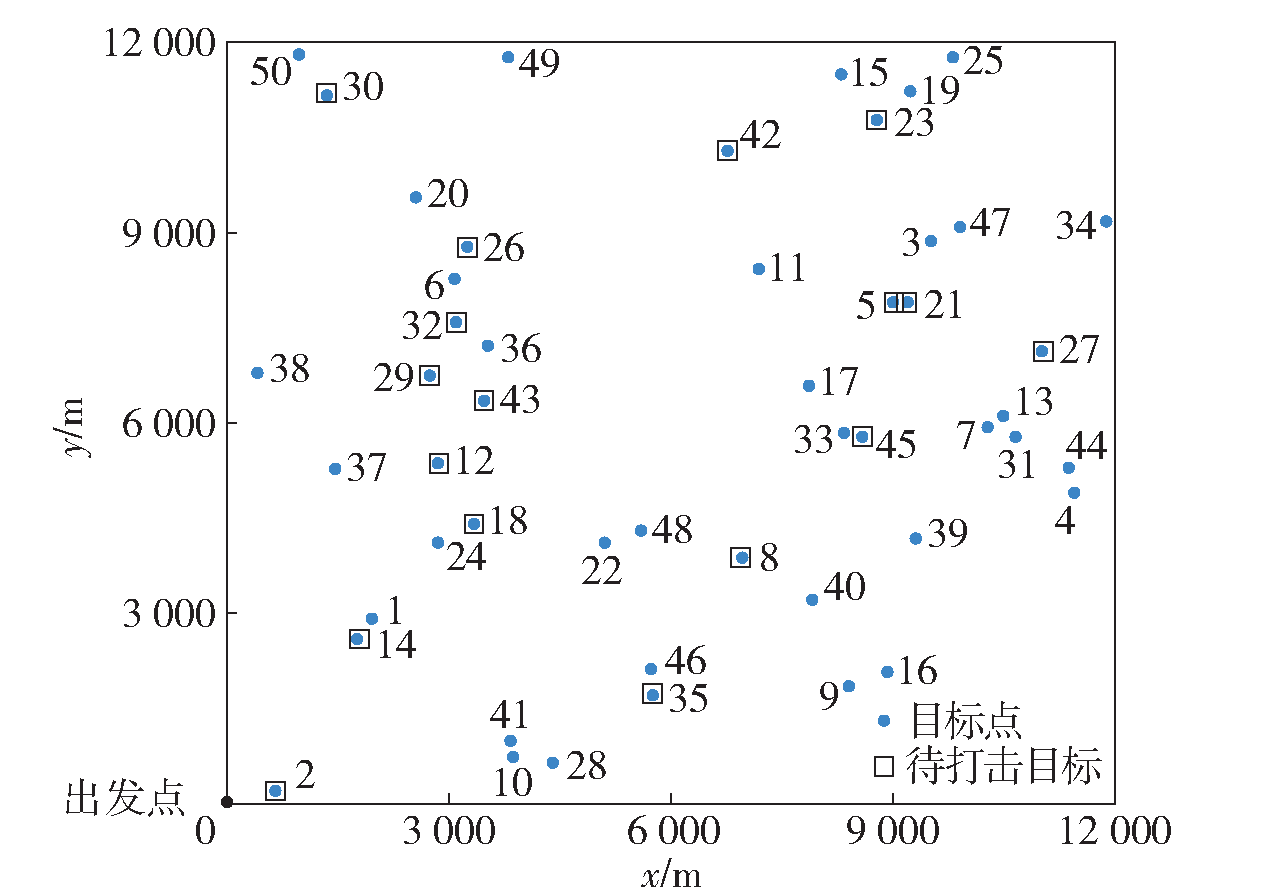

Fig.11 Target distribution map in the range of 12000m×12000m

Table 4 Parameters of the task allocation method without clustering in the range of 12000m×12000m

参数	UAV任务分配	UGV任务分配
种群数量	800	250
迭代次数	2400	800
交叉概率	0.7	0.7
变异概率	0.7	0.7

Table 5 Task allocation result without clustering in the range of 12000m×12000m

无人系统	规划结果
无人系统	释放点坐标/m	任务序列	降落点
UAV1		[14,37,38,30,50,49,20,26,6,36,17,33,45]	目标点[5]
UAV2	(617,85)	[1,24,18,3,47,34,25,19,15,23]
UAV3		[41,35,46,8,40,9,16,39,4,44,31,7,13,27]
UAV4		[2,10,28,48,22,12,43,29,32,42,11,5,21]

Table 6 Parameters of the collaborative task allocation method in the range of 12000m×12000m

算法	参数	数值	参数	子任务区域任务分配	UAV任务分配	UGV任务分配
	邻域半径/m	1000	种群数量	240	240	50
密度值最大聚类算法	密度阈值	5	混合粒子群优化算法	迭代次数	720	720	200
	簇距离阈值/m	1500		交叉概率	0.7	0.7	0.7
				变异概率	0.7	0.7	0.7

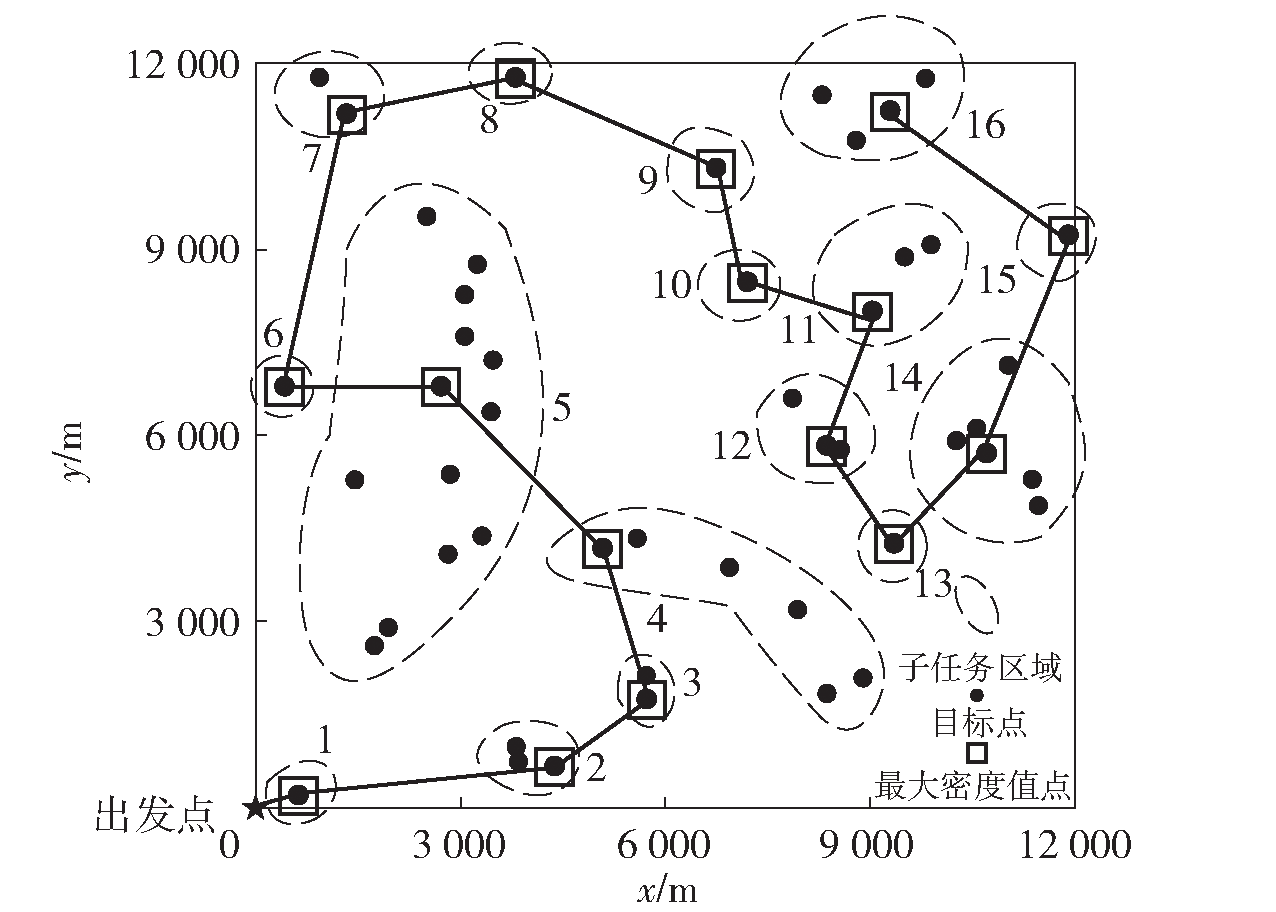

Fig.12 Clustering and task allocation

Table 7 Collaborative task allocation for multi-target air-ground heterogeneous unmanned system in the range of 12000m×12000m

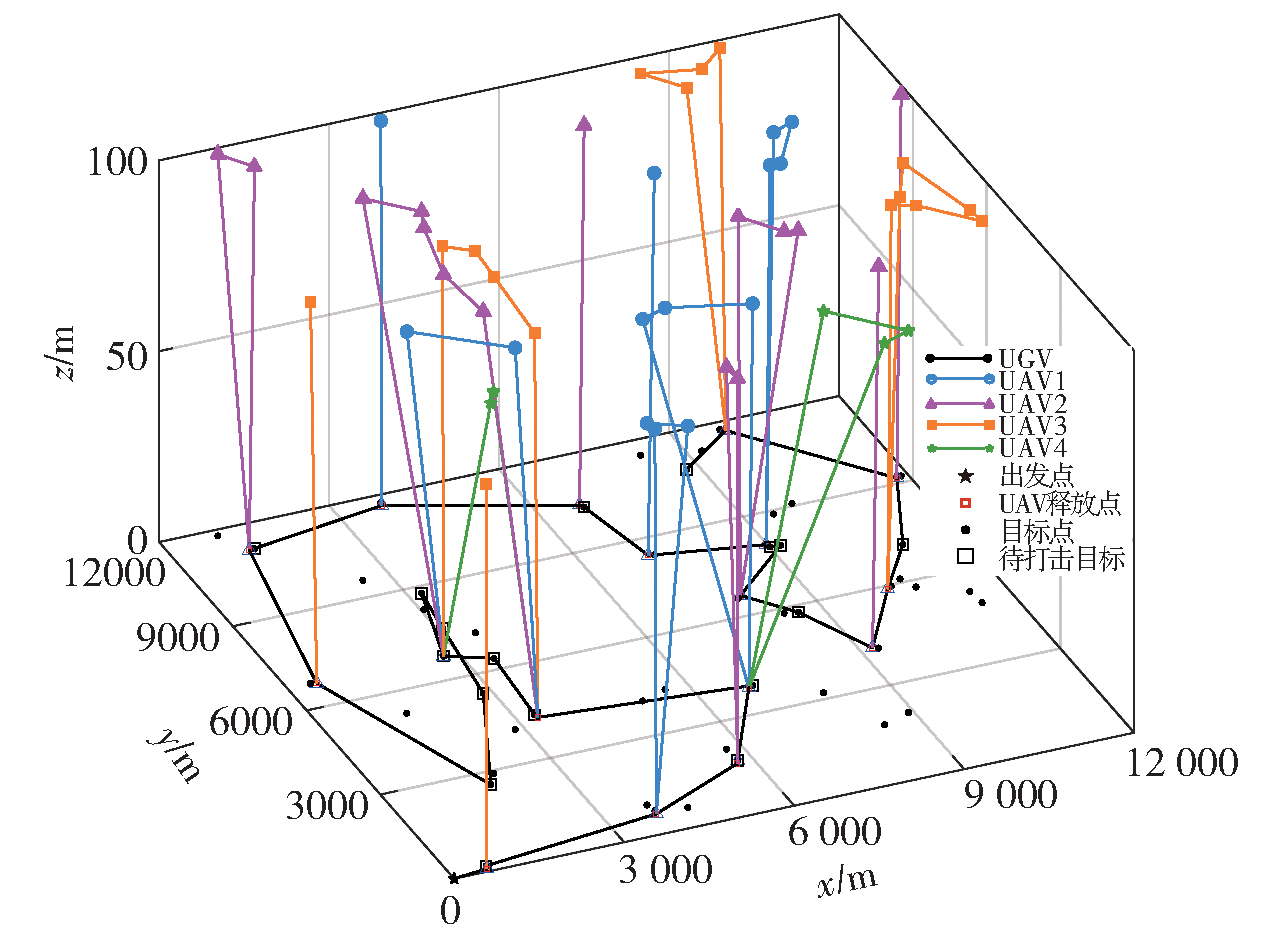

Fig.13 Schematic diagram of the collaborative task allocation for multi-target air-ground heterogeneous unmanned system in the range of 12000m×12000m
