耦合上装载荷的多轴车辆动力学建模与仿真

doi:10.12382/bgxb.2024.0647

摘要/Abstract

摘要：

多轴轮式车辆动力学模型是新型车辆快速开发及车辆设计参数优化、控制算法搭建的基础。目前普遍采用商用软件搭建,其动力学方程及模型梯度信息难以获取,无法将其应用于整车全局设计与控制参数的动态优化,且现有商业软件及理论建模研究对上装载荷动力学影响考虑较少。针对上述问题,基于拉格朗日动力学,考虑簧下质量纵横向运动及上装载荷反作用力对整车动力学的影响,应用矢量化建模方法搭建8×8轮式车辆24自由度动力学模型,分别基于C++和M语言进行软件开发。在变加速、阶跃转向、双移线、正弦扫频等多种工况下与商业软件TruckSim进行全面对比。研究结果表明,自主开发的仿真模型其轮胎力、悬架力及空气阻力、纵横垂向运动等与商业软件高度一致,最大误差小于5%,验证了新方法的准确性。

关键词: 多轴轮式车辆, 上装载荷, 矢量化建模, 动力学建模与仿真

Abstract:

Multi-axle wheeled vehicle dynamics model is the basis for the rapid development of new vehicle equipment,the optimization of vehicle design parameters and the construction of control algorithms.The commonly used commercial software is difficult to obtain the dynamic equations and model gradient information so that it cannot be used for the dynamic optimization of vehicle global design and control parameters.And the effects of top-loading dynamics have been given less consideration in existing commercial software and theoretical modelling studies.In order to address the aforementioned issues,a vectorized modeling method is employed to construct a 24-degrees-of-freedom dynamics model of an 8×8 wheeled vehicle based on Lagrangian dynamics,which considers the influences of the longitudinal and lateral motions of unsprung mass and the reaction force of top load on the vehicle dynamics.The modeling is based on Lagrangian dynamics,and the software is developed using C++ and M languages,respectively.The proposed model is comprehensively compared with the commercial software TruckSim under a variety of working conditions,including variable acceleration,step steering,double lane change,swept sine steering.The results demonstrate that the tire force,suspension force and air resistance,as well as the longitudinal,lateral and vertical motions of the proposed simulation model exhibit high consistency with those of the commercial software with an error of less than 5%.This verifies the accuracy of the methodology.

Key words: multi-axle wheeled vehicle, top load, vectorized modeling, dynamics modeling and simulation

李文浩, 于会龙, 卢玉传, 任延飞, 席军强. 耦合上装载荷的多轴车辆动力学建模与仿真[J]. 兵工学报, 2025, 46(8): 240647-.

LI Wenhao, YU Huilong, LU Yuchuan, REN Yanfei, XI Junqiang. Dynamics Modeling and Simulation of Multi-axle Wheeled Vehicle with Coupled Top Loads[J]. Acta Armamentarii, 2025, 46(8): 240647-.

图/表 15

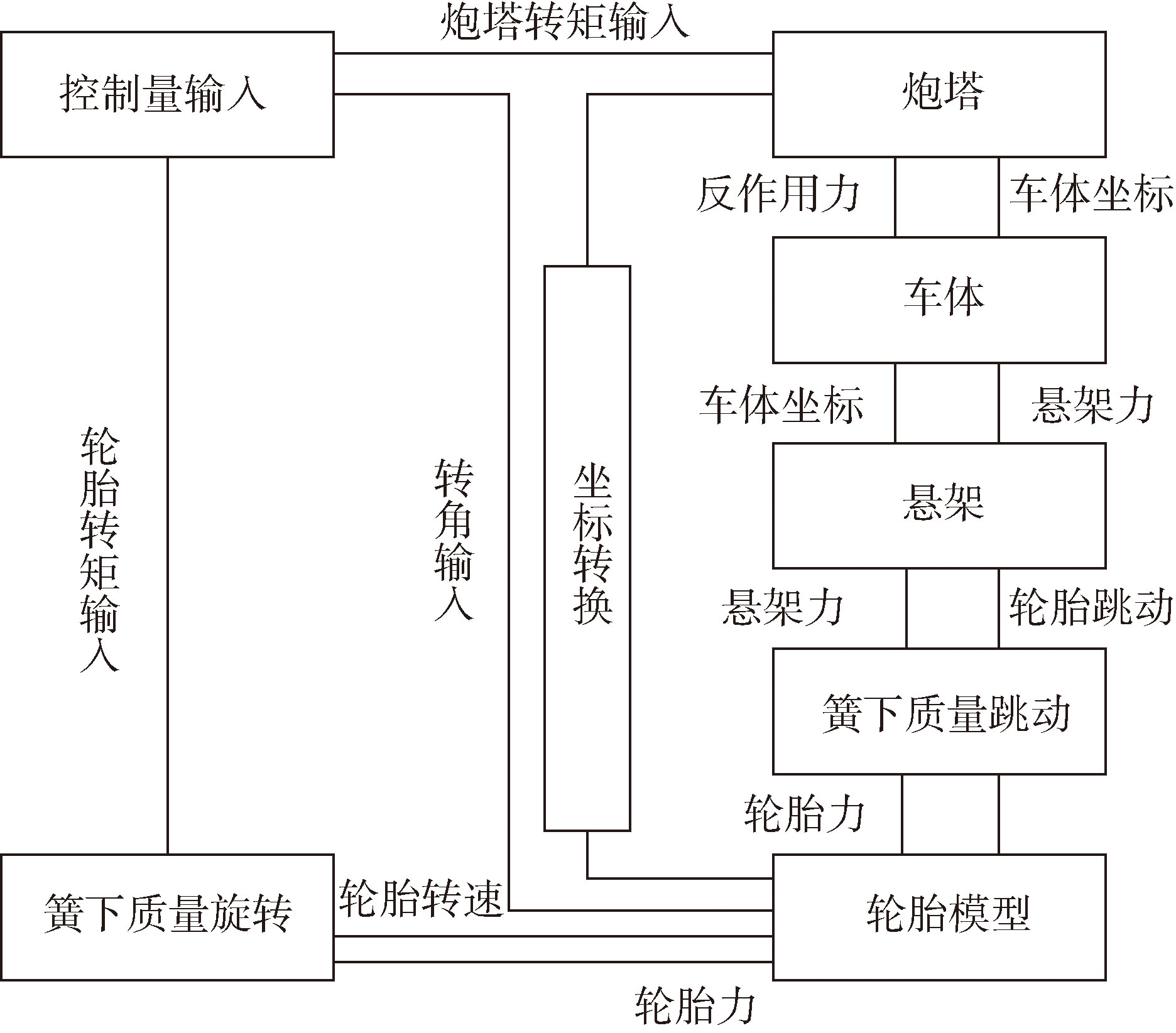

图1 8×8轮式整车动力学模型框架

Fig.1 Framework of 8×8 wheeled vehicle model

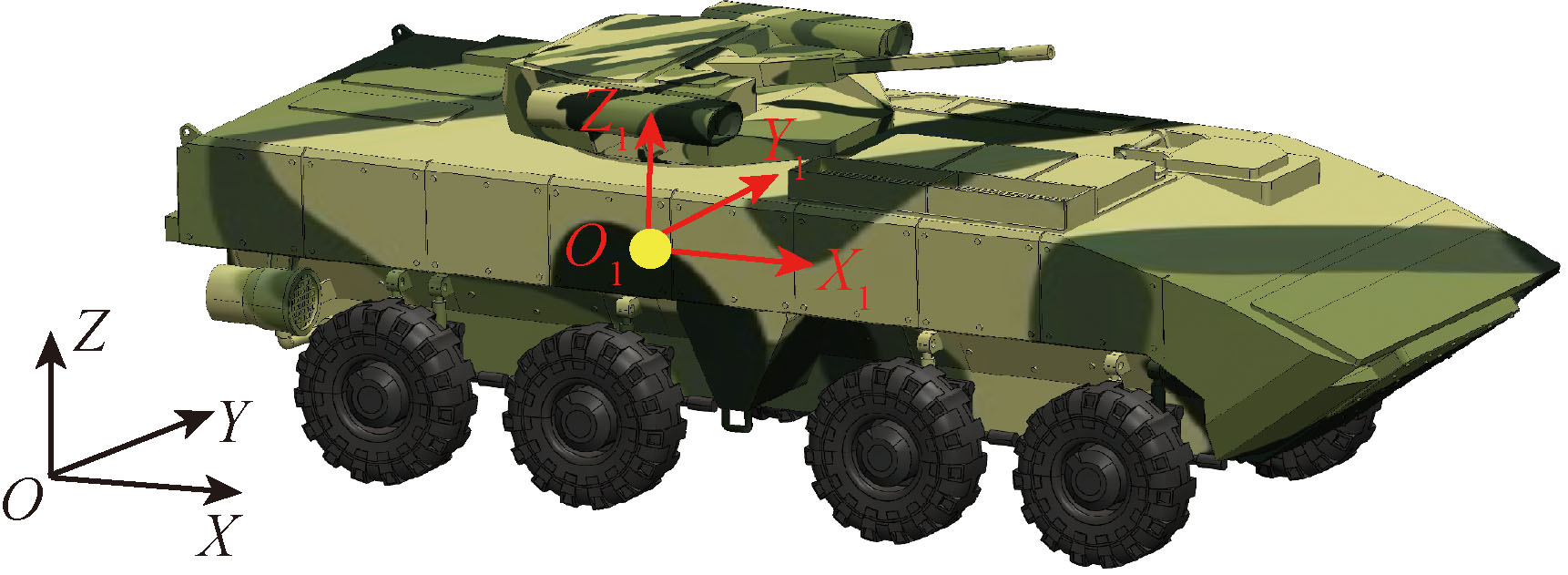

图2 8×8轮式车辆模型示意图

Fig.2 Schematic diagram of 8×8 wheeled vehicle model

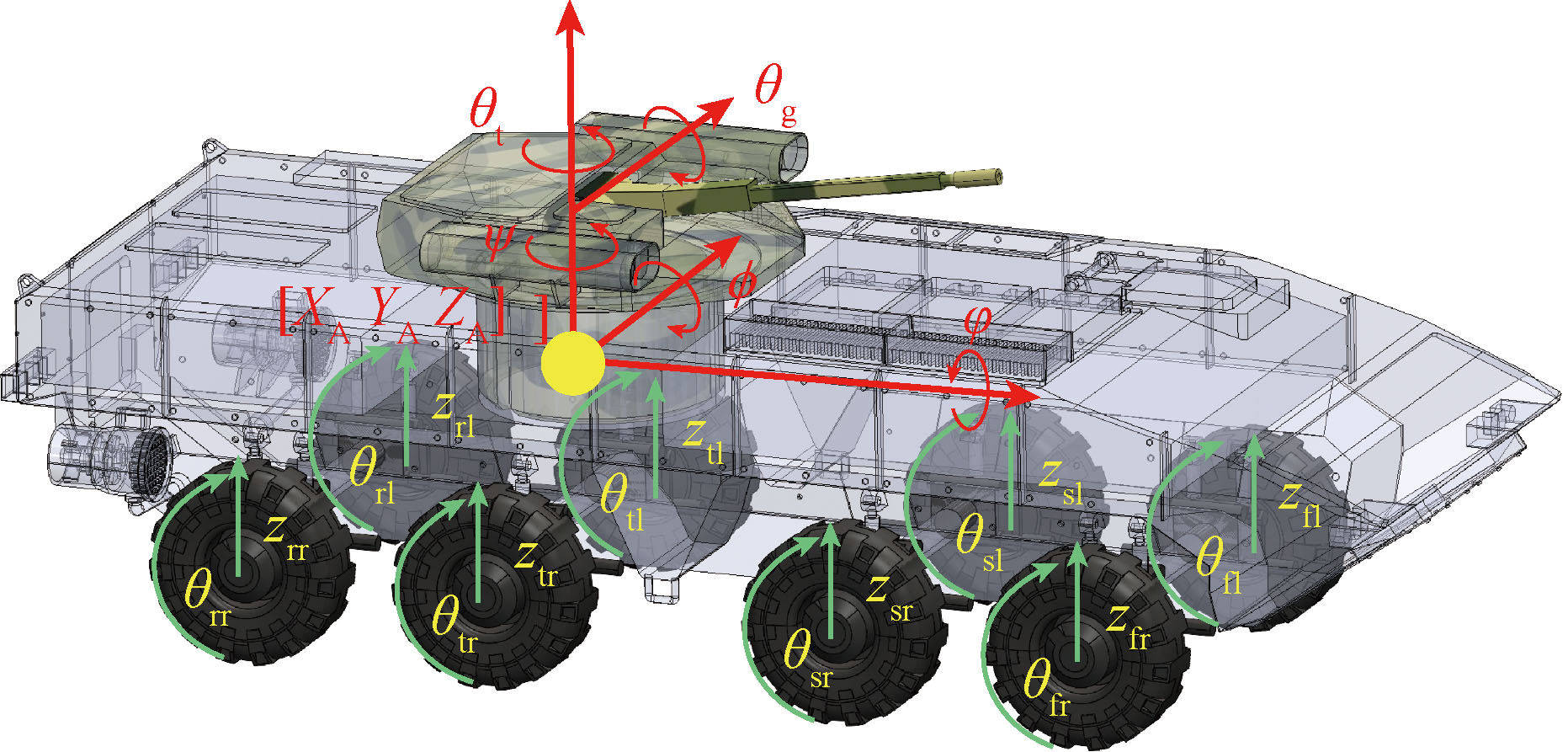

图3 8×8轮式车辆自由度示意图

Fig.3 Diagrammatic sketch of 8×8 wheeled vehicle's degree of freedoms

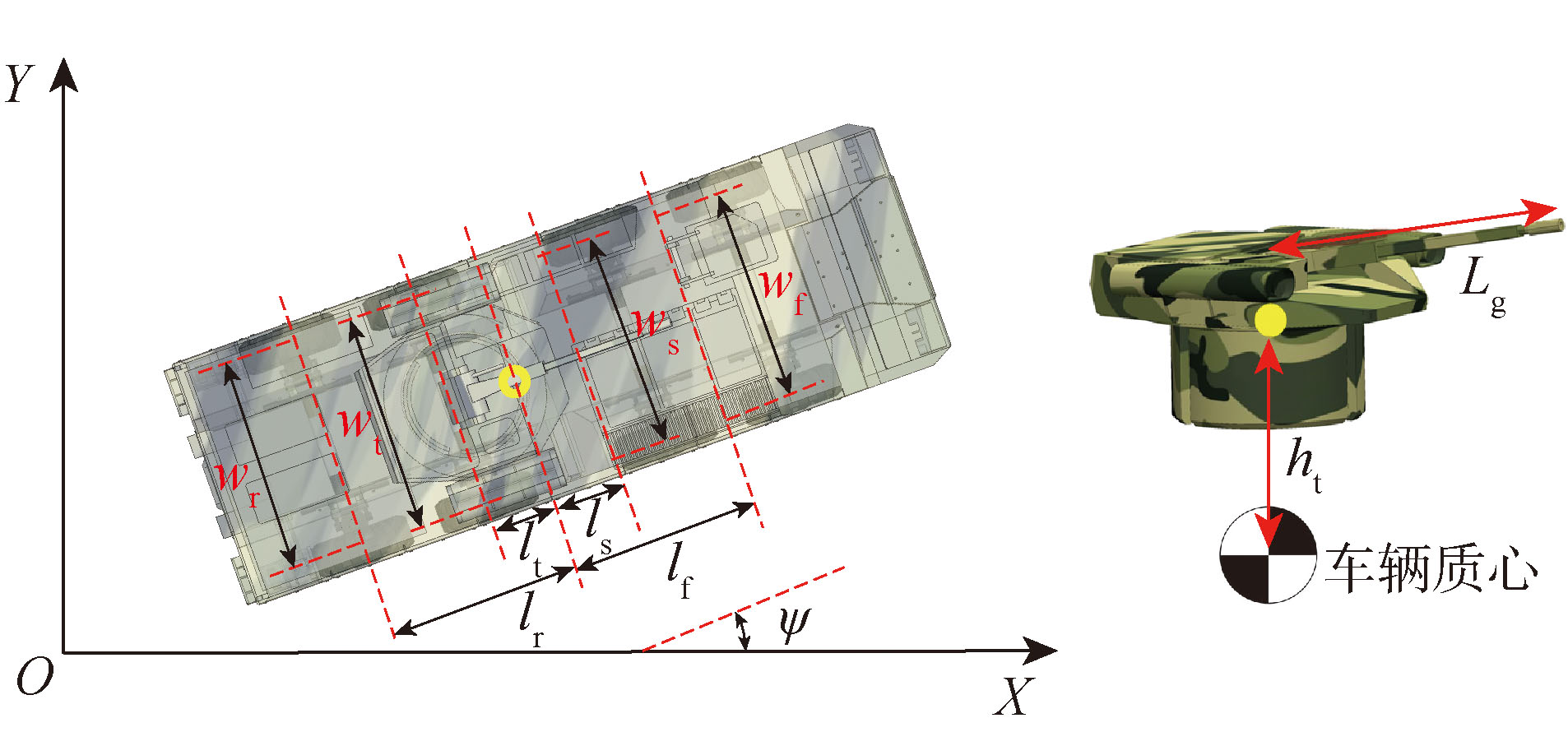

图4 8×8轮式车辆几何参数(左为车体几何参数, 右为炮塔几何参数)

Fig.4 Geometric parameters of 8×8 wheeled vehicle on X-Y plane(the left:the geometric parameters of vehicle body, and the right:the geometric parameters of turret)

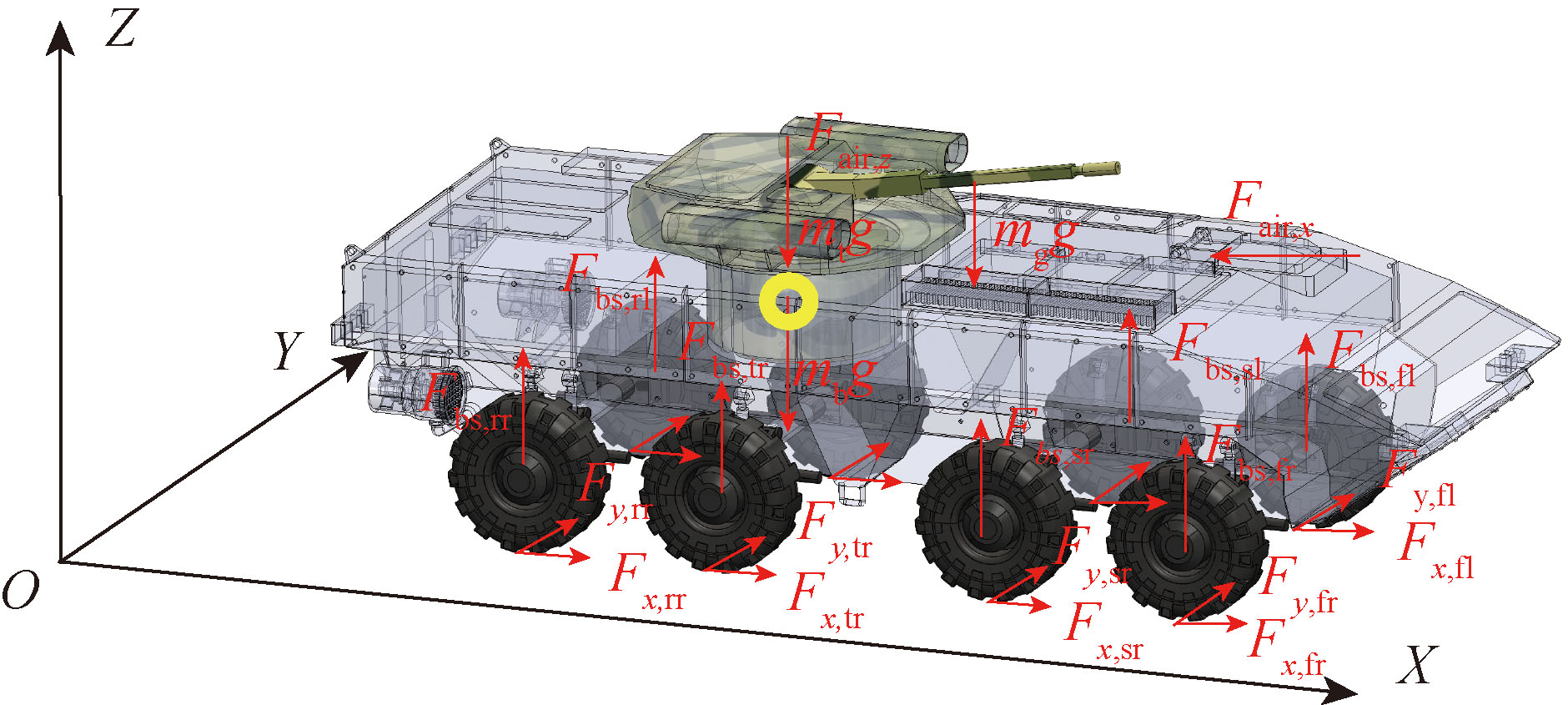

图5 车辆受力

Fig.5 Forces and torques applied on the vehicle

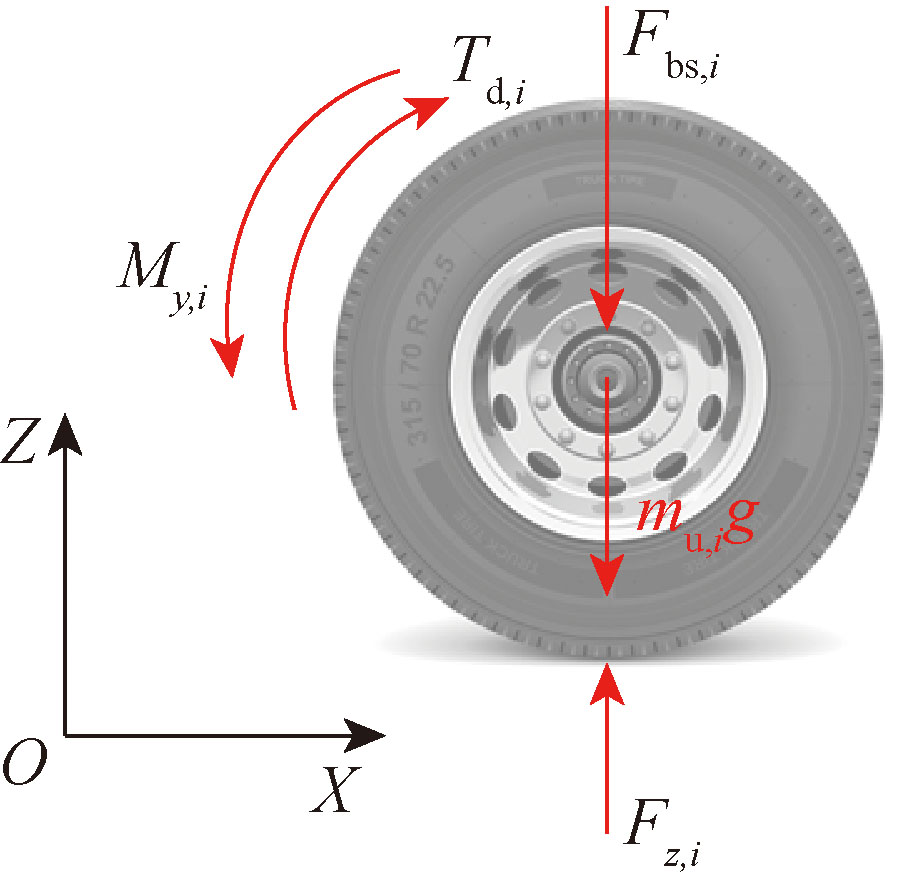

图6 簧下质量所受力与力矩

Fig.6 Force and torque applied on the unsprung mass

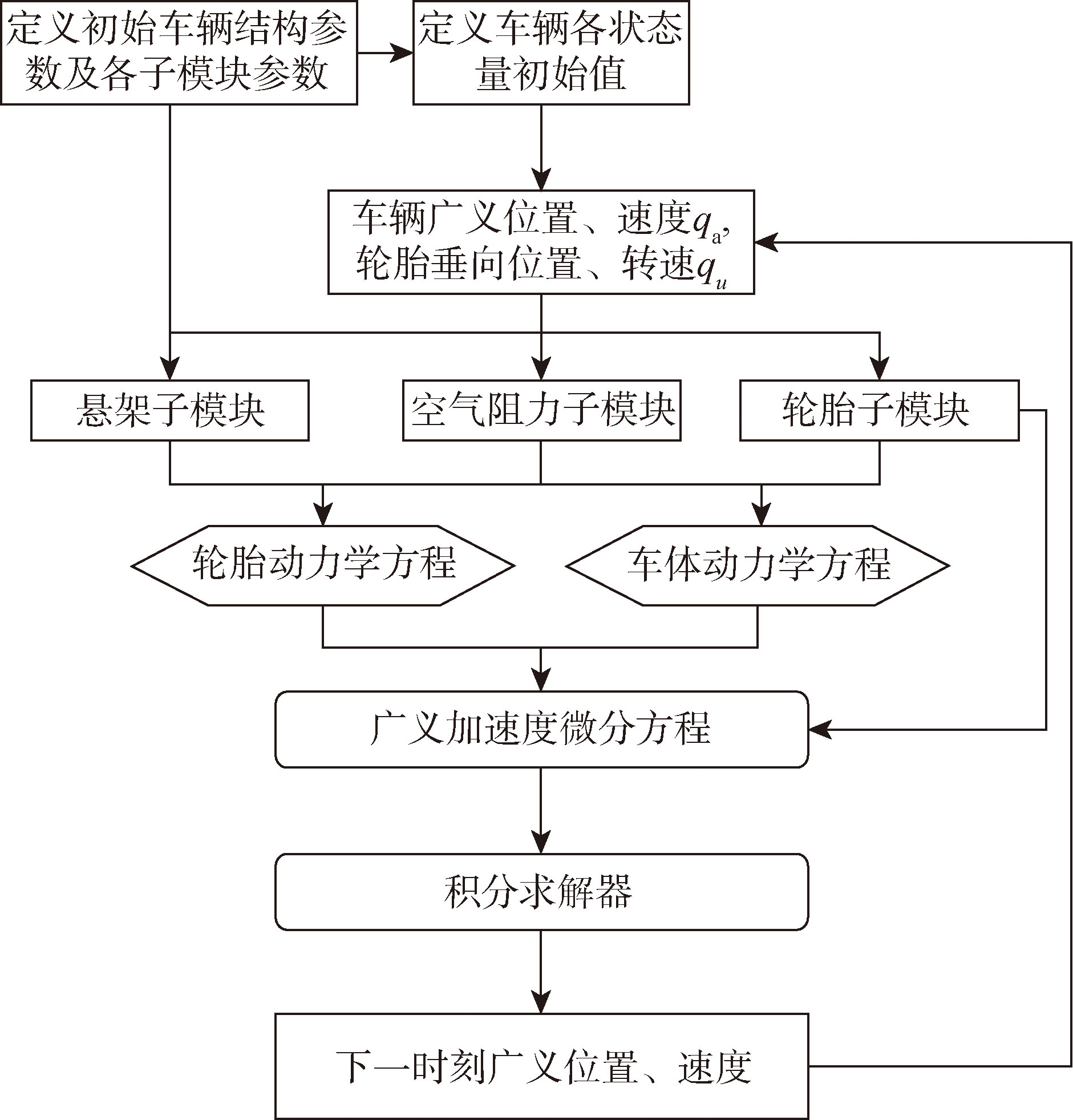

图7 车辆模型解算流程图

Fig.7 Flowchart of vehicle model solving

表1 纵向变加速误差分析

Table 1 Longitudinal variable acceleration error

参数	最大绝对值误差	误差均方根
纵向速度/(m·s^-1)	9.68×10^-4	7.96×10^-4
垂向速度/(m·s^-1)	5.92×10^-4	7.42×10^-5
纵向位移/m	1.74×10^-2	1.33×10^-2
纵向加速度/(m·s^-2)	8.74×10^-2	4.80×10^-3
俯仰角速度/(rad·s^-1)	3.00×10^-3	2.19×10^-4

表2 转角阶跃输入工况误差分析

Table 2 Step steering maneuver error

参数	最大绝对值误差	误差均方根
纵向位移/m	7.95×10^-2	4.3×10^-2
纵向速度/(m·s^-1)	2.64×10^-2	9.3×10^-3
横向位移/m	9.70×10^-2	5.36×10^-2
横向速度/(m·s^-1)	1.46×10^-1	3.79×10^-2

表3 双移线工况误差分析

Table 3 Double lane change maneuver error

参数	最大绝对值误差	误差均方根
纵向位移/m	2.89×10^-1	1.21×10^-1
纵向速度/(m·s^-1)	6.35×10^-2	2.78×10^-2
横向位移/m	1.38×10^-1	6.41×10^-2
横向速度/(m·s^-1)	2.24×10^-1	7.58×10^-2

表4 sin转角工况误差分析

Table 4 Swept sine steering maneuver error

类别	最大绝对值误差	误差均方根
纵向位移/m	4.66×10^-1	2.18×10^-1
纵向速度/(m·s^-1)	4.17×10^-2	2.68×10^-2
横向位移/m	7.19×10^-2	4.17×10^-2
横向速度/(m·s^-1)	1.2×10^-1	6.2×10^-2

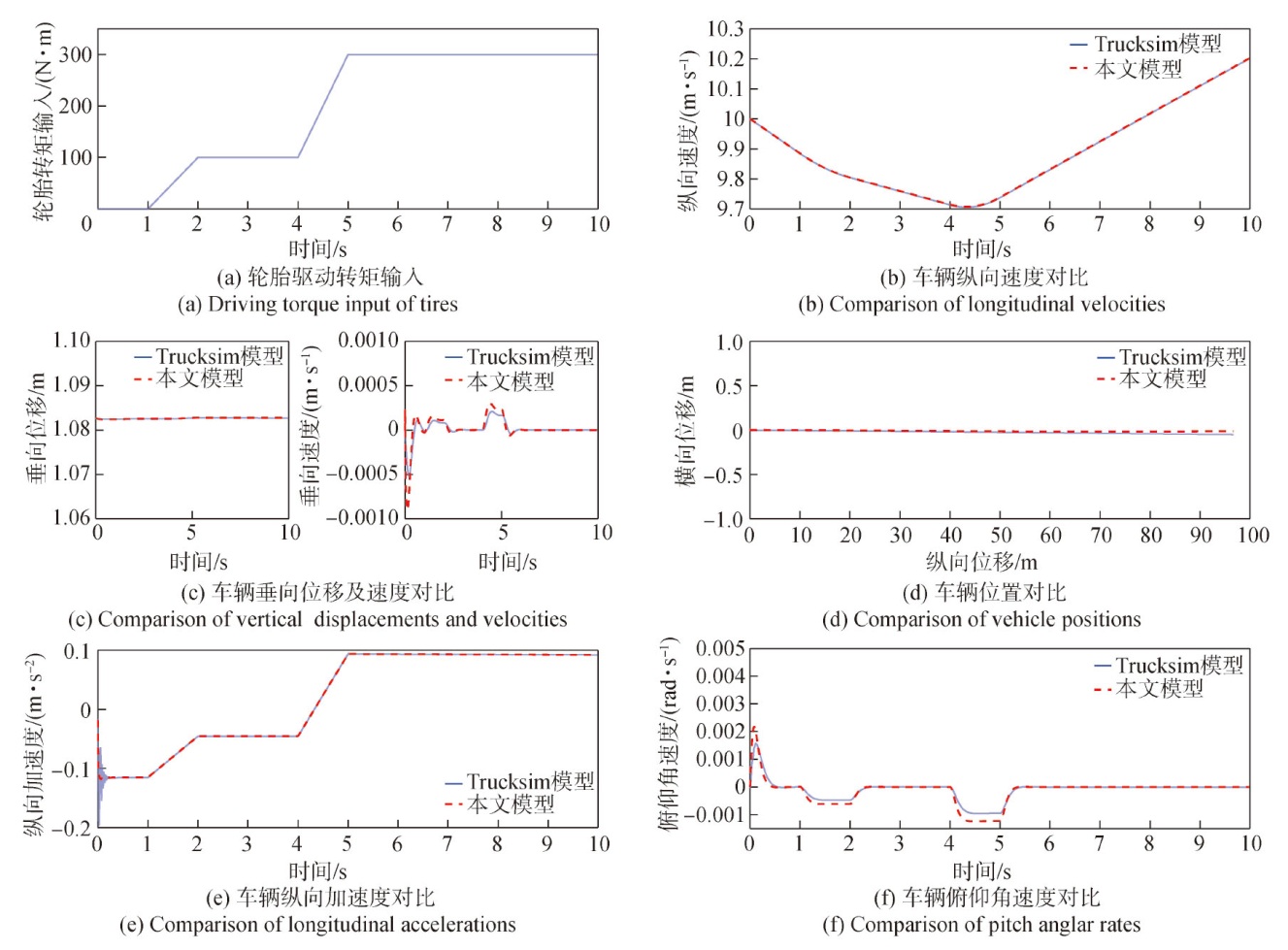

图8 车辆变加速运动对比结果

Fig.8 Comparison results of variable accelerations

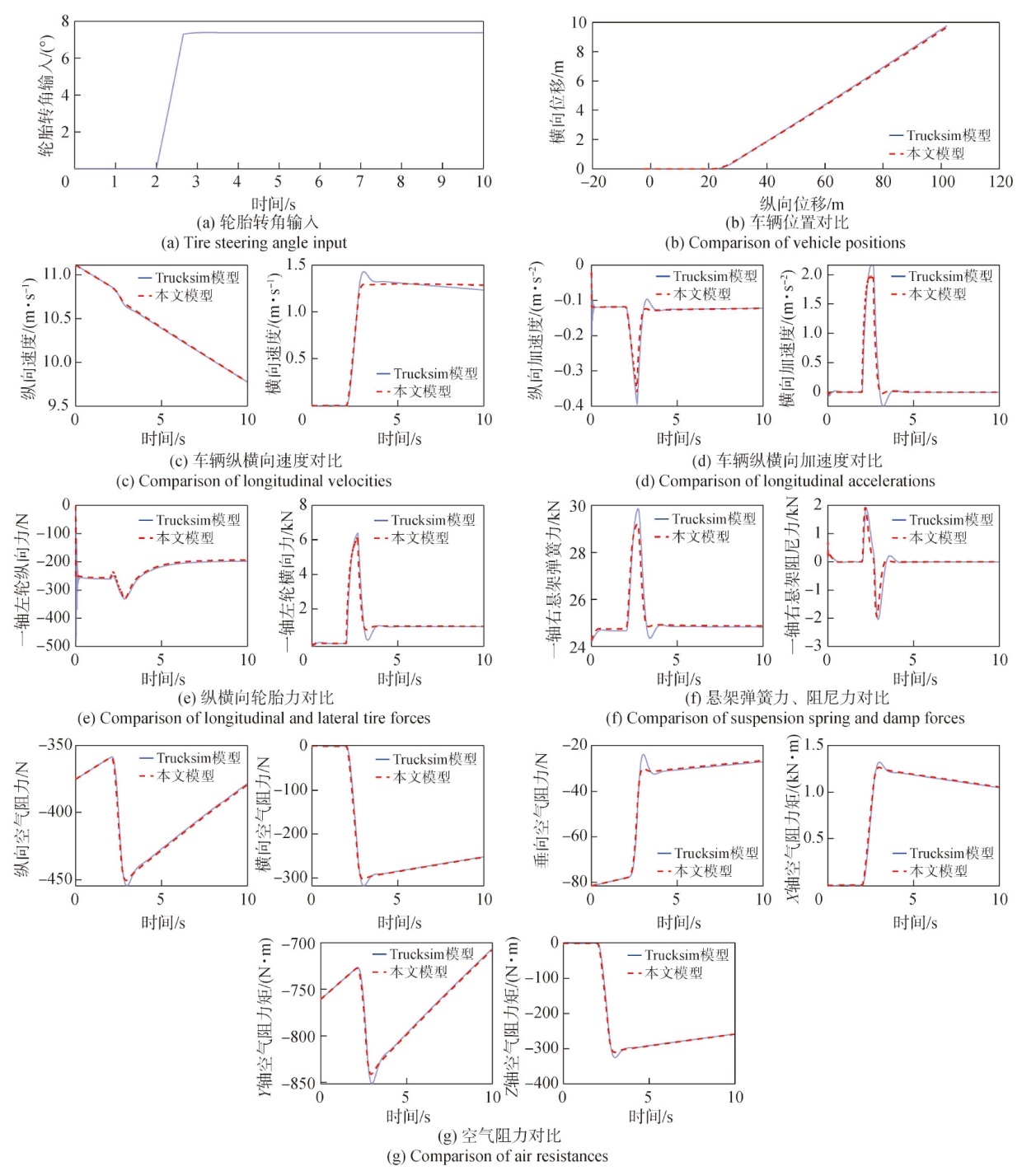

图9 轮胎转角阶跃输入工况对比结果

Fig.9 Comparison results of step steer

图10 整车双移线工况对比结果

Fig.10 Compared results of double lane change

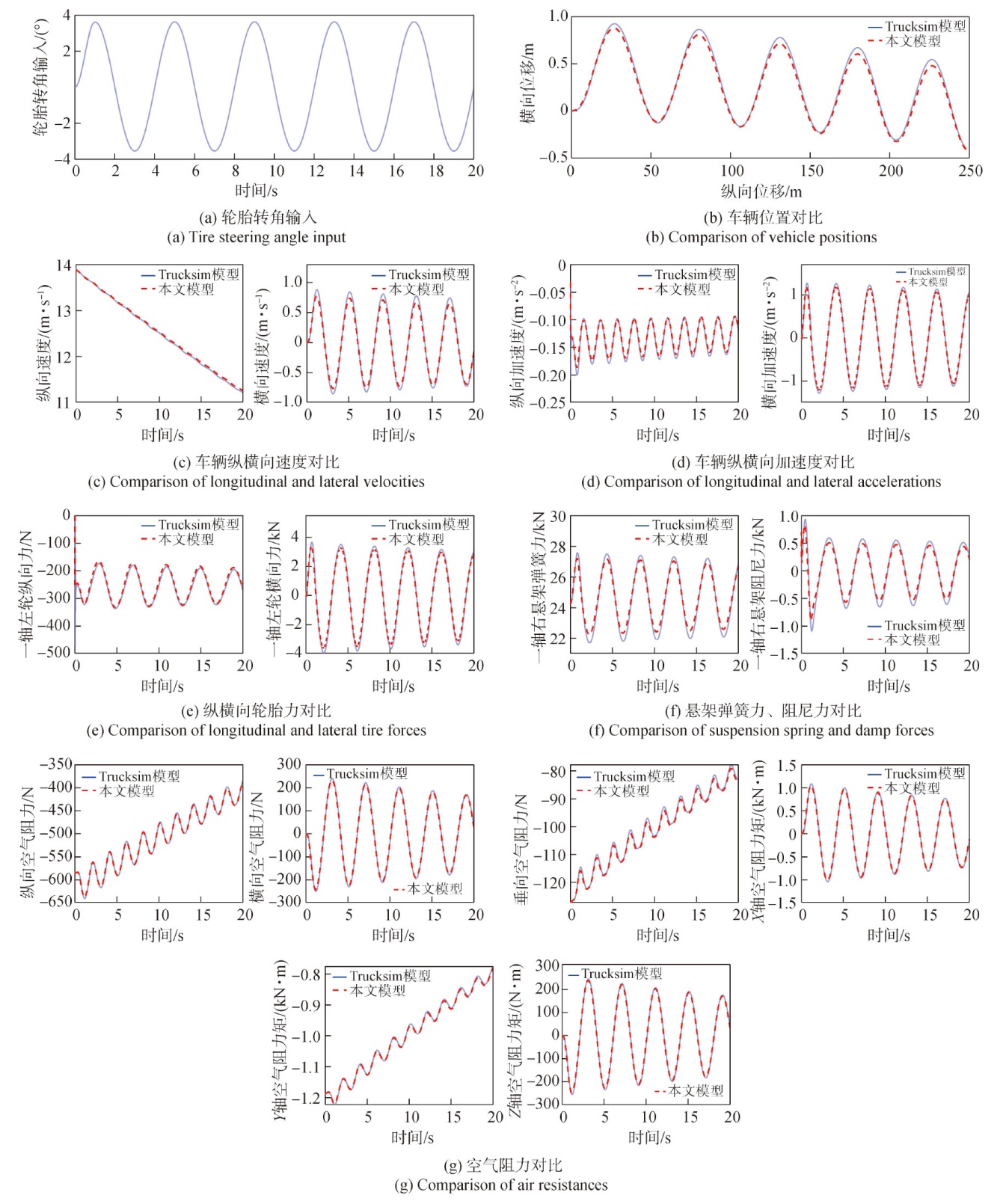

图11 轮胎sin转角工况对比结果

Fig.11 Compared results of sin steer
