船用螺旋桨静态声散射预报方法及特性

doi:10.12382/bgxb.2023.0017

摘要/Abstract

摘要：

针对螺旋桨静态声散射特性预报问题,采用分层介质声传播理论与离散面元厚度信息相结合的板块元算法,建立变厚度曲面薄板目标声散射特性预报方法。基于面元厚度及材料属性信息求解所有面元的反射系数,进而求得目标的总散射声场。为了提高计算效率,通过单片桨叶网格拓扑克隆的方式实现完整螺旋桨的散射声场预报,并通过有限元和静态声散射特性湖上试验对新的预报方法的准确性进行了验证。研究结果表明:螺旋桨目标强度的频响特性、角度-距离谱以及空间指向性预报值与测试值基本一致。研究结果对水下航行器艉向附近的声散射特性预报具有一定的参考价值。

关键词: 螺旋桨, 板块元方法, 声散射特性, 目标强度

Abstract:

For the prediction problem of static acoustic scattering characteristics of propellers, a planar element method combining the layered medium acoustic propagation theory and the discrete surface element thickness information is used to establish a prediction method for the acoustic scattering characteristics of thin plate targets with variable thickness surfaces.The basic idea is to solve the reflection coefficients of all surface elements based on the thickness of surface elements and material property information, and then obtain the total scattered acoustic field of the target. Considering the computational efficiency, the scattered sound field of a complete propeller is predicted by means of mesh topology clone from a single propeller blade. The results show that the predicted values of the frequency response characteristics, angle-distance spectrum and spatial directivity of propeller target strength are in general agreement with the experimental results. This study may be useful for the prediction of acoustic scattering characteristics near the stern of underwater vehicles.

Key words: propeller, planar element method, acoustic scattering characteristic, target strength

中图分类号:

TB566

柯慧程, 彭子龙, 周富霖, 陈添宝. 船用螺旋桨静态声散射预报方法及特性[J]. 兵工学报, 2024, 45(5): 1523-1533.

KE Huicheng, PENG Zilong, ZHOU Fulin, CHEN Tianbao. Prediction Method and Characteristics of Static Acoustic Scattering from Marine Propellers[J]. Acta Armamentarii, 2024, 45(5): 1523-1533.

图/表 21

图1 Kirchhoff近似声散射计算示意图

Fig.1 Schematic diagram of Kirchhoff approximate acoustic scattering calculation

图2 置于流体介质无限大弹性板声传播示意图

Fig.2 Propagation of sound in fluid medium infinitely large elastic plate

图3 面元厚度判定方法

Fig.3 Planar elements thickness determination method

图4 网格克隆拓扑方法(左为拓扑过程,右为拓扑后网格)

Fig.4 Mesh cloning topology method(left:topological process, right: mesh after topology)

表1 试验螺旋桨基本参数

Table 1 Propeller model basic parameters

参数	取值
梢圆半径/mm	261.5
盘面比	0.507
叶片数	3
螺旋桨后倾角/(°)	0
毂径形状	直线型
桨毂内径/mm	67
桨毂外径/mm	81

图5 螺旋桨模型示意图

Fig.5 Schematic diagram of propeller model

图6 螺旋桨单片桨叶结构

Fig.6 Single propeller blade structure

表2 单片桨叶切面轮廓尺寸

Table 2 Cut-out profile dimensions of singlepropeller paddle

r/R	母线到导边距离/mm	切面弦长/ mm	切面周长/ mm	最大切面厚度/mm
0.2	67.58	135.16	274.41	7.55
0.3	82.27	164.53	332.93	6.45
0.4	97.76	195.51	394.77	5.54
0.5	109.13	218.25	440.80	4.80
0.6	113.25	226.50	458.10	4.20
0.7	110.15	220.30	446.24	3.69
0.8	98.56	197.12	401.30	3.23
0.9	74.26	148.51	302.45	2.80
0.95	52.71	105.42	215.95	2.58
1.0				2.00

表3 单片桨叶部分参数

Table 3 Parameters for parametric modelling of single propeller blade dimensions

参数	数值
a_max/mm	206
c₁/mm	10
c₂/mm	2
d₁/mm	88

图7 单片桨叶声散射特性计算模型

Fig.7 Calculation model of acoustic scattering characteristics of single propeller blade

图8 单片桨叶多种声散射计算方式对比(0°入射)

Fig.8 Comparison of multiple scattering calculations for a single propeller blade (0° incidence)

图9 单片桨叶目标强度对比

Fig.9 Comparison of single propeller blade target strengths

图10 单片桨叶前向散射目标强度对比(θ=-45°~45°)

Fig.10 Comparison of forward scattering target strengths of single propeller blade (θ=-45°~45°)

表4 目标强度计算所需时间对比

Table 4 Target strength calculation time comparison

全向散射和前向散射	有限元和板块元	网格单元数	网格节点数	计算时间/ s
全向散射	有限元	192303	41910	2150.5
	板块元	22396	11200	393.15
前向散射	有限元	192303	41910	2034.1
	板块元	22396	11200	394.64

图11 螺旋桨目标强度对比

Fig.11 Comparison of propeller target strengths

表5 目标强度计算所需时间对比

Table 5 Target strength calculation time comparison

有限元和板块元	网格单元数	网格节点数	计算时间/s
有限元	1503875	292033	16069.8
板块元	80867	40645	877.7

图12 螺旋桨回声强度角度-时域谱

Fig.12 Propeller echo strength angle-time nephogram

图13 试验螺旋桨模型

Fig.13 Experimental propeller model

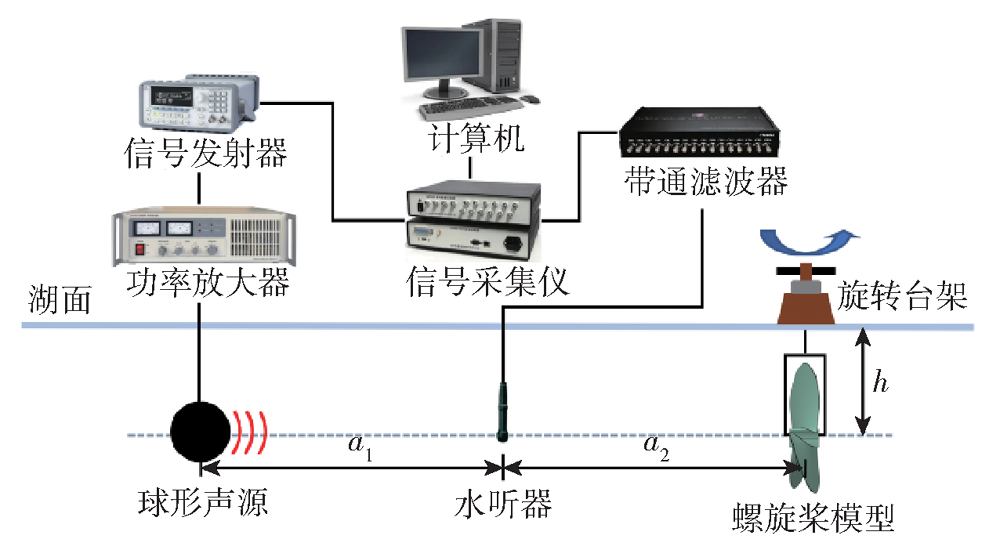

图14 试验系统布放图

Fig.14 Layout of experimental systems

图15 实测模型时域下回声强度角度-时域谱

Fig.15 Echo strength angle-time nephogram of experimental models

图16 螺旋桨目标强度指向性对比结果

Fig.16 Comparison of propeller target strength directivity
