智能无人车辆混合储能系统选配与参数优化

doi:10.12382/bgxb.2022.1074

摘要/Abstract

摘要：

面对迅猛发展的智能无人车辆及其多任务载荷用电和复杂行驶工况的大功率充放电性能要求,需要新型的储能系统方案来解决现有单一类型储能系统难以适应的问题。基于无人车辆动力性、静音里程等功率与能量性能约束,提出一种以轻量化为目标的混合储能系统(HESS)参数匹配优化方法,以实现储能系统输入输出能力与系统质量的平衡。根据无人车辆对储能系统的基本要求与不同拓扑结构特点,选配最优构型方案;基于车辆性能指标要求进行储能系统匹配计算,优化系统参数,以充分发挥HESS优势。研究结果表明:HESS能够有效减小动力电池大电流的冲击,延长电池使用寿命;新的优化方法可以有效降低能源系统的质量,提升车辆综合性能。

关键词: 智能无人车辆, 混合储能系统, 拓扑结构, 参数匹配优化

Abstract:

The rapid development of intelligent unmanned vehicles and their power demands for multi-task loads, along with high-power charging and discharging requirements under complex driving conditions, call for new energy storage system schemes that address the shortcomings of existing single-type energy storage systems. Based on the performance constraints of intelligent unmanned vehicle, such as power performance and silent mileage, a parameter matching optimization method for hybrid energy storage system (HESS) with a focus on lightweight design is proposed to achieve a balance between the input and output capacity of the energy storage system and the overall system quality. By analyzing the basic requirements of unmanned vehicles for energy storage system and the characteristics of different topological structures, the optimal configuration is selected. Based on the requirements of vehicle performance indicators, the energy storage system matching calculation is carried out, and the system parameters are optimized to give full play to the advantages of the hybrid system. The results show that HESS can effectively reduce the high current impact of the power battery and prolong its service life. Meanwhile, the optimization method can effectively reduce the weight of the energy system and improve the comprehensive performance of the vehicle.

Key words: intelligent unmanned vehicle, hybrid energy storage system, topology structure, parameter matching optimization

中图分类号:

TM912

何强, 刘后刚, 邹波, 吕布, 陈续麟, 段昱. 智能无人车辆混合储能系统选配与参数优化[J]. 兵工学报, 2023, 44(9): 2791-2801.

HE Qiang, LIU Hougang, ZOU Bo, LÜ Bu, CHEN Xulin, DUAN Yu. Selection and Parameter Optimization of Hybrid Energy Storage System for Intelligent Unmanned Vehicles[J]. Acta Armamentarii, 2023, 44(9): 2791-2801.

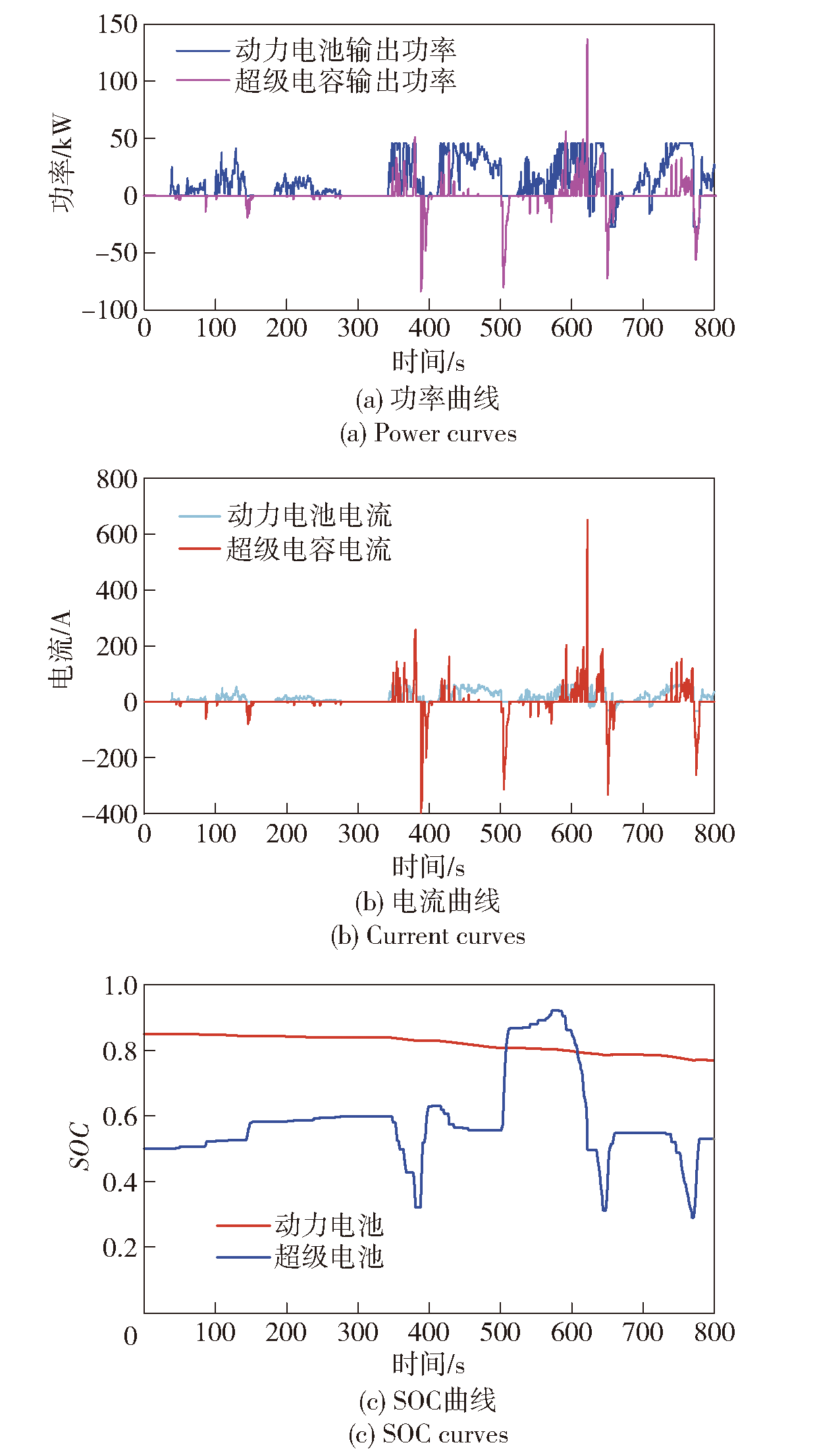

图/表 16

参考文献 35

[1]	ZHU T, WILLS R G A, LOT R, et al. Optimal sizing and sensitivity analysis of a battery-supercapacitor energy storage system for electric vehicles[J]. Energy, 2021, 221:1-14.
[2]	KOUCHACHVILI L, YAICI W, ENTCHEV E. Hybrid battery/supercapacitor energy storage system for the electric vehicles[J]. Journal of Power Sources, 2018, 374:237-248. doi: 10.1016/j.jpowsour.2017.11.040 URL
[3]	李嘉麒, 魏曙光, 廖自力, 等. 陆战平台全电化关键技术发展综述[J]. 兵工学报, 2021, 42(10): 2049-2059. doi: 10.3969/j.issn.1000-1093.2021.10.001
	LI J Q, WEI S G, LIAO Z L, et al. Review on the key technologies and development of all-electric land warfare platform[J]. Acta Armamentarii, 2021, 42(10):2049-2059. (in Chinese) doi: 10.3969/j.issn.1000-1093.2021.10.001
[4]	廖自力, 疏歆, 高强, 等. 电传动装甲车辆母线电压双通道补偿控制[J]. 兵工学报, 2021, 42(10): 2082-2091. doi: 10.3969/j.issn.1000-1093.2021.10.004
	LIAO Z L, SHU X, GAO Q, et al. Double channel compensation control of bus voltage for armored vehicle electric transmission[J]. Acta Armamentarii, 2021, 42(10): 2082-2091. (in Chinese)
[5]	SONG Z Y, HOFMANN H, LI J Q, et al. Optimization for a hybrid energy storage system in electric vehicles using dynamic programing approach[J]. Applied Energy, 2015, 139:151-162. doi: 10.1016/j.apenergy.2014.11.020 URL
[6]	ZHOU S Y, CHEN Z Q, HUANG D Y, et al. Model prediction and rule based energy management strategy for a plug-in hybrid electric vehicle with hybrid energy storage system[J]. IEEE Transactions on Power Electronics, 2020, 36(5): 5926-5940. doi: 10.1109/TPEL.63 URL
[7]	WANG Y J, WANG L, LI M C, et al. A review of key issues for control and management in battery and ultra-capacitor hybrid energy storage systems[J]. eTransportation, 2020, 4: 1-12.
[8]	林苗. 超级电容与锂电池混合动力系统能量控制研究及实现[D]. 武汉: 武汉理工大学, 2014.
	LIN M. Energy control research and implementation for hybrid power system of the super capacitor and lithium battery[D]. Wuhan: Wuhan University of Technology, 2014. (in Chinese)
[9]	刘维杰. 纯电动客车复合储能系统控制策略及其优化[D]. 哈尔滨: 哈尔滨理工大学, 2021.
	LIU W J. Research on control strategy and optimization of compound energy storage system for pure electric bus[D]. Harbin: Harbin University of Science and Technology, 2021. (in Chinese)
[10]	BAI Y F, LI J W, HE H W, et al. Optimal design of a hybrid energy storage system in a Plug-In Hybrid Electric Vehicle for battery lifetime improvement[J]. IEEE Access, 2020(8): 142148-142158.
[11]	张卫, 杨珏, 张文明, 等. 纯电动矿车复合能源系统研究[J]. 汽车工程, 2019, 41(6):641-646.
	ZHANG W, YANG J, ZHANG W M, et al. A research on hybrid energy storage system for battery electric mining trucks[J]. Automotive Engineering, 2019, 41(6): 641-646. (in Chinese)
[12]	肖军. 纯电动汽车混合储能系统参数匹配及控制策略研究[D]. 重庆: 重庆大学, 2015.
	XIAO J. Parameters design and control strategy of hybrid energy storage system for pure electric vehicle[D]. Chongqing: Chongqing University, 2015. (in Chinese)
[13]	SONG Z Y, HOFMANN H, LI J Q, et al. Energy management strategies comparison for electric vehicles with hybrid energy storage system[J]. Applied Energy, 2014, 134(Dec. 1): 321-331.
[14]	ZHANG L, HU X S, WANG Z P, et al. Multi-objective optimal sizing of hybrid energy storage system for electric vehicles[J]. IEEE Transactions on Vehicular Technology, 2018, 67(2): 1027-1035. doi: 10.1109/TVT.2017.2762368 URL
[15]	ELDEEB H H, ELSAYED A T, LASHWAY C R, et al. Hybrid energy storage sizing and power splitting optimization for plug-in electric vehicles[J]. IEEE Transactions on Industry Applications, 2019, 55(3): 2252-2262. doi: 10.1109/TIA.28 URL
[16]	SHEN J Y, DUSMEZ S, KHALIGH A. Optimization of sizing and battery cycle life in battery/ultracapacitor hybrid energy storage systems for electric vehicle applications[J]. IEEE Transactions on Industrial Informatics, 2014, 10(4):2112-2121. doi: 10.1109/TII.2014.2334233 URL
[17]	MESBAHI T, KHENFRI F, RIZOUG N, et al. Combined optimal sizing and control of Li-Ion battery/supercapacitor embedded power supply using hybrid particle Swarm-Nelder-Mead algorithm[J]. IEEE Transactions on Sustainable Energy, 2017, 8(1):59-73. doi: 10.1109/TSTE.2016.2582927 URL
[18]	刘佳骏. 锂电池和超级电容混合储能系统的最优设计与控制[D]. 北京: 北京科技大学, 2018.
	LIU J J. Optimal design and control of Li-battery/ ultracapacitor hybrid energy storage system[D]. Beijing: University of Science and Technology Beijing, 2018. (in Chinese)
[19]	刘畅. 锂电池与超级电容混合储能系统的优化配置与能量管理[D]. 合肥: 中国科学技术大学, 2020.
	LIU C. The configuration optimization and energy management for Li-ion battery/ultracapacitor hybrid energy storage system[D]. Hefei: University of Science and Technology of China, 2020. (in Chinese)
[20]	ZHOU T P, SUN W. Optimization of battery-supercapacitor hybrid energy storage station in wind/solar generation system[J]. IEEE Transactions on Sustainable Energy, 2014, 5(2): 408-415. doi: 10.1109/TSTE.2013.2288804 URL
[21]	CHEN H, ZHANG Z H, GUAN C, et al. Optimization of sizing and frequency control in battery/supercapacitor hybrid energy storage system for fuel cell ship[J]. Energy, 2020, 197:117285. doi: 10.1016/j.energy.2020.117285 URL
[22]	王言子. 车用复合储能装置的设计与功率分配策略研究[D]. 北京: 北京理工大学, 2016.
	WANG Y Z. Research on design and power split strategies of hybrid energy storage system in vehicle[D]. Beijing: Beijing Institute of Technology, 2016. (in Chinese)
[23]	徐瑞阳. 纯电动汽车复合电源储能系统的研究[D]. 天津: 天津理工大学, 2018.
	XU R Y. Research on electric vehicle of hybrid power storage system[D]. Tianjin: Tianjin University of Technology, 2018. (in Chinese)
[24]	宋子由. 客车用锂电池/超级电容混合储能系统的优化与控制[D]. 北京: 清华大学, 2016.
	SONG Z Y. The optimization and control of Li-battery/supercapacitor hybrid energy storage system for bus[D]. Beijing: Tsinghua University, 2016. (in Chinese)
[25]	李逢兵. 含锂电池和超级电容混合储能系统的控制与优化研究[D]. 重庆: 重庆大学, 2015.
	LI F B. Control and optimization of hybrid energy storage systems containing Lithium-ion batteries and super-capacitors[D]. Chongqing: Chongqing University, 2015. (in Chinese)
[26]	KIM J, CHO B H. State-of-charge estimation and State-of-Health prediction of a Li-Ion degraded battery based on an EKF combined with a per-unit system[J]. IEEE Transactions on Vehicular Technology, 2011, 60(9): 4249-4260. doi: 10.1109/TVT.2011.2168987 URL
[27]	程民. 电动汽车混合储能系统能量管理策略研究[D]. 合肥: 安徽大学, 2021.
	CHENG M. Research on energy management strategy of composite energy storage system for electric vehicle[D]. Hefei: Anhui University, 2021. (in Chinese)
[28]	黄智奇. 电动汽车复合能源系统的研究[D]. 杭州: 浙江大学, 2016.
	HUANG Z Q. Research on hybrid power system of electric vehicle[D]. Hangzhou: Zhejiang University, 2016. (in Chinese)
[29]	黄峰, 黄鹏, 王亚洲. 超级电容的选用及其常见应用电路性能比较[J]. 科技创新与应用, 2020(15): 67-68.
	HUANG F, HUANG P, WANG Y Z. Selection of super capacitors and comparison of their common application circuits[J]. Technology Innovation and Application, 2020(15): 67-68. (in Chinese)
[30]	PAN C F, LIANG Y Y, CHEN L, et al. Optimal control for hybrid energy storage electric vehicle to achieve energy saving using dynamic programming approach[J]. Energies, 2019, 12(4): 1-19. doi: 10.3390/en12010001 URL
[31]	胡建军, 郑勇, 胡志华, 等. 纯电动汽车混合储能系统参数匹配及控制策略[J]. 中国公路学报, 2018, 31(3): 142-150.
	HU J J, ZHENG Y, HU Z H, et al. Parameter matching and control strategies of hybrid energy storage system for pure electric vehicle[J]. China Journal of Highway and Transport, 2018, 31(3): 142-150. (in Chinese)
[32]	刘钊, 蒋进科. 增程式电动客车混合储能系统参数匹配[J]. 客车技术与研究, 2020, 42(6): 11-14.
	LIU Z, JIANG J K. Parameters match of hybrid energy storage system for an extended-range electric bus[J]. Bus & Coach Technology and Research, 2020, 42(6): 11-14. (in Chinese)
[33]	汤亚平. 双电机四驱汽车驱动与制动控制策略研究[D]. 哈尔滨: 东北林业大学, 2019.
	TANG Y P. Research on driving and braking control strategy of dual motor four-wheel drive vehicle[D]. Harbin: Northeast Forestry University, 2019. (in Chinese)
[34]	马晓军, 袁东, 项宇, 等. 陆战平台综合电力系统及其关键技术研究[J]. 兵工学报, 2017, 38(2):396-406. doi: 10.3969/j.issn.1000-1093.2017.02.026
	MA X J, YUAN D, XIANG Y, et al. Research on integrated power system and its key techniques of ground combat platform[J]. Acta Armamentarii, 2017, 38(2): 396-406. (in Chinese)
[35]	张卫, 杨珏, 张文明, 等. 纯电动汽车蓄电池-超级电容复合能源系统研究[J]. 电测与仪表, 2019, 56(3): 82-90.
	ZHANG W, YANG J, ZHANG W M, et al. Research on battery-supercapacitor hybrid energy system for pure electric vehicle[J]. Electrical Measurement & Instrumentation, 2019, 56(3): 82-90. (in Chinese)

参数	电池类型
参数	铅酸电池	镍氢电池	锂离子电池
比功率/(W·kg^-1)	150~400	200~400	250~450
比能量/(Wh·kg^-1)	30~50	65~120	120~300
循环寿命/次	400~600	600~1200	1000~2000
使用温度/℃	-20~40	-20~50	-25~60
成本	低	高	较高
环保性	差	较好	较好

参数	电池类型
参数	铅酸电池	镍氢电池	锂离子电池
比功率/(W·kg^-1)	150~400	200~400	250~450
比能量/(Wh·kg^-1)	30~50	65~120	120~300
循环寿命/次	400~600	600~1200	1000~2000
使用温度/℃	-20~40	-20~50	-25~60
成本	低	高	较高
环保性	差	较好	较好

参数	超级电容种类
参数	法拉第准电容	双电层电容	混合电容
电极材料	金属氧化物	活性炭	金属氧化物/碳
比功率/(W·kg^-1)	1000~2000	1000~3000	1000~2000
比能量/(Wh·kg^-1)	10~15	5~7	10~12
循环寿命/次	≥1000000	≥1000000	≥1000000
成本	高	较高	较高

参数	超级电容种类
参数	法拉第准电容	双电层电容	混合电容
电极材料	金属氧化物	活性炭	金属氧化物/碳
比功率/(W·kg^-1)	1000~2000	1000~3000	1000~2000
比能量/(Wh·kg^-1)	10~15	5~7	10~12
循环寿命/次	≥1000000	≥1000000	≥1000000
成本	高	较高	较高

指标	数值
最高车速/(km·h^-1)	90
0~60km/h的加速时间/s	9
最大爬坡度/%	60
最大爬坡时爬坡车速/(km·h^-1)	15
越野时车速/(km·h^-1)	30
30km/h等速纯电续驶里程/km	25
CHTC循环工况续驶里程/km	20
