多特征下室内声源定位的复合模型粒子滤波

doi:10.12382/bgxb.2022.0849

摘要/Abstract

摘要：

为提高混响噪声下声源定位的精度和稳健性,提出多特征复合模型粒子滤波算法。该算法以麦克风接收信号的多特征构建似然函数,采用卷积神经网络提取多假设时延估计图像的深度特征,建立基于支持向量回归的时延估计模型;引入波束输出能量融合机制,弥补单特征不能同时抑制噪声和混响的缺陷。针对说话人运动随机性的问题建立声源跟踪的复合模型,改善说话人跟踪系统的鲁棒性。仿真和实测结果表明:在复合模型跟踪下,多特征算法比可控响应功率时延估计算法位置平均均方根误差减少83%以上;在多特征观测下,复合模型比郎之万模型和随机行走模型位置平均均方根误差减少46%以上;新算法实现了对复杂环境下随机运动声源的有效跟踪。

关键词: 室内声源定位, 多特征, 时延估计, 复合模型, 粒子滤波

Abstract:

A multi-feature-based composite model particle filter algorithm is proposed to improve the accuracy and robustness of sound source location in reverberation and noise environment. In this algorithm, the likelihood function of the particle filter is constructed based on the multiple features of signal received by a microphone, where the depth features of multiple hypothesis time-delay estimated image are extracted by convolutional neural network (CNN), and a time-delay estimation model based on support vector regression (SVR) is established. Furthermore, the deficiency that single feature can’t suppress noise and reverberation simultaneously is remedied by introducing the beam output energy fusion mechanism. For the randomness of speaker motion, a composite model for sound source tracking is established to improve the robustness of speaker tracking system. The simulated and experimental results show that, based on the composite model, the position average root mean square error (RMSE) of multi-feature algorithm is reduced by more than 83% compared with that of steered response power and time delay estimation (SRPTDE) algorithm, and under multi-feature observation, the position average RMSE of composite model is reduced by more than 46% compared with that of Langevin model and the random walking model. The proposed algorithm realizes the effective tracking of random moving sound sources in complex environment.

Key words: indoor sound source localization, multi-feature, time delay estimation, composite model, particle filter

中图分类号:

TN272

刘望生, 潘海鹏, 王明环. 多特征下室内声源定位的复合模型粒子滤波[J]. 兵工学报, 2024, 45(3): 975-985.

LIU Wangsheng, PAN Haipeng, WANG Minghuan. Composite Model Particle Filter for Indoor Sound Source Location Based on Multi-feature[J]. Acta Armamentarii, 2024, 45(3): 975-985.

图/表 13

表1 CNN结构

Table 1 CNN structure

网络层	网络参数
输入层	输入维数:28×28
卷积层H₁	卷积面个数:6;卷积核大小:5×5
池化层H₂	过滤器尺寸:2×2;滑动步长:2
卷积层H₃	卷积面个数:12;卷积核大小:5×5
池化层H₄	过滤器尺寸:2×2;滑动步长:2
全连接层H₅	输出维数:192×1

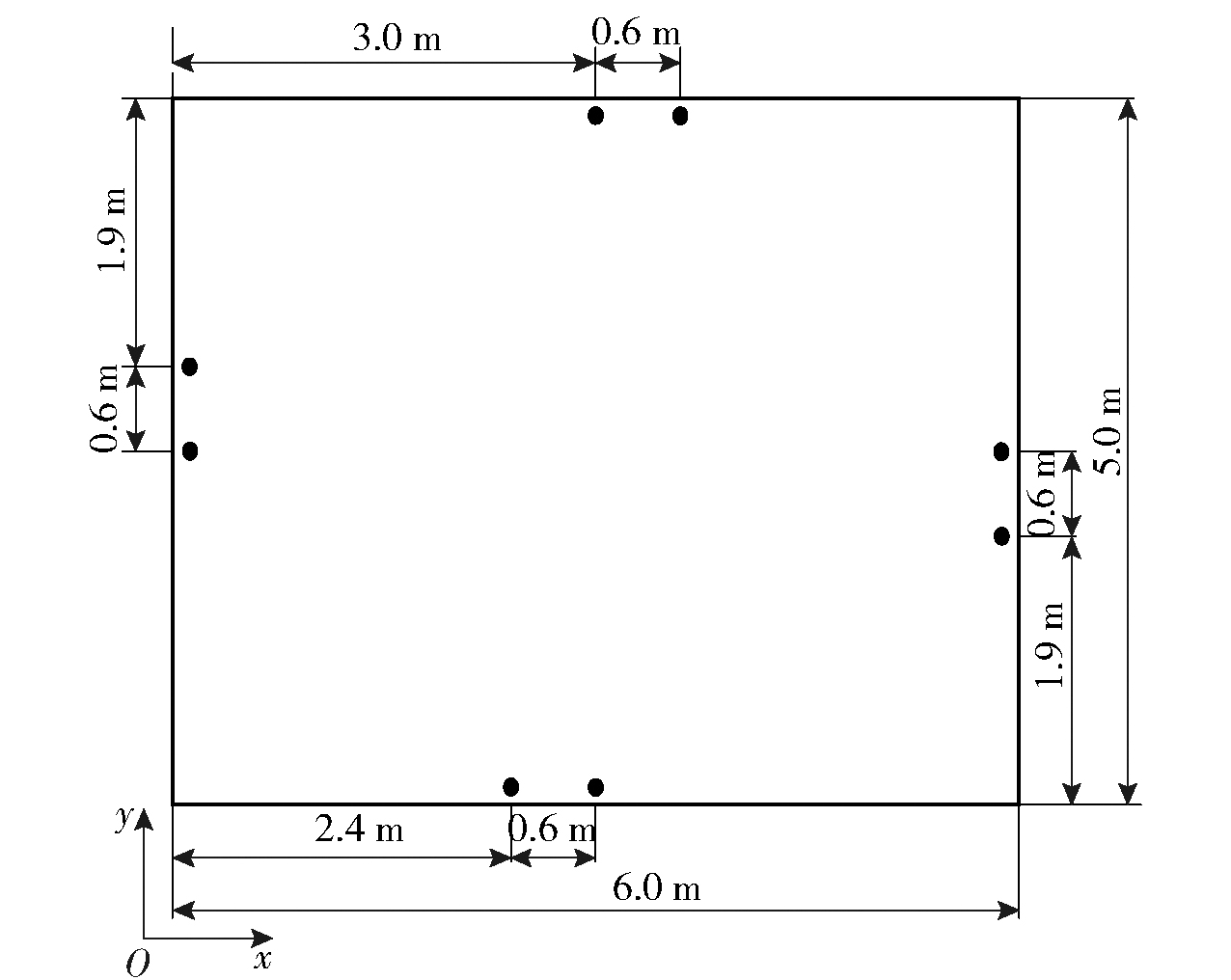

图1 室内麦克风布置图

Fig.1 Indoor microphone layout

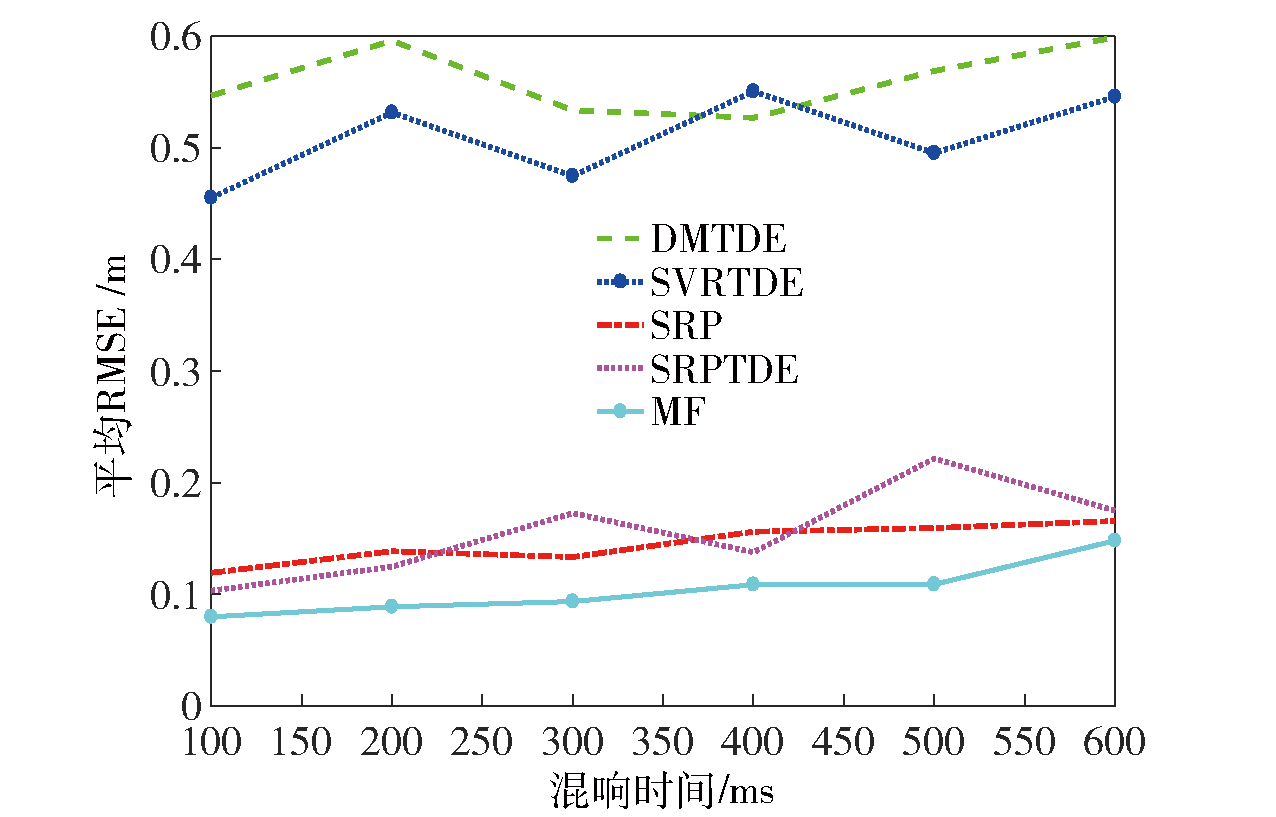

图2 平均RMSE与混响时间的关系

Fig.2 Average RMSE versus reverberation time

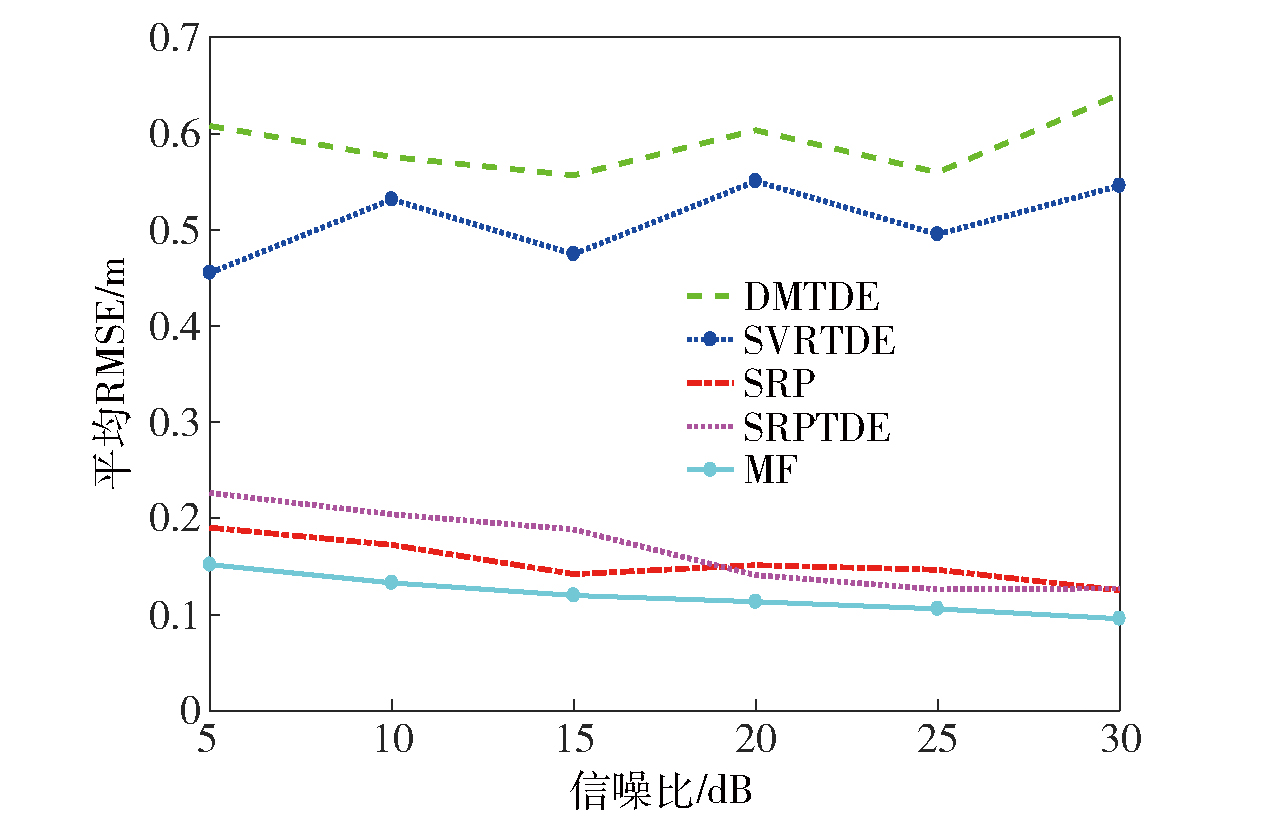

图3 平均RMSE与信噪比的关系

Fig.3 Average RMSE versus SNR

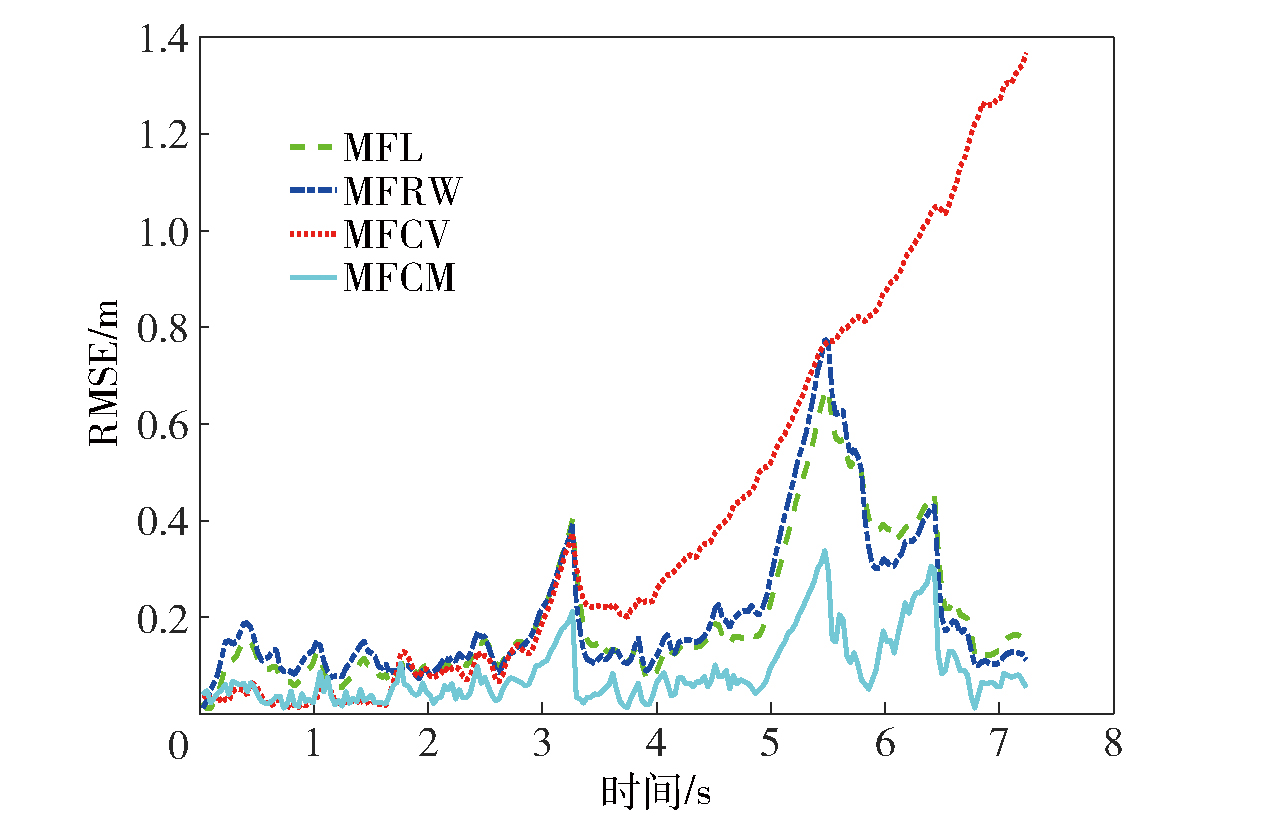

图4 转向机动位置估计RMSE

Fig.4 Estimated RMSE of steering maneuver location

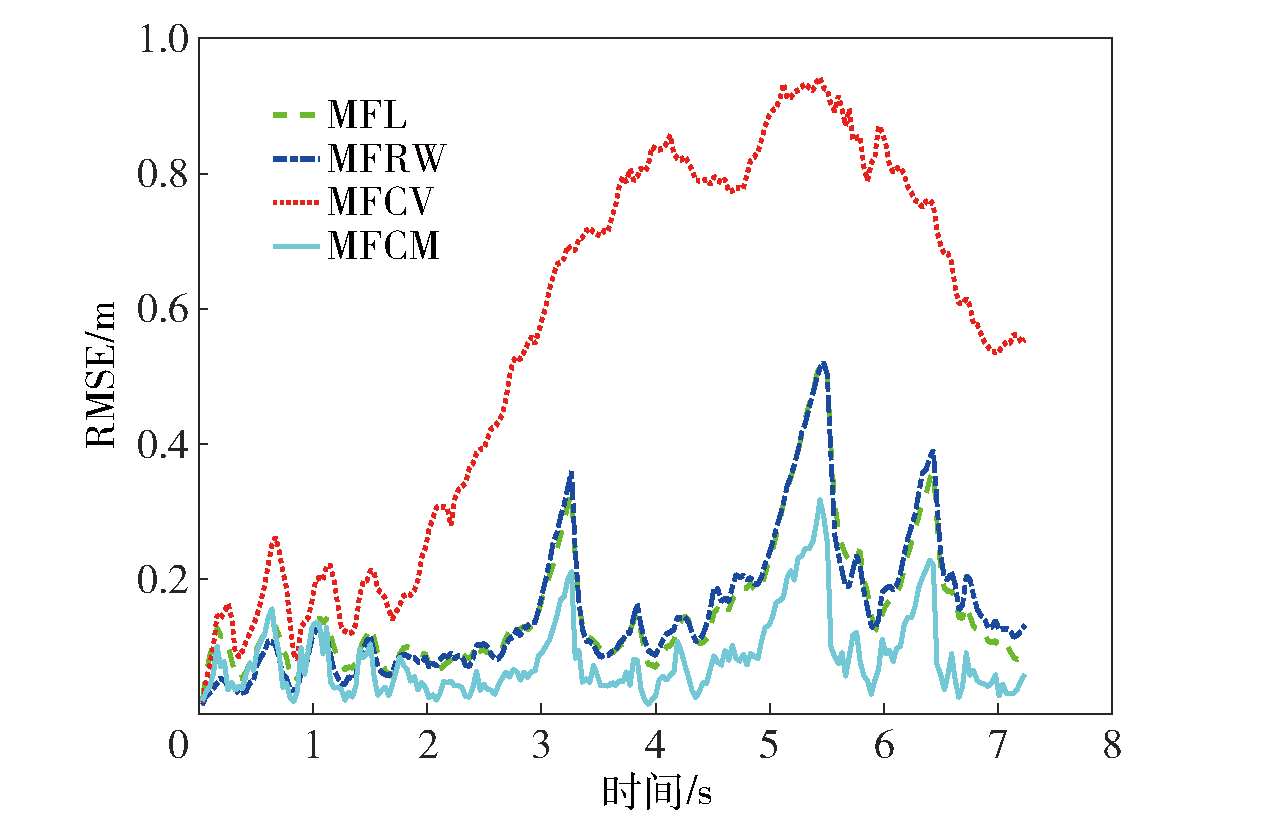

图5 圆弧机动位置估计RMSE

Fig.5 Estimated RMSE of circular arc maneuver location

表2 平均均方根误差比较

Table 2 Comparison of average root mean square errors

算法	转向机动位置平均RMSE/m	圆弧机动位置平均RMSE/m
MFL	0.1976	0.1538
MFRW	0.2065	0.1543
MFCV	0.4073	0.5511
MFCM	0.0841	0.0819

表3 算法性能比较

Table 3 Performance comparison of algorithm

算法	空间复杂度	时间复杂度	运行时间/s
MFL	O(n⁴n_a+p)	O(n⁴n_a+p)	2.4757
MFRW	O(n⁴n_a+p)	O(n⁴n_a+p)	2.1241
MFCV	O(n⁴n_a+p)	O(n⁴n_a+p)	2.2353
MFCM	O(n⁴n_a+p)	O(n⁴n_a+p)	12.141

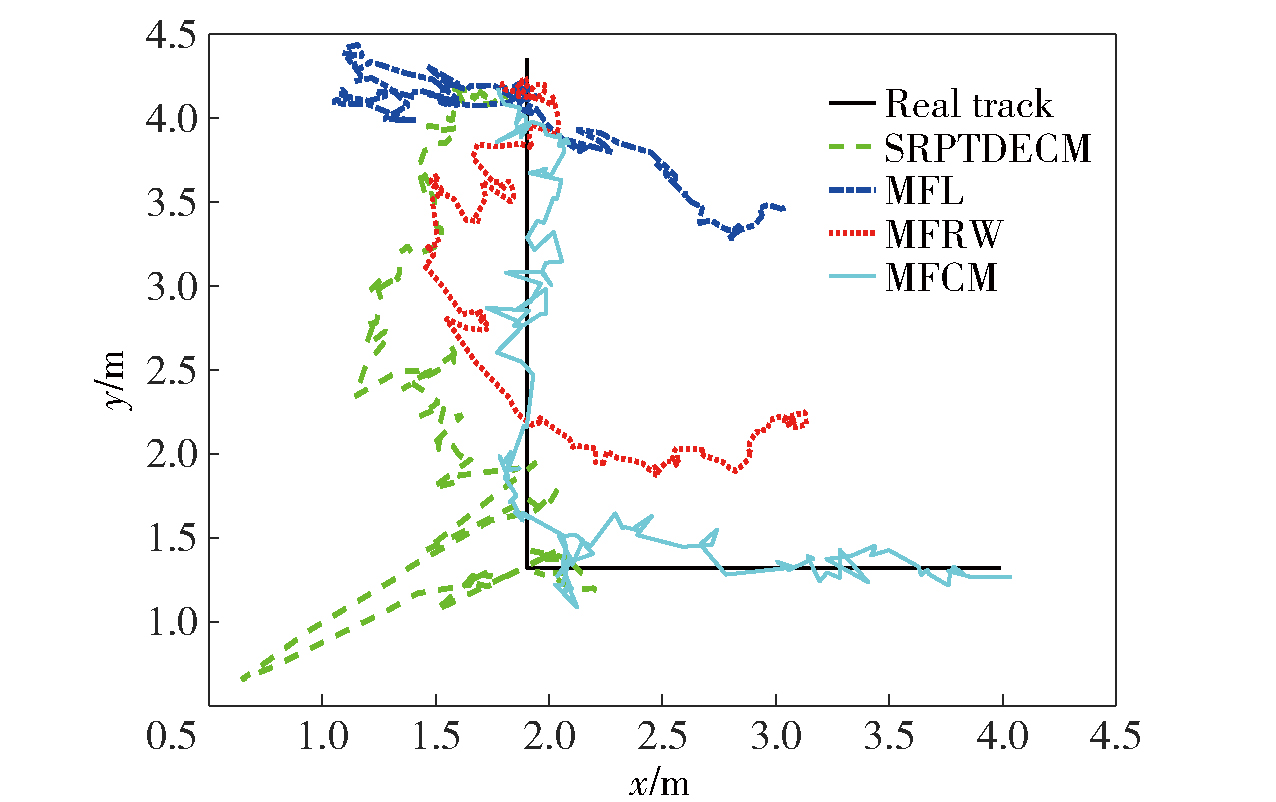

图6 转向轨迹

Fig.6 Steering track

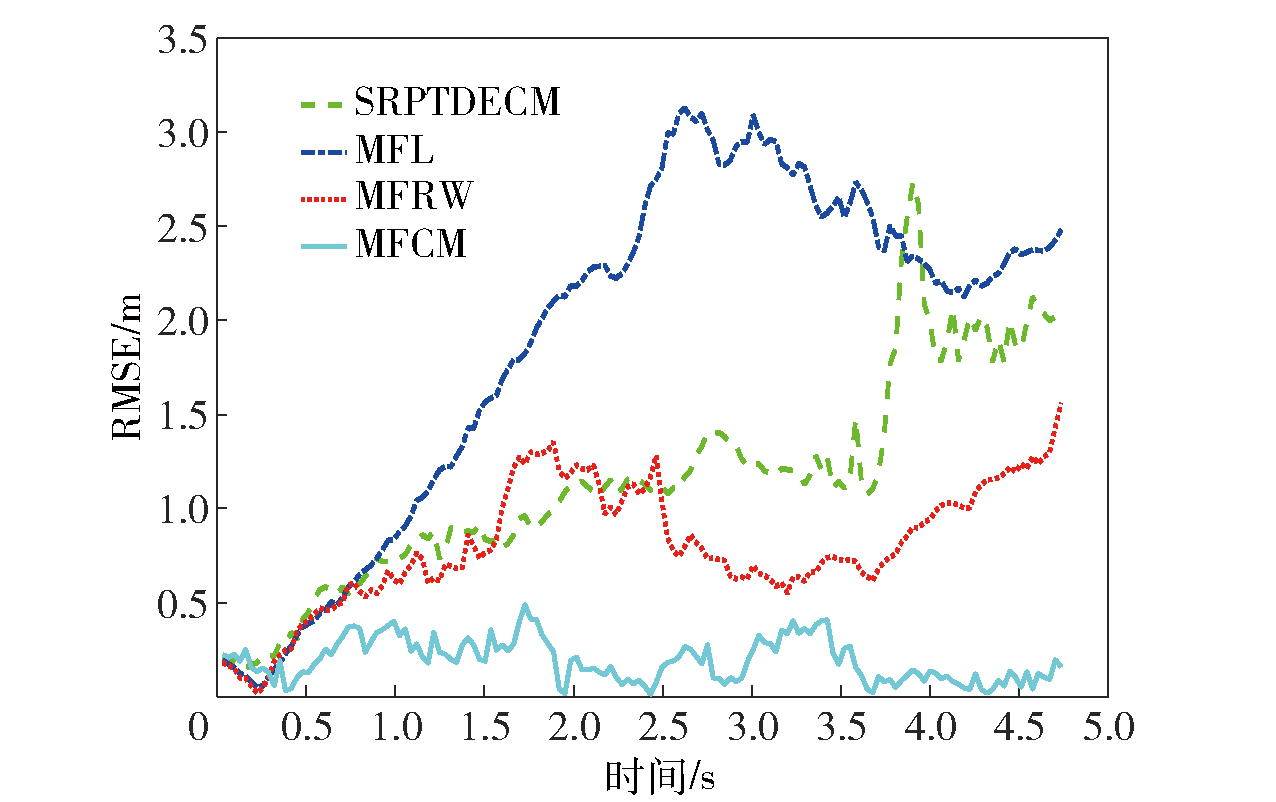

图7 转向轨迹位置估计RMSE

Fig.7 Estimated RMSE of steering track location

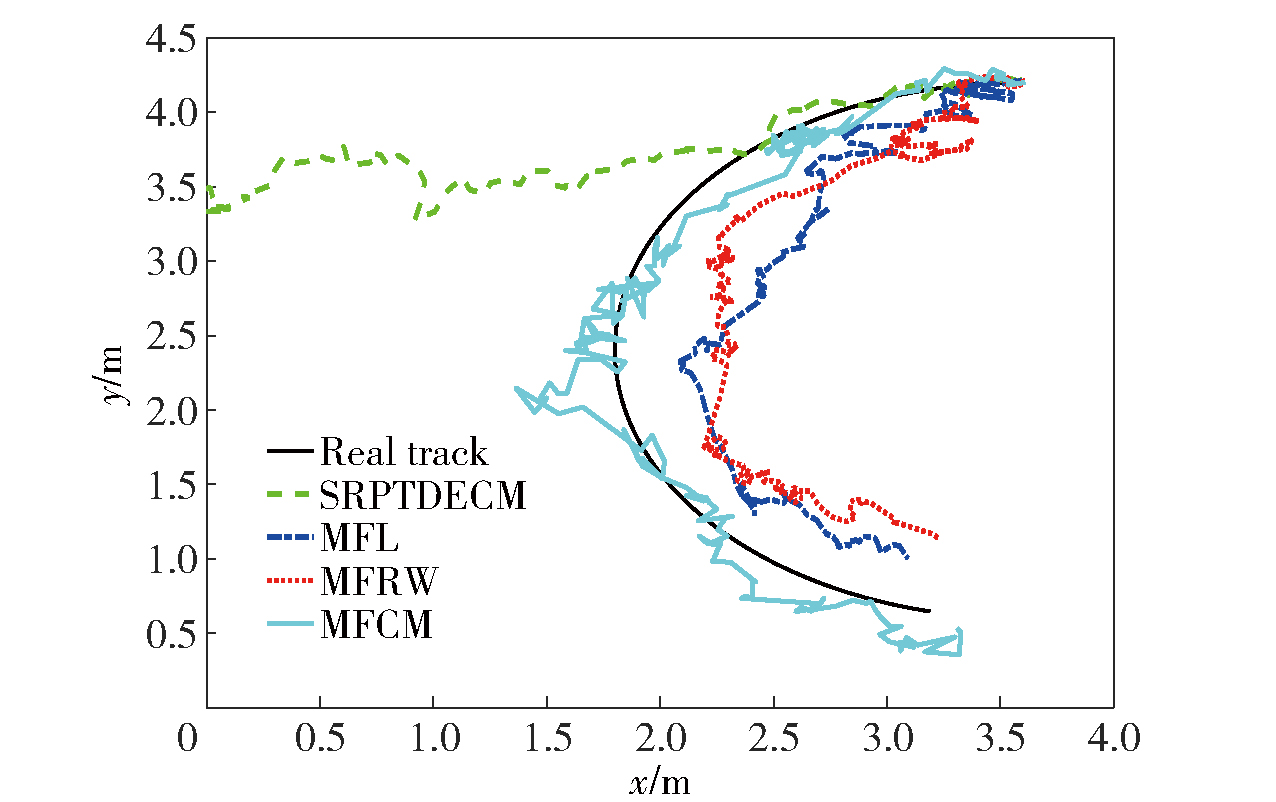

图8 圆弧轨迹

Fig.8 Circular arc track

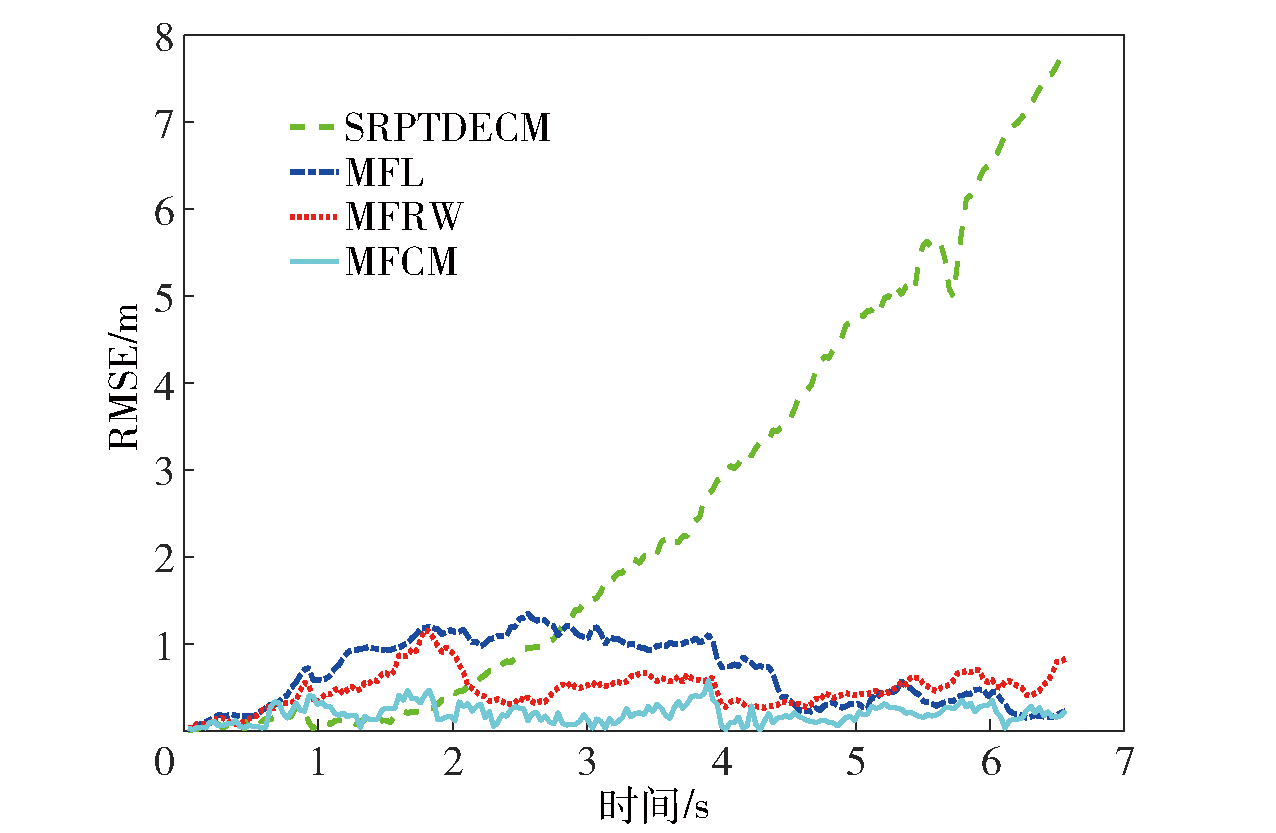

图9 圆弧轨迹位置估计RMSE

Fig.9 Estimated RMSE of circular arc tracklocation estimation

表4 实际轨迹平均均方根误差比较

Table 4 Comparison of average root mean square errors of actual trajectory

算法	转向机动位置平均RMSE/m	圆弧机动位置平均RMSE/m
SRPTDECM	1.1414	2.5258
MFL	1.8893	0.6776
MFRW	0.8011	0.4827
MFCM	0.1917	0.1991
