Prediction Model of Concrete Penetration Depth Based on Unbiased Feature Selection

doi:10.12382/bgxb.2025.0019

Abstract

Abstract:

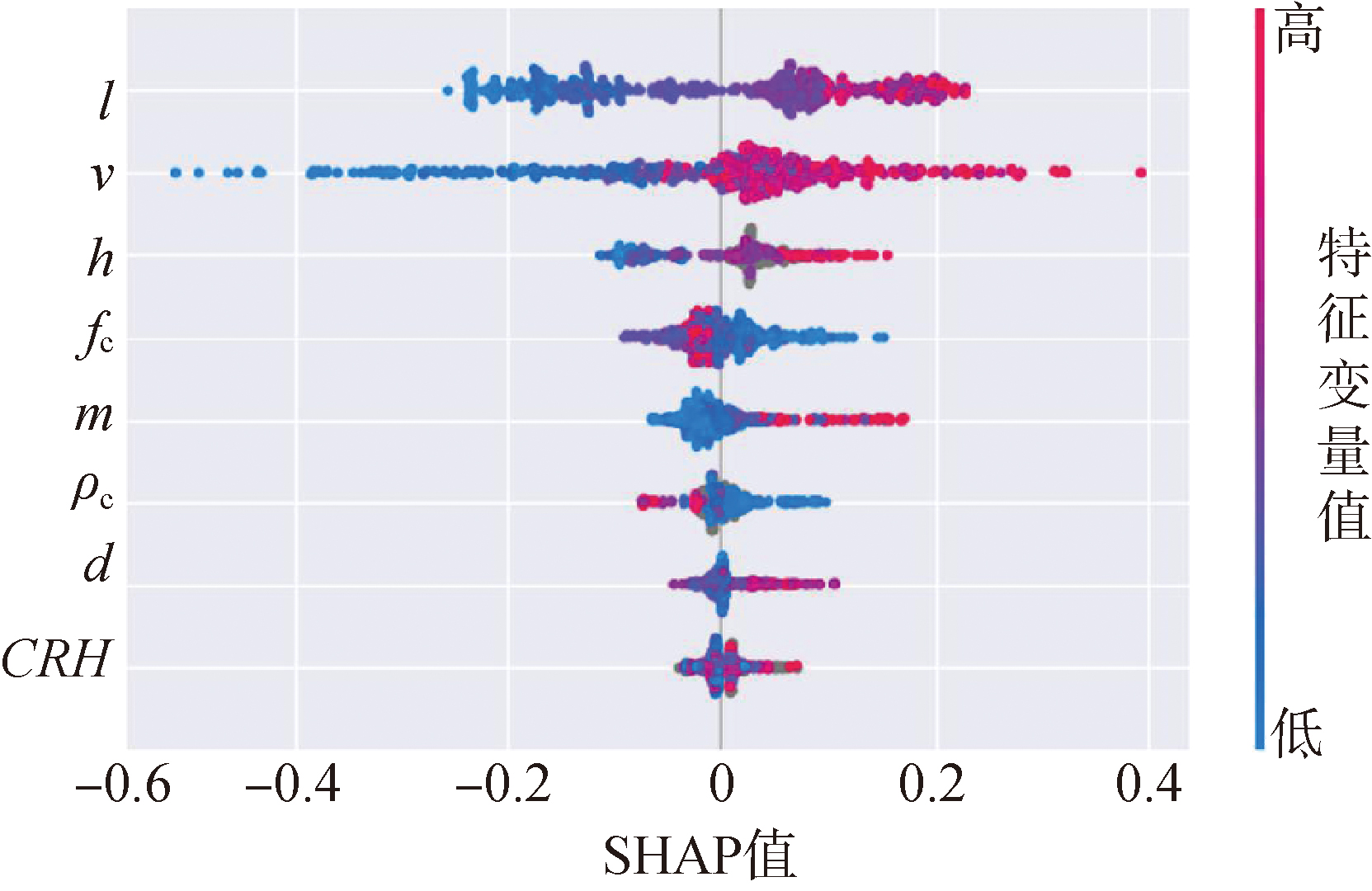

To address the challenges of insufficient data,complex feature selection,and limited applicability of traditional empirical formulas in the prediction of concrete penetration depth,this paper proposes a concrete penetration depth prediction model based on deep learning and optimization strategies.Initially,218 sets of concrete penetration test data are collected,and the size and diversity of dataset are expanded through the integration of multi-stage empirical formulas.To enhance the accuracy of feature selection,an XGBoost (eXtreme Gradient Boosting) model combined with SHAP (SHapley Additive exPlanations) values is employed for feature screening and dimensionality reduction,thereby identifying the key features that are correlated with penetration depth.A multi-layer perceptron (MLP) model for penetration depth prediction is constructed based on these selected key features.Further,Bayesian optimization method is applied to fine-tune the hyperparameters of the MLP model,and its generalization capability is evaluated through K-fold cross-validation.The results demonstrate that the proposed model performs better than the traditional empirical formula under various conditions,its prediction accuracy and stability are significantly improved,and it shows good generalization ability and adaptability.In addition,compared with the traditional empirical formulas,the proposed model also shows better prediction effect in the applicable range of the empirical formulas.

Key words: concrete, penetration depth prediction, unbiased feature selection, Bayesian optimization

CLC Number:

O385

ZHANG Xiuli, ZHANG Jie, QI Xiaopeng, WANG Zhiyong, LIU Zhifang, WANG Zhihua. Prediction Model of Concrete Penetration Depth Based on Unbiased Feature Selection[J]. Acta Armamentarii, 2025, 46(11): 250019-.

Figures/Tables 15

References 24

[1]	杨泽寰, 张先锋, 刘闯, 等. 动能导弹弹体的冲击载荷理论模型[J]. 兵工学报, 2024, 45(增刊1):20-32.
	YANG Z H, ZHANG X F, LIU C, et al. Theoretical model for impact load of kinetic energy missile[J]. Acta Armamentarii, 2024, 45(S1):20-32. (in Chinese) doi: 10.12382/bgxb.2024.0041
[2]	李建光, 李永池, 王玉岚. 人工神经网络在弹体侵彻混凝土深度中的应用[J]. 中国工程科学, 2007, 9(8):77-81.
	LI J G, LI Y C, WANG Y L. Penetration depth of projectiles into concrete using artificial neural network[J]. Strategic Study of CAE, 2007, 9(8):77-81. (in Chinese)
[3]	张树霞, 赵捍东, 韩志高. 基于PSO-SVM的侵彻效果预测方法[J]. 中北大学学报(自然科学版), 2015, 36(2):166-170,175.
	ZHANG S X, ZHAO H D, HAN Z G. Method of penetrate result prediction based on PSO-SVM[J]. Journal of North University of China (Natural Science Edition), 2015, 36(2):166-170,175. (in Chinese)
[4]	杨江, 张磊, 王继民, 等. 基于数据融合的混凝土侵彻深度预测[J]. 兵器材料科学与工程, 2020, 43(4):40-45.
	YANG J, ZHANG L, WANG J M, et al. Prediction of concrete penetration depth based on data fusion[J]. Ordnance Material Science and Engineering, 2020, 43(4):40-45. (in Chinese)
[5]	THOMPSON A S, TEIXEIRA-DIAS F, PAULINO M, et al. Ballistic response of armour plates using generative adversarial networks[J]. Defence Technology, 2022, 18(9):1513-1522. doi: 10.1016/j.dt.2021.08.001
[6]	NING J G, FENG Y B, REN H L, et al. Prediction model for the failure behavior of concrete under impact loading base on back propagation neural network[J]. Construction and Building Materials, 2024, 411:134297. doi: 10.1016/j.conbuildmat.2023.134297 URL
[25]	邓佳杰. 头部刻槽弹体对混凝土靶侵彻机理研究[D]. 南京: 南京理工大学, 2018.
	DENG J J. Study on the penetration mechanism of grooved-nose projectile impact to concrete target[D]. Nanjing: Nanjing University of Science and Technology, 2018. (in Chinese)
[26]	LI Q M, REID S R, WEN H M, et al. Local impact effects of hard missiles on concrete targets[J]. International Journal of Impact Engineering, 2005, 32(1-4):224-284. doi: 10.1016/j.ijimpeng.2005.04.005 URL
[27]	乔非, 翟晓东, 王巧玲. 面向多维特性数据的缺失值检测及填补方法对比[J]. 同济大学学报(自然科学版), 2023, 51(12):1972-1982.
	QIAO F, ZHAI X D, WANG Q L. Comparison of imputation methods based on missing value detection for multidimensional feature data[J]. Journal of Tongji University (Natural Science), 2003, 51(12):1972-1982. (in Chinese)
[28]	CHEN Q Q, ZHANG X Y, WANG Z Y, et al. Data-driven prediction of dimensionless quantities for semi-infinite target penetration by integrating machine-learning and feature selection methods[J]. Defence Technology, 2024, 40:105-124. doi: 10.1016/j.dt.2024.04.012 URL
[29]	李驰运, 缪建明, 沈丙振. 基于改进Stacking集成学习方法的武器装备体系作战效能预测[J]. 兵工学报, 2023, 44(11):3455-3464. doi: 10.12382/bgxb.2022.0797
	LI C Y, MIAO J M, SHEN B Z. Operational effectiveness prediction of weapon equipment system based on improved stacking ensemble learning method[J]. Acta Armamentarii, 2023, 44(11):3455-3464. (in Chinese) doi: 10.12382/bgxb.2022.0797
[7]	李萌, 武海军, 董恒, 等. 基于机器学习的混凝土侵彻深度预测模型[J]. 兵工学报, 2023, 44(12):3771-3782. doi: 10.12382/bgxb.2023.0291
	LI M, WU H J, DONG H, et al. Machine learning-based models for predicting the penetration depth of concrete[J]. Acta Armamentarii, 2023, 44(12):3771-3782. (in Chinese) doi: 10.12382/bgxb.2023.0291
[8]	秦帅, 刘浩, 陈力, 等. 融合先验知识的混凝土侵彻深度试验数据异常点检测算法[J]. 爆炸与冲击, 2024, 44(3):031406.
	QIN S, LIU H, CHEN L, et al. Machine learning-based models for predicting the penetration depth of concrete[J]. Explosion and Shock Waves, 2024, 44(3):031406. (in Chinese)
[9]	FORRESTAL M J, FREW D J, HANCHAK S J, et al. Penetration of grout and concrete targets with ogive-nose steel projectiles[J]. International Journal of Impact Engineering, 1996, 18(5):465-476. doi: 10.1016/0734-743X(95)00048-F URL
[10]	FREW D J, FORRESTAL M J, CARGILE J D. The effect of concrete target diameter on projectile deceleration and penetration depth[J]. International Journal of Impact Engineering, 2006, 32(10):1584-1594. doi: 10.1016/j.ijimpeng.2005.01.012 URL
[11]	FORRESTAL M J, ALTMAN B S, CARGILE J D, et al. An empirical equation for penetration depth of ogive-nose projectiles into concrete targets[J]. International Journal of Impact Engineering, 1994, 15(4):395-405. doi: 10.1016/0734-743X(94)80024-4 URL
[12]	FREW D J, HANCHAK S J, GREEN M L. Penetration of concrete targets with ogive-nose steel rods[J]. International Journal of Impact Engineering, 1998, 21(6):489-497. doi: 10.1016/S0734-743X(98)00008-6 URL
[13]	FORRESTAL M J, FREW D J, HICKERSON J P, et al. Penetration of concrete targets with deceleration-time measurements[J]. International Journal of Impact Engineering, 2003, 28(5):479-497. doi: 10.1016/S0734-743X(02)00108-2 URL
[14]	GOMEZ J T, SHUKLA A. Multiple impact penetration of semi-infinite concrete[J]. International Journal of Impact Engineering, 2001, 25(10):965-979. doi: 10.1016/S0734-743X(01)00029-X URL
[15]	WU H, FANG Q, CHEN X W, et al. Projectile penetration of ultra-high-performance cement based composites at 510-1320m/s[J]. Construction and Building Materials, 2015, 74:188-200. doi: 10.1016/j.conbuildmat.2014.10.041 URL
[16]	ZHANG M H, SHIM V P W, LU G, et al. Resistance of high-strength concrete to projectile impact[J]. International Journal of Impact Engineering, 2005, 31(7):825-841. doi: 10.1016/j.ijimpeng.2004.04.009 URL
[17]	齐爱东, 刘荣忠, 胡功笠, 等. 刚性弹丸对混凝土靶的垂直侵彻研究[J]. 弹道学报, 2003, 15(4):42-45.
	QI A D, LIU R Z, HU G L, et al. Normal penetration of a rigid projectile into concrete target[J]. Journal of Ballistics, 2003, 15(4):42-45. (in Chinese)
[18]	柴传国. 异形头部弹体对混凝土靶的侵彻效应研究[D]. 北京: 北京理工大学, 2014.
	CAI C G. Study on the mechanism of Penetration into concrete of nose headed projectile[D]. Beijing: Beijing Institute of Technology, 2014. (in Chinese)
[19]	沈河涛. 弹丸侵彻混凝土介质效应的研究[D]. 北京: 北京理工大学, 1996.
	SHEN H T. Study on effect of projectile penetration into concrete medium[D]. Beijing: Beijing Institute of Technology 1996. (in Chinese)
[20]	刘士践, 李胜才. 动能弹垂直侵彻混凝土的实验研究及其数值模拟[J]. 四川建筑, 2010, 30(1):224-226.
	LIU S J, LI S C. Experimental study and numerical simulation of vertical penetration of concrete by kinetic energy projectile[J]. Sichuan Architecture, 2010, 30(1):224-226. (in Chinese)
[21]	王磊. 动能弹侵彻混凝土厚靶的试验与仿真研究[D]. 南京: 南京理工大学, 2019.
	WANG L. Experimental and simulation study of kinetic energy projectile penetrating thick concrete target[D]. Nanjing: Nanjing University of Science and Technology, 2019. (in Chinese)
[22]	黄民荣. 刚性弹体对混凝土靶的侵彻与贯穿机理研究[D]. 南京: 南京理工大学, 2011.
	HUANG M R. Penetration and perforation mechanism of rigid projectile into the concrete target[D]. Nanjing: Nanjing University of Science and Technology, 2011. (in Chinese)
[23]	李清献. 射弹对混凝土侵彻深度的计算研究[D]. 成都: 西南交通大学, 2001.
	LI Q X. Research on calculation of penetration depth of concrete by projectile[D]. Chengdu: Southwest Jiaotong University, 2001. (in Chinese)
[24]	周宁, 任辉启, 沈兆武, 等. 弹丸侵彻混凝土和钢筋混凝土的实验[J]. 中国科学技术大学学报, 2006, 36(10):1021-1027.
	ZHOU N, REN H Q, SHEN Z W, et al. Experimental on the projectile penetration concrete targets and reinforced concrete targets[J]. Journal of University of Science and Technology of China, 2006, 36(10):1021-1027. (in Chinese)

数据来源	数据数量	弹体质量 m/kg	弹体直径 d/mm	弹体长度 l/mm	曲率半径与弹径之比CRH	靶板厚度 h/mm	靶板强度 f_c/MPa	靶板密度 ρ_c/(kg·m^-3)	侵彻速度 v/(m·s^-1)	侵彻深度 x/mm
Forrestal等^[9]	9	0.478~1.608	20.3~30.5	203.2~304.8	3	910~2 130	51~62.8	2300	450~821	300~1230
Frew等^[10]	7	12.89~13.08	76.2	530.73	3	910~1830	23		164~337	310~1020
Forrestal等^[11]	17	0.904~0.906	26.9	242.4	2	760~1830	32.4~108.3		277~800	173~958
Frew等^[12]	8	0.478~1.62	20.3~30.5	203.2~304.7	3	940~2240	58.4	2300	442~815	287~1230
Forrestal等^[13]	15	12.9~13.158	76.2	530.73	3~6	1220~1830	23~39	2040~2250	139.3~456.4	240~1250
Gomez等^[14]	14	0.0144~0.0153	6.4	64.34	4.8	406	38.15	2337	183~616	24.26~135.13
Wu等^[15]	20	0.333~0.346	25.3	151.9	3	650	67.5~125.2		510~850	116~346
Zhang等^[16]	17	0.015	12.6	23.93	2.5	150	45.5~112.5		657.9~694.4	28.5~48.5
齐爱东等^[17]	10	4.43	57	465	4	600~1000	30	2600	340.2~497.2	290~500
柴传国^[18]	6	1.394~1.41	40	213	2~4.55	1200	14.8	2238	419~780	384~1019
沈河涛^[19]	9	2.83~2.9	50.8	339	5.157	800~1000	30	2400	497.5~637.3	626~821
刘士践等^[20]	12	0.48	30	195	3	800	85	2560	315~664	90~247
王磊^[21]	21	0.0639~0.098	12.66~14.48	76.25~95.32	2~3	360~400	30.8	2 300	283.5~565.5	73.25~239.53
黄民荣^[22]	5	4.43	57	456.4	4	600~1200	35	2 450	340.2~590	310~625
李清献^[23]	5	0.241	27.3	220.7	8.54		24.1	2356	398~465	155~201
周宁等^[24]	5	25	100	666		3000	35		310~468	590~1190
邓佳杰^[25]	13	0.0655~0.541	14.5~30	87~180	4	1000	40.3~45.1		523.1~797.8	127~450

数据来源	数据数量	弹体质量 m/kg	弹体直径 d/mm	弹体长度 l/mm	曲率半径与弹径之比CRH	靶板厚度 h/mm	靶板强度 f_c/MPa	靶板密度 ρ_c/(kg·m^-3)	侵彻速度 v/(m·s^-1)	侵彻深度 x/mm
Forrestal等^[9]	9	0.478~1.608	20.3~30.5	203.2~304.8	3	910~2 130	51~62.8	2300	450~821	300~1230
Frew等^[10]	7	12.89~13.08	76.2	530.73	3	910~1830	23		164~337	310~1020
Forrestal等^[11]	17	0.904~0.906	26.9	242.4	2	760~1830	32.4~108.3		277~800	173~958
Frew等^[12]	8	0.478~1.62	20.3~30.5	203.2~304.7	3	940~2240	58.4	2300	442~815	287~1230
Forrestal等^[13]	15	12.9~13.158	76.2	530.73	3~6	1220~1830	23~39	2040~2250	139.3~456.4	240~1250
Gomez等^[14]	14	0.0144~0.0153	6.4	64.34	4.8	406	38.15	2337	183~616	24.26~135.13
Wu等^[15]	20	0.333~0.346	25.3	151.9	3	650	67.5~125.2		510~850	116~346
Zhang等^[16]	17	0.015	12.6	23.93	2.5	150	45.5~112.5		657.9~694.4	28.5~48.5
齐爱东等^[17]	10	4.43	57	465	4	600~1000	30	2600	340.2~497.2	290~500
柴传国^[18]	6	1.394~1.41	40	213	2~4.55	1200	14.8	2238	419~780	384~1019
沈河涛^[19]	9	2.83~2.9	50.8	339	5.157	800~1000	30	2400	497.5~637.3	626~821
刘士践等^[20]	12	0.48	30	195	3	800	85	2560	315~664	90~247
王磊^[21]	21	0.0639~0.098	12.66~14.48	76.25~95.32	2~3	360~400	30.8	2 300	283.5~565.5	73.25~239.53
黄民荣^[22]	5	4.43	57	456.4	4	600~1200	35	2 450	340.2~590	310~625
李清献^[23]	5	0.241	27.3	220.7	8.54		24.1	2356	398~465	155~201
周宁等^[24]	5	25	100	666		3000	35		310~468	590~1190
邓佳杰^[25]	13	0.0655~0.541	14.5~30	87~180	4	1000	40.3~45.1		523.1~797.8	127~450

名称	具体公式内容
美国陆军工程兵(ACE)公式 (144m/s<v<310m/s 3≤h/d≤18)	$\frac{x}{d}$= $\frac{3.5\times {10}^{-4}}{\sqrt[　]{{f}_{c}}}\left(\frac{m}{{d}^{3}}\right)$d^0.2v^1.5+0.5

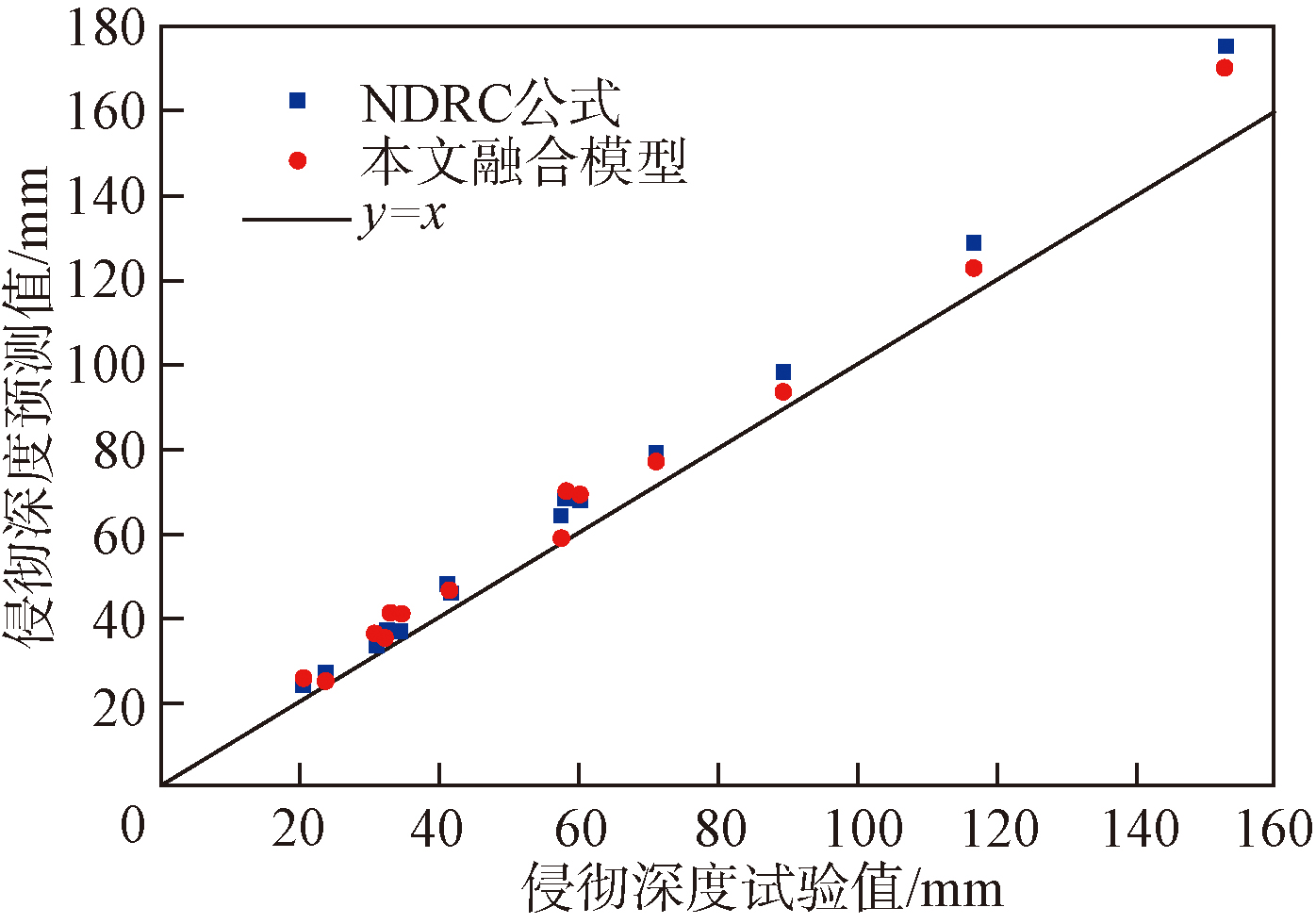

修正国防研究委员会(NDRC)公式 (152m/s<v<300m/s 0.6≤x/d≤2.0)	G=3.8×10^-5 $\frac{Nm}{d\sqrt[　]{{f}_{c}}}{\left(\frac{v}{d}\right)}^{1.8}$	$\frac{x}{d}$=2G^0.5	G≥1
修正国防研究委员会(NDRC)公式 (152m/s<v<300m/s 0.6≤x/d≤2.0)		$\frac{x}{d}$=G+1	G<1
弹道研究实验室(BRL)公式 (600m/s≤v≤800m/s)	$\frac{x}{d}$= $\frac{1.33\times {10}^{-3}}{\sqrt[　]{{f}_{c}}}\left(\frac{m}{{d}^{3}}\right)$d^0.2v^1.33
Kar公式 (20MPa≤f_c≤60MPa)	G=3.8×10^-5 $\frac{Nm}{d\sqrt[　]{{f}_{c}}}{\left(\frac{E}{{E}_{s}}\right)}^{1.25}{\left(\frac{v}{d}\right)}^{1.8}$	$\frac{x}{d}$=2G^0.5	G≥1
Kar公式 (20MPa≤f_c≤60MPa)		$\frac{x}{d}$=G+1	G<1
Haldar-Hamieh公式 (20MPa≤f_c≤35MPa) 300m/s≤v≤800m/s	$\frac{x}{d}$=0.2251I_a+0.0308	I_a= $\frac{mN{v}^{2}}{{f}_{c}{d}^{3}}$	0.3≤I_a≤4.0
	$\frac{x}{d}$=0.0567I_a+0.6740		4.0≤I_a≤21
	$\frac{x}{d}$=0.0299I_a+1.1875		21≤I_a≤455
Petry公式 (500m/s≤v≤2500m/s)	$\frac{x}{d}$=k $\frac{m}{{d}^{3}}$lg $\left(1+\frac{{v}^{2}}{19974}\right)$
英国原子能管理局(UKAEA)公式 (v<340m/s m<500kg)	G=3.8×10^-5 $\frac{Nm}{d\sqrt[　]{{f}_{c}}}{\left(\frac{v}{d}\right)}^{1.8}$	$\frac{x}{d}$=0.275-[0.0756-G]^0.5	G≤0.0726
		$\frac{x}{d}$=[4G-0.242]^0.5	0.0726≤G≤1.06
		$\frac{x}{d}$=G+0.9395	G≥1.06
Forrestal公式 (200m/s≤v≤600m/s m<500kg)	$\frac{x}{d}$=v ${\left(\frac{m}{c}\right)}^{0.5}$	${v}_{1}^{2}$= $\frac{2m{v}^{2}-64.3988\times {10}^{6}\pi {d}^{3}{f}_{c}^{0.5}}{2m+\pi {d}^{3}N{\rho }_{c}}$	x≤2d
Forrestal公式 (200m/s≤v≤600m/s m<500kg)	$\frac{x}{d}$= $\frac{2m}{\pi N{\rho }_{c}{d}^{3}}$ln $\left(1+\frac{N{\rho }_{c}{v}_{1}^{2}}{64.3988\times {10}^{6}f{ }_{c}^{0.5}}\right)$+2.0	c= $\frac{\pi d}{8}$(64.3988×10⁶ ${f}_{c}^{0.5}$+Nρ_c ${v}_{1}^{2}$)	x>2d
Chen公式 (200m/s≤v≤600m/s)	$\frac{x}{d}$= $\sqrt[　]{\frac{\left(1+\left(\frac{k\pi }{4N}\right)\right)}{1+\left(\frac{I}{N}\right)}\frac{4kI}{\pi }}$	I= $\frac{{I}^{*}}{S}$= $\frac{1}{S}\left(\frac{m{v}^{2}}{{f}_{c}{d}^{3}}\right)$	$\frac{x}{d}$≤5
		N= $\frac{\lambda }{N}$= $\frac{1}{N}\left(\frac{m}{{\rho }_{c}{d}^{3}}\right)$	$\frac{x}{d}$≤5
	$\frac{x}{d}$= $\frac{2}{\pi }$Nln $\left[\frac{1+\left(\frac{I}{N}\right)}{1+\left(\frac{k\pi }{4N}\right)}\right]$+k	S=72 ${{f}_{c}}^{-0.5}$	$\frac{x}{d}$>5
	$\frac{x}{d}$=1.628 ${\left(\frac{\left(1+\left(\frac{k\pi }{4N}\right)\right)}{1+\left(\frac{l}{N}\right)}\frac{4kI}{\pi }\right)}^{1.395}$	k= $\left(\begin{array}{c}0.707+\frac{h}{d}\end{array}\right)$	$\frac{x}{d}$<0.5

名称	具体公式内容
美国陆军工程兵(ACE)公式 (144m/s<v<310m/s 3≤h/d≤18)	$\frac{x}{d}$= $\frac{3.5\times {10}^{-4}}{\sqrt[　]{{f}_{c}}}\left(\frac{m}{{d}^{3}}\right)$d^0.2v^1.5+0.5
修正国防研究委员会(NDRC)公式 (152m/s<v<300m/s 0.6≤x/d≤2.0)	G=3.8×10^-5 $\frac{Nm}{d\sqrt[　]{{f}_{c}}}{\left(\frac{v}{d}\right)}^{1.8}$	$\frac{x}{d}$=2G^0.5	G≥1
修正国防研究委员会(NDRC)公式 (152m/s<v<300m/s 0.6≤x/d≤2.0)		$\frac{x}{d}$=G+1	G<1
弹道研究实验室(BRL)公式 (600m/s≤v≤800m/s)	$\frac{x}{d}$= $\frac{1.33\times {10}^{-3}}{\sqrt[　]{{f}_{c}}}\left(\frac{m}{{d}^{3}}\right)$d^0.2v^1.33
Kar公式 (20MPa≤f_c≤60MPa)	G=3.8×10^-5 $\frac{Nm}{d\sqrt[　]{{f}_{c}}}{\left(\frac{E}{{E}_{s}}\right)}^{1.25}{\left(\frac{v}{d}\right)}^{1.8}$	$\frac{x}{d}$=2G^0.5	G≥1
Kar公式 (20MPa≤f_c≤60MPa)		$\frac{x}{d}$=G+1	G<1
Haldar-Hamieh公式 (20MPa≤f_c≤35MPa) 300m/s≤v≤800m/s	$\frac{x}{d}$=0.2251I_a+0.0308	I_a= $\frac{mN{v}^{2}}{{f}_{c}{d}^{3}}$	0.3≤I_a≤4.0
	$\frac{x}{d}$=0.0567I_a+0.6740		4.0≤I_a≤21
	$\frac{x}{d}$=0.0299I_a+1.1875		21≤I_a≤455
Petry公式 (500m/s≤v≤2500m/s)	$\frac{x}{d}$=k $\frac{m}{{d}^{3}}$lg $\left(1+\frac{{v}^{2}}{19974}\right)$
英国原子能管理局(UKAEA)公式 (v<340m/s m<500kg)	G=3.8×10^-5 $\frac{Nm}{d\sqrt[　]{{f}_{c}}}{\left(\frac{v}{d}\right)}^{1.8}$	$\frac{x}{d}$=0.275-[0.0756-G]^0.5	G≤0.0726
		$\frac{x}{d}$=[4G-0.242]^0.5	0.0726≤G≤1.06
		$\frac{x}{d}$=G+0.9395	G≥1.06
Forrestal公式 (200m/s≤v≤600m/s m<500kg)	$\frac{x}{d}$=v ${\left(\frac{m}{c}\right)}^{0.5}$	${v}_{1}^{2}$= $\frac{2m{v}^{2}-64.3988\times {10}^{6}\pi {d}^{3}{f}_{c}^{0.5}}{2m+\pi {d}^{3}N{\rho }_{c}}$	x≤2d
Forrestal公式 (200m/s≤v≤600m/s m<500kg)	$\frac{x}{d}$= $\frac{2m}{\pi N{\rho }_{c}{d}^{3}}$ln $\left(1+\frac{N{\rho }_{c}{v}_{1}^{2}}{64.3988\times {10}^{6}f{ }_{c}^{0.5}}\right)$+2.0	c= $\frac{\pi d}{8}$(64.3988×10⁶ ${f}_{c}^{0.5}$+Nρ_c ${v}_{1}^{2}$)	x>2d
Chen公式 (200m/s≤v≤600m/s)	$\frac{x}{d}$= $\sqrt[　]{\frac{\left(1+\left(\frac{k\pi }{4N}\right)\right)}{1+\left(\frac{I}{N}\right)}\frac{4kI}{\pi }}$	I= $\frac{{I}^{*}}{S}$= $\frac{1}{S}\left(\frac{m{v}^{2}}{{f}_{c}{d}^{3}}\right)$	$\frac{x}{d}$≤5
		N= $\frac{\lambda }{N}$= $\frac{1}{N}\left(\frac{m}{{\rho }_{c}{d}^{3}}\right)$	$\frac{x}{d}$≤5
	$\frac{x}{d}$= $\frac{2}{\pi }$Nln $\left[\frac{1+\left(\frac{I}{N}\right)}{1+\left(\frac{k\pi }{4N}\right)}\right]$+k	S=72 ${{f}_{c}}^{-0.5}$	$\frac{x}{d}$>5
	$\frac{x}{d}$=1.628 ${\left(\frac{\left(1+\left(\frac{k\pi }{4N}\right)\right)}{1+\left(\frac{l}{N}\right)}\frac{4kI}{\pi }\right)}^{1.395}$	k= $\left(\begin{array}{c}0.707+\frac{h}{d}\end{array}\right)$	$\frac{x}{d}$<0.5

研究对象及冲击结果	参数	最小值	中位值	最大值	平均值	标准差
子弹	质量/kg	0.0144	1.16	25	2.36	3.83
	密度/(kg·m^-3)	7830	7830	8118	7895	115.94
	长度/mm	23.93	232.3	684	240.46	125.94
	直径	6.4	30	125	33.87	18.72
	CRH	2	3.66	8.54	3.61	0.90
	抗拉强度/MPa	550	1677	1730	1570.64	283.71
	屈服强度/MPa	1000	1500	1999	1519.72	363.28
靶板	厚度/mm	40	1019.3	3000	1070.64	497.42
	密度/(kg·m^-3)	2040.0	2303.5	2600.0	2344.91	92.93
	抗压强度/MPa	14.8	39.45	125.2	43.93	19.84
冲击	着靶速度/(m·s^-1)	63.2	569	859	518.32	190.93
结果	侵彻深度/mm	20.34	352.18	1418.72	430.50	318.28
