Research on the Application of Shear-stiffening Gel Modified Foam Materials in Ballistic Helmets

doi:10.12382/bgxb.2025.0225

Abstract

Abstract:

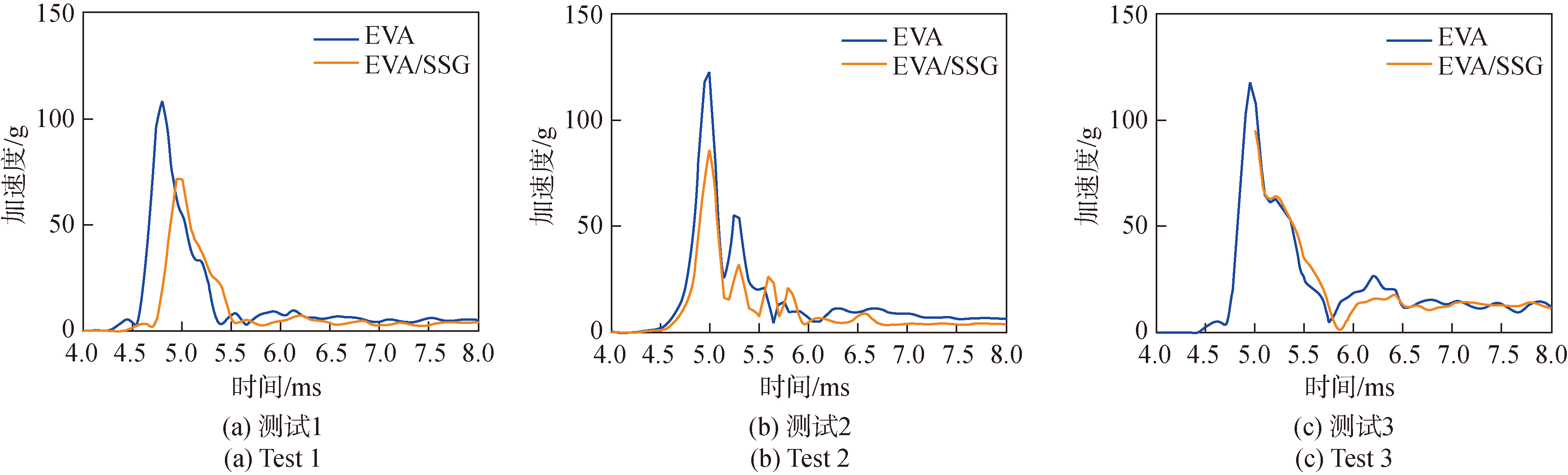

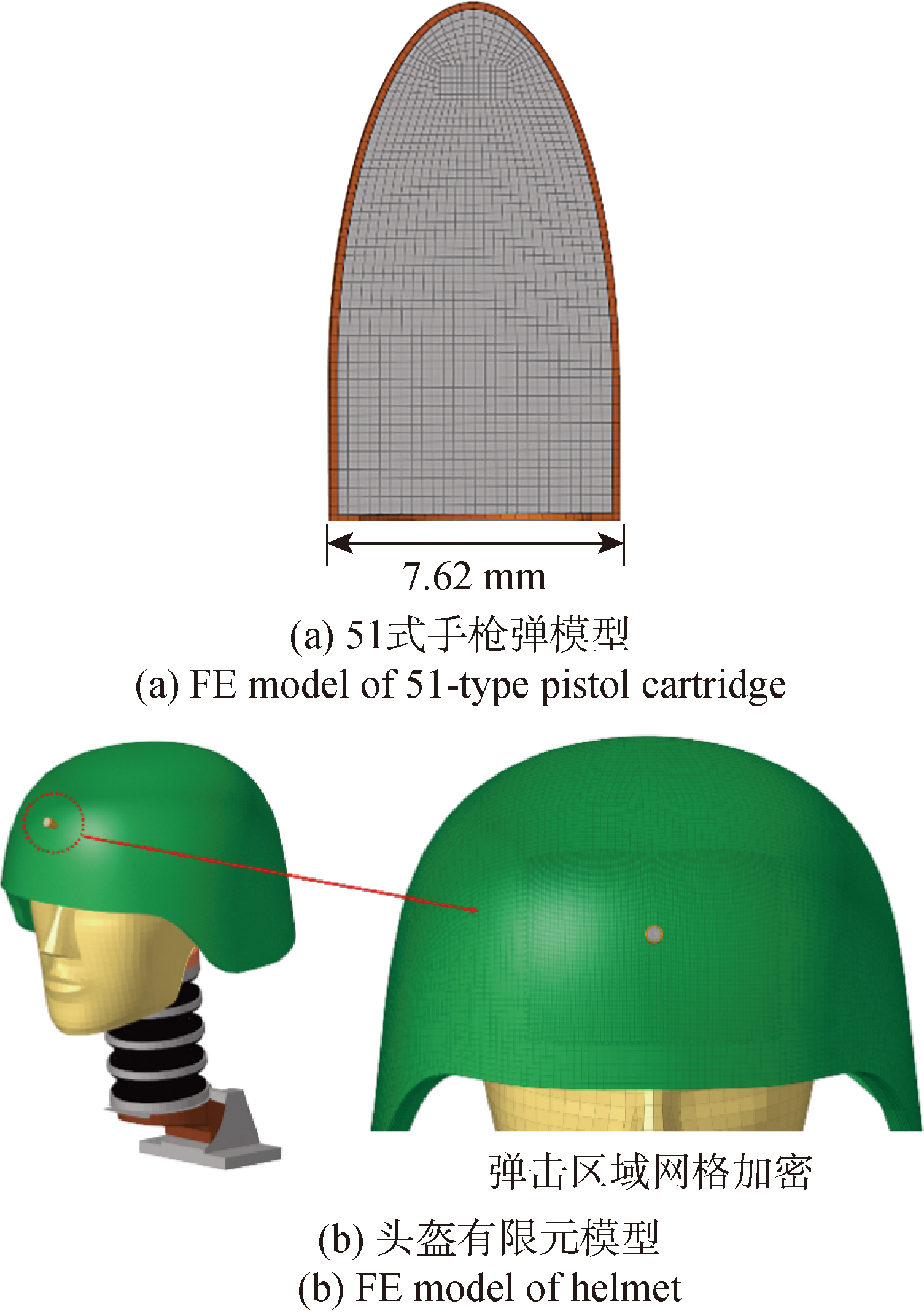

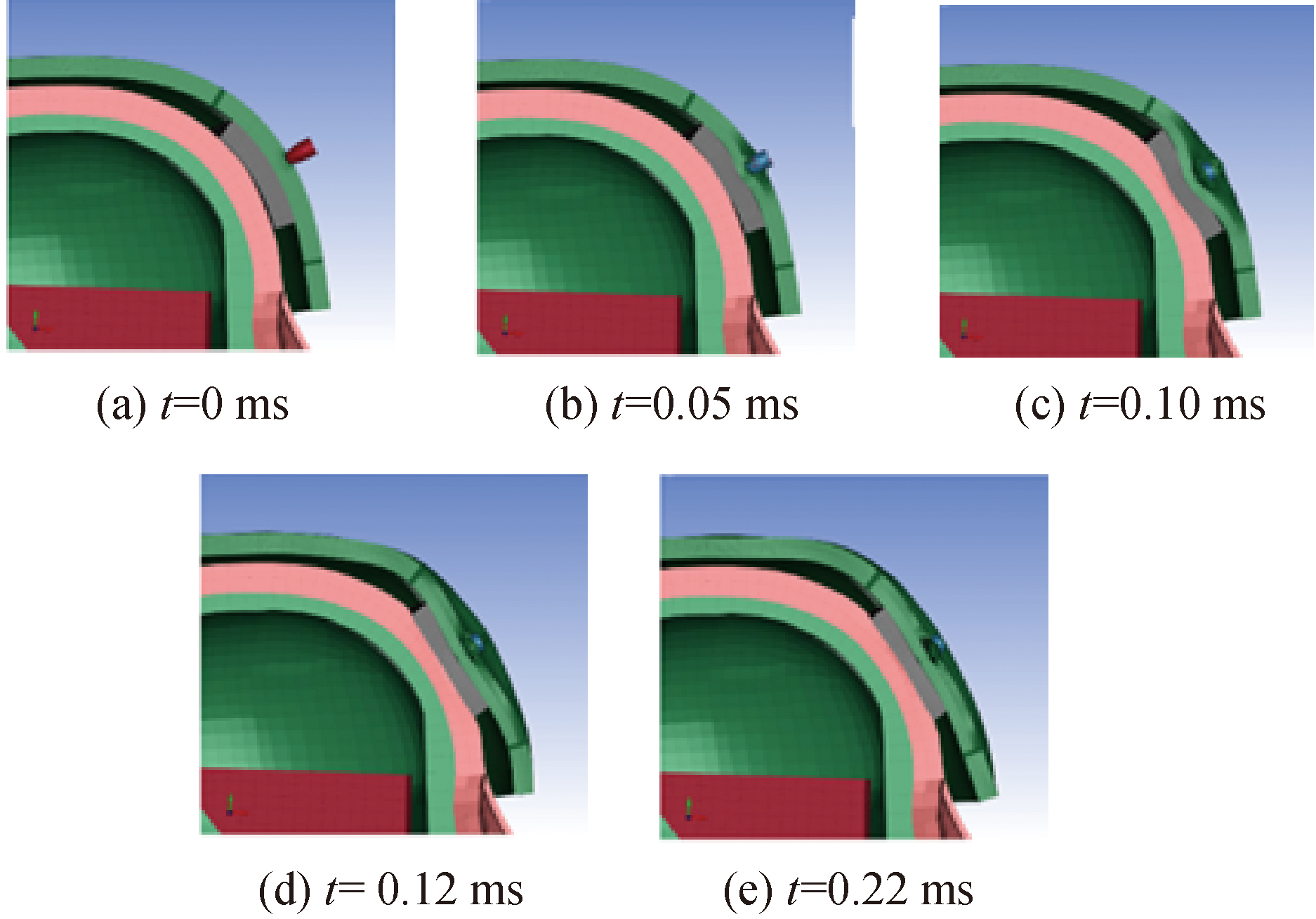

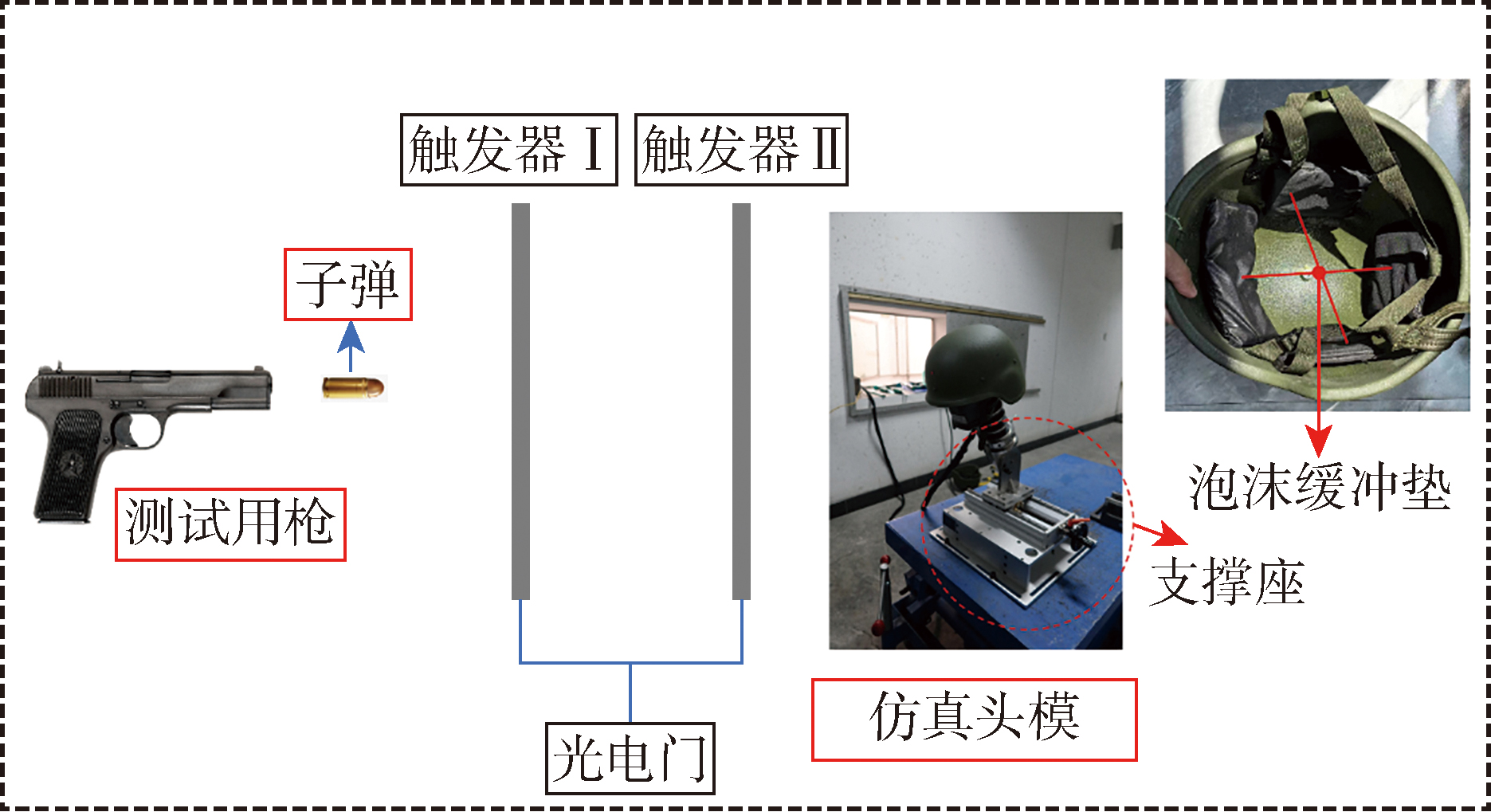

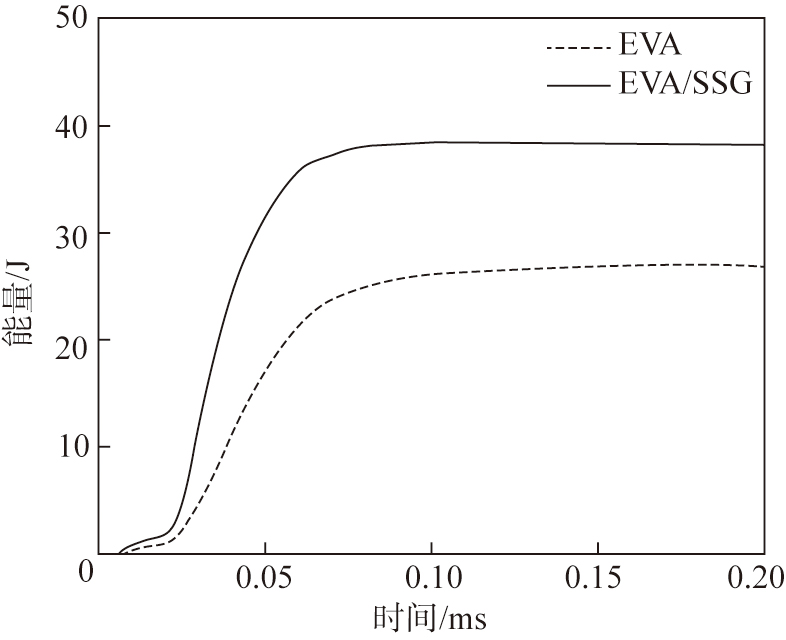

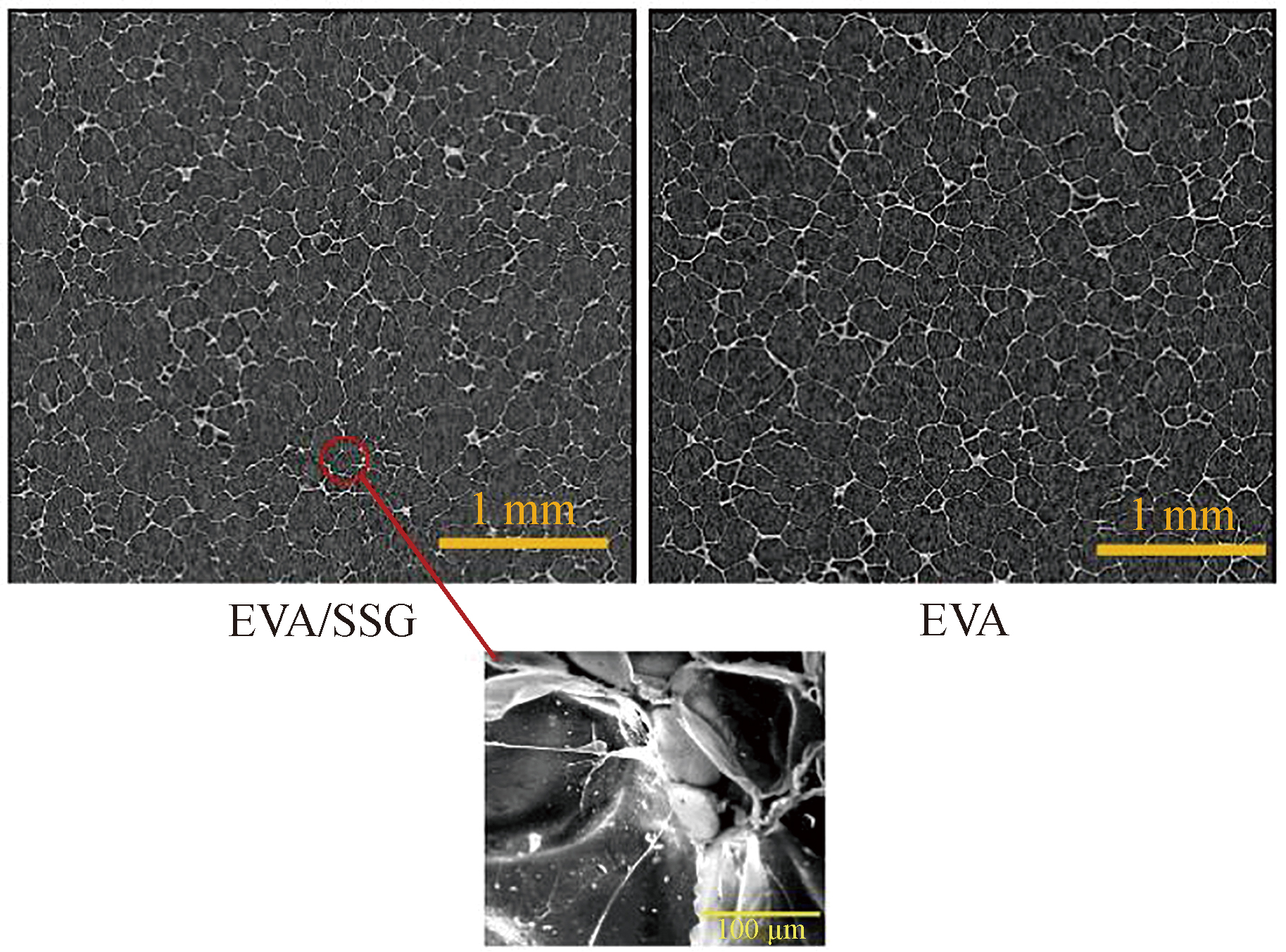

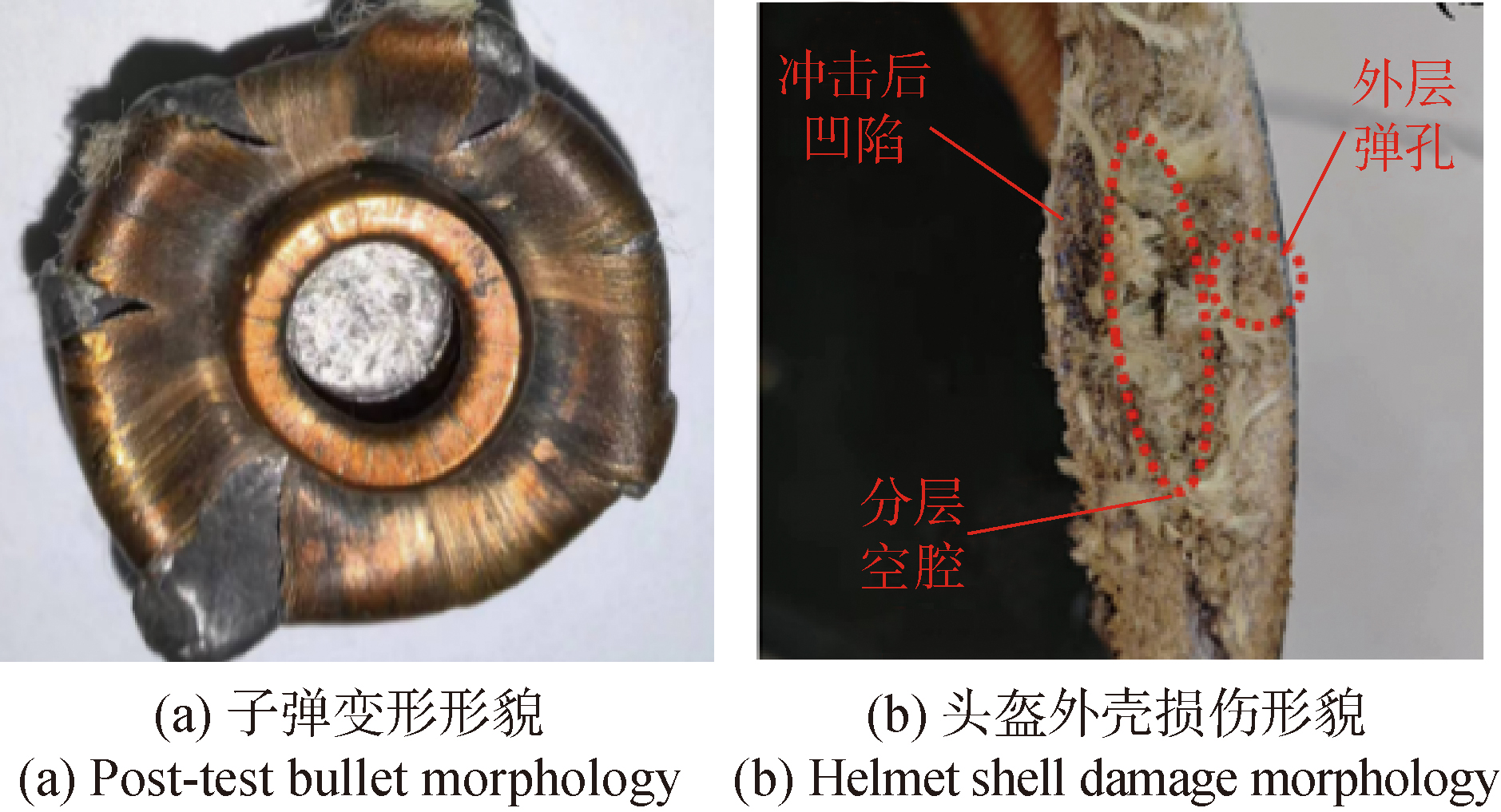

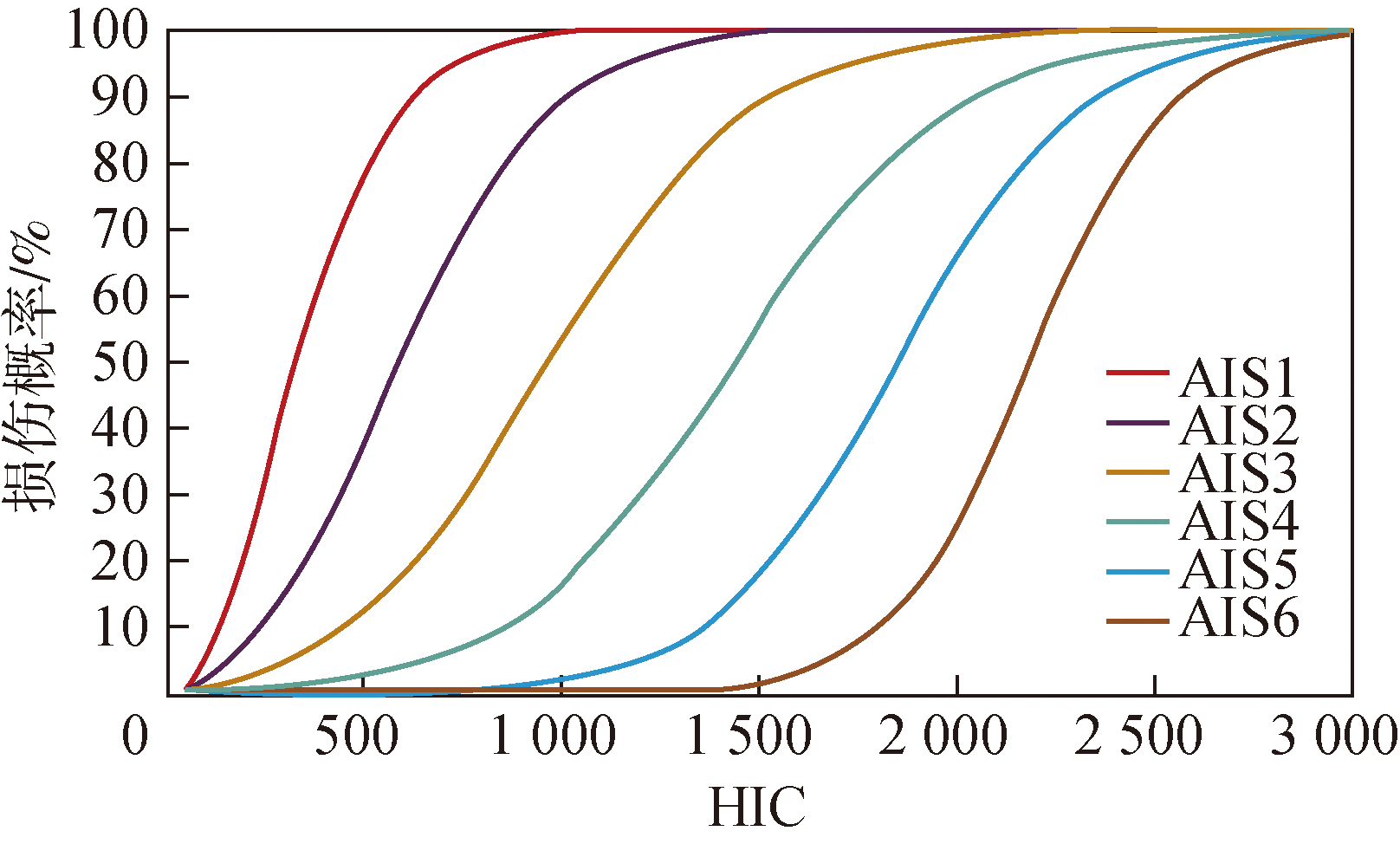

Ballistic helmets are critical protective equipment designed to mitigate craniocerebral injuries caused by ballistic impacts and blast shocks.The cushioning system within the helmet plays a vital role in attenuating the damage effects from such impacts.To enhance the overall protective performance of headgear,a novel cushioning material—EVA/SSG composite foam—was developed by incorporating Shear Stiffening Gel (SSG) into ethylene-vinyl acetate (EVA) foam.Using a ballistic impact testing platform and a synthetic head model,comparative ballistic tests were conducted on helmets equipped with conventional EVA pads and those with the EVA/SSG pads.The temporal variations in impact force on the headform surface and the acceleration at the centroid of the head model during impact were investigated.Additionally,finite element simulations of the ballistic impact were performed.Both experimental and numerical results demonstrate that,under ballistic impact conditions,the helmet with EVA/SSG foam liners reduces the peak pressure on the headform surface and the peak acceleration at the centroid by more than 20%,thereby significantly lowering the probability of head injury.

Key words: ballistic helmet, foam, shear stiffening gel, ballistic impact, finite element simulation

CLC Number:

TJ04

YANG Haowei, WANG Junlong, MIAO Zhenwei, KANG Yue, WEI Yanpeng. Research on the Application of Shear-stiffening Gel Modified Foam Materials in Ballistic Helmets[J]. Acta Armamentarii, 2025, 46(11): 250225-.

Figures/Tables 24

References 26

[1]	聂伟晓, 温垚珂, 董方栋, 等. 破片侵彻戴防弹头盔头部靶标钝击效应数值模拟[J]. 兵工学报, 2022, 43(9):2075-2085.
	NIE W X, WEN Y K, DONG F D, et al. Protective performance of functionally graded foam lining subjected to high-speed rifle bullet impact[J]. Acta Armamentarii, 2022, 43(9):2075-2085. (in Chinese)
[2]	贾时雨, 王成, 徐文龙, 等. 环形复合内衬头盔冲击波防护性能研究[J]. 兵工学报, 2025, 46(1):231220. doi: 10.12382/bgxb.2023.1220
	JIA S Y, WANG C, XU W L, et al. Protective performance of helmet with annular composite liner[J]. Acta Armamentarii, 2025, 46(1):231220. (in Chinese) doi: 10.12382/bgxb.2023.1220
[3]	ABAYAZID F F, GHAJARI M. Viscoelastic circular cell honeycomb helmet liners for reducing head rotation and brain strain in oblique impacts[J]. Materials & Design, 2024, 239:112748.
[4]	NASIM M, SPADONIS, PAVAN P G, et al. Helmets with lattice liners can mitigate traumatic brain injury from impacts[J]. Journal of Biomechanics, 2025, 176:112362. doi: 10.1016/j.jbiomech.2024.112362 URL
[5]	CHANG B P, KURKIN A, KASHCHEEV A, et al. Enhancing dynamic impact performance and cushioning of EVA copolymer foams with thermoplastic elastomers[J]. Materials Today Communications, 2024, 38:107888. doi: 10.1016/j.mtcomm.2023.107888 URL
[6]	TANG F, DONG C, YANG Z, et al. Protective performance and dynamic behavior of composite body armor with shear stiffening gel as buffer material under ballistic impact[J]. Composites Science and Technology, 2022, 218:109190. doi: 10.1016/j.compscitech.2021.109190 URL
[7]	CAGLAYAN C, OSKEN I, ATAALP, et al. Impact response of shear thickening fluid filled polyurethane foam core sandwich composites[J]. Composite Structures, 2020, 243:112171. doi: 10.1016/j.compstruct.2020.112171 URL
[8]	LIU X K, QIAN C, YU K J, et al. Energy absorption and low-velocity impact response of shear thickening gel reinforced polyurethane foam[J]. Smart Materials and Structures, 2020, 29(4):045018. doi: 10.1088/1361-665X/ab73e2 URL
[9]	RODRIGUEZ-MILLAN M, RUBIO I, BURPO F J, et al. Impact response of advance combat helmet pad systems[J]. International Journal of Impact Engineering, 2023, 181:104757. doi: 10.1016/j.ijimpeng.2023.104757 URL
[10]	PALTA E, FANG H B, WEGGEL D C. Finite element analysis of the advanced combat helmet under various ballistic impacts[J]. International Journal of Impact Engineering, 2018, 112:125-143. doi: 10.1016/j.ijimpeng.2017.10.010 URL
[11]	TANG L B, TSE K M, LEE H P, et al. Performance of an advanced combat helmet with different interior cushioning systems in ballistic impact:Experiments and finite element simulations[J]. International Journal of Impact Engineering, 2012, 50:99-112. doi: 10.1016/j.ijimpeng.2012.06.003 URL
[12]	RODRIGUEZ-MILLAN M, RUBIO I, BURPO F J, et al. Experimental and numerical analyses of ballistic resistance evaluation of combat helmet using Hybrid III headform[J]. International Journal of Impact Engineering, 2023, 179:104653. doi: 10.1016/j.ijimpeng.2023.104653 URL
[13]	LI X G, GAO X L, KLEIVEN S. Behind helmet blunt trauma induced by ballistic impact:a computational model[J]. International Journal of Impact Engineering, 2016, 91(5):56-67. doi: 10.1016/j.ijimpeng.2015.12.010 URL
[14]	LEE H P, GONG S W. Finite element analysis for the evaluation of protective functions of helmets against ballistic impact[J]. Computer Methods in Biomechanics & Biomedical Engineering, 2010, 13(5):537-550.
[15]	YANG H W, TU H, YANG Z, et al. Micromechanical properties of shear stiffening gel reinforced ethylene-vinyl acetate foam[J]. Materials Letters, 2023, 351:134993. doi: 10.1016/j.matlet.2023.134993 URL
[16]	HALLQUIST J O. LS-DYNA theory manual[J]. Livermore Software Technology Corporation, 2006, 3:25-31.
[17]	CAÇOILO A, MOURÃO R, TEIXEIRA-DIAS F, et al. Modelling ballistic impact on military helmets:the relevance of projectile plasticity[J]. Defence Technology, 2021, 17(5):1699-1711. doi: 10.1016/j.dt.2020.09.011 URL
[18]	STEPHEN C, SHIVAMURTHY B, SELVAM R, et al. Design and finite element study of Kevlar based combat helmet for protection against high-velocity impacts[J]. Materials Today:Proceedings, 2022, 56:3636-3641. doi: 10.1016/j.matpr.2021.12.338 URL
[19]	SANTHANAM S S, ALAGAPPAN P. Numerical and experimental study of underwash effect and its role in blast-induced traumatic brain injury[J]. Shock Waves, 2024, 34(6):609-624. doi: 10.1007/s00193-024-01183-4
[20]	TU H, YANG H W, XU P, et al. Protective performance of shear stiffening gel-modified foam against ballistic impact:Experimental and numerical study[J]. Defence Technology, 2024, 32(2):510-520. doi: 10.1016/j.dt.2023.10.001 URL
[21]	ZHANG L, GURAO M, YANG K H, et al. Material characterization and computer model simulation of low density polyurethane foam used in a rodent traumatic brain injury model[J]. Journal of Neuroscience Methods, 2011, 198(1):93-98. doi: 10.1016/j.jneumeth.2011.03.024 pmid: 21459114
[22]	RAHBEK D B, SIMONS J W, JOHNSEN B B, et al. Effect of composite covering on ballistic fracture damage development in ceramic plates[J]. International Journal of Impact Engineering, 2017, 99:58-68. doi: 10.1016/j.ijimpeng.2016.09.010 URL
[23]	郑秋杰, 郭迎福, 蔡志华, 等. 步枪弹高速冲击下防弹头盔功能梯度泡沫内衬的防护性能[J]. 兵工学报, 2021, 42(6):1275-1282.
	ZHENG Q J, GOU Y F, CAI Z H, et al. Numerical simulation of bludgeoning effect of fragments penetrating head target wearing bulletproof helmet[J]. Acta Armamentarii, 2021, 42(6):1275-1282. (in Chinese)
[24]	FREITAS C J, MATHIS J T, SCOTT N, et al. Dynamic response due to behind helmet blunt trauma measured with a human head surrogate[J]. International Journal of Medical Sciences, 2014, 11(5):409-425. doi: 10.7150/ijms.8079 pmid: 24688303
[25]	HAYES W C, ERICKSON M S, POWER E D. Forensic injury biomechanics[J]. Annual Review of Biomedical Engineering, 2007, 9(1):55-86. doi: 10.1146/annurev.bioeng.9.060906.151946 URL
[26]	FRANKLYN M, LEE P. Military injury biomechanics:the cause and prevention of impact injuries[M]. Danvers,MA,US: CRC Press, 2017.

样品	硬度(SLX-C)	密度/(g·cm^-3)	弹性模量/MPa
EVA泡沫	40	0.065	4.1
EVA/SSG泡沫	48	0.068	5.2

样品	硬度(SLX-C)	密度/(g·cm^-3)	弹性模量/MPa
EVA泡沫	40	0.065	4.1
EVA/SSG泡沫	48	0.068	5.2

失效模式	失效判据
纤维拉伸断裂	σ₁₁>0, ${e}_{f}^{2}$= ${\left(\frac{{\sigma }_{11}}{{X}_{t}}\right)}^{2}$+ ${\left(\frac{{\sigma }_{12}}{{S}_{C}}\right)}^{2}$≥1
基体碎裂	σ₂₂>0, ${e}_{m}^{2}$= ${\left(\frac{{\sigma }_{22}}{{Y}_{t}}\right)}^{2}$+ ${\left(\frac{{\sigma }_{12}}{{S}_{C}}\right)}^{2}$≥1
基体压缩失效	σ₂₂<0, ${e}_{d}^{2}$= ${\left(\frac{{\sigma }_{22}}{2{S}_{C}}\right)}^{2}$ + $\left[{\left(\frac{{Y}_{C}}{2{S}_{C}}\right)}^{2}-1\right]\frac{{\sigma }_{22}}{{Y}_{C}}$+ ${\left(\frac{{\sigma }_{12}}{{S}_{C}}\right)}^{2}$≥1
纤维压缩失效	σ₁₁<0, ${e}_{c}^{2}$= ${\left(\frac{{\sigma }_{11}}{{X}_{c}}\right)}^{2}$≥1

失效模式	失效判据
纤维拉伸断裂	σ₁₁>0, ${e}_{f}^{2}$= ${\left(\frac{{\sigma }_{11}}{{X}_{t}}\right)}^{2}$+ ${\left(\frac{{\sigma }_{12}}{{S}_{C}}\right)}^{2}$≥1
基体碎裂	σ₂₂>0, ${e}_{m}^{2}$= ${\left(\frac{{\sigma }_{22}}{{Y}_{t}}\right)}^{2}$+ ${\left(\frac{{\sigma }_{12}}{{S}_{C}}\right)}^{2}$≥1
基体压缩失效	σ₂₂<0, ${e}_{d}^{2}$= ${\left(\frac{{\sigma }_{22}}{2{S}_{C}}\right)}^{2}$ + $\left[{\left(\frac{{Y}_{C}}{2{S}_{C}}\right)}^{2}-1\right]\frac{{\sigma }_{22}}{{Y}_{C}}$+ ${\left(\frac{{\sigma }_{12}}{{S}_{C}}\right)}^{2}$≥1
纤维压缩失效	σ₁₁<0, ${e}_{c}^{2}$= ${\left(\frac{{\sigma }_{11}}{{X}_{c}}\right)}^{2}$≥1

材料参数	数值
密度ρ/(kg·cm^-3)	1230
弹性模量E₁₁,E₂₂/GPa	18.5
弹性模量E₃₃/GPa	6
泊松比ν₁₂	0.25
泊松比ν₃₁,ν₂₃	0.33
剪切模量G₁₂/GPa	0.77
剪切模量G₂₃,G₁₃/GPa	2.5
平面方向的拉伸强度/GPa	0.555
平面方向的压缩强度/GPa	1.2
剪切强度/MPa	77
