Dynamic Mechanical Test and Microplane Model-based Simulation of MICP-treated Calcareous Sand

doi:10.12382/bgxb.2025.0155

Abstract

Abstract:

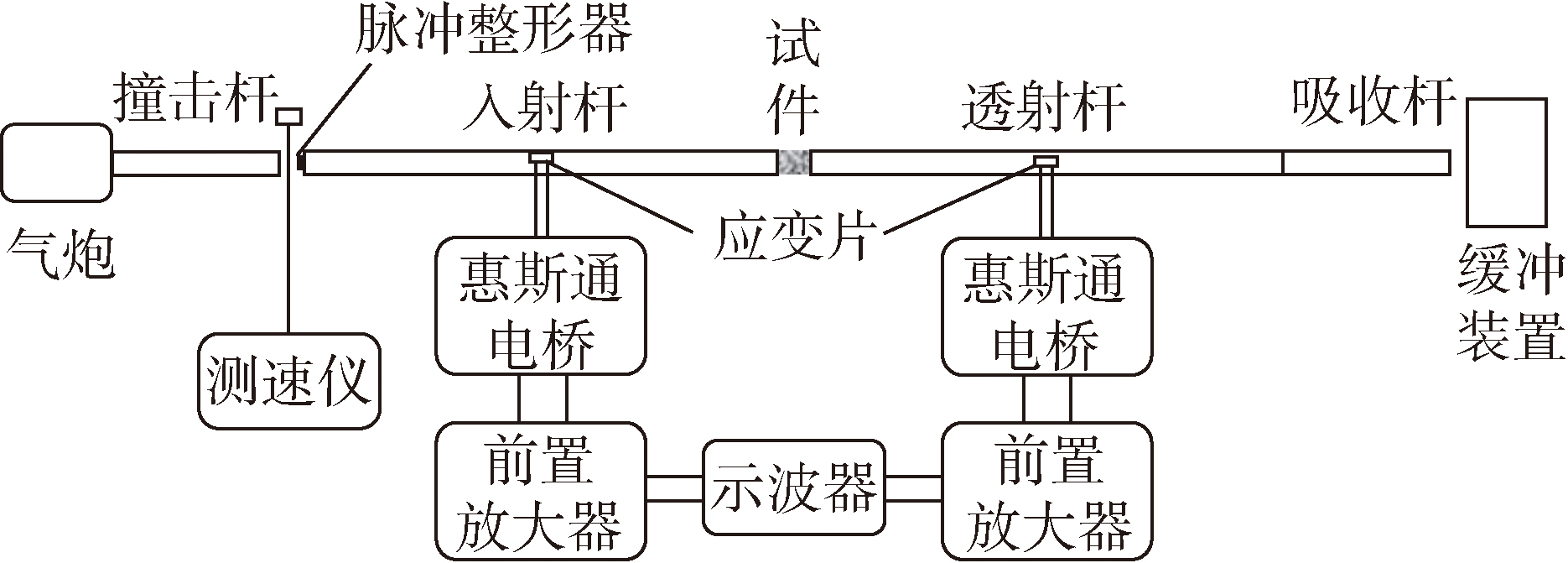

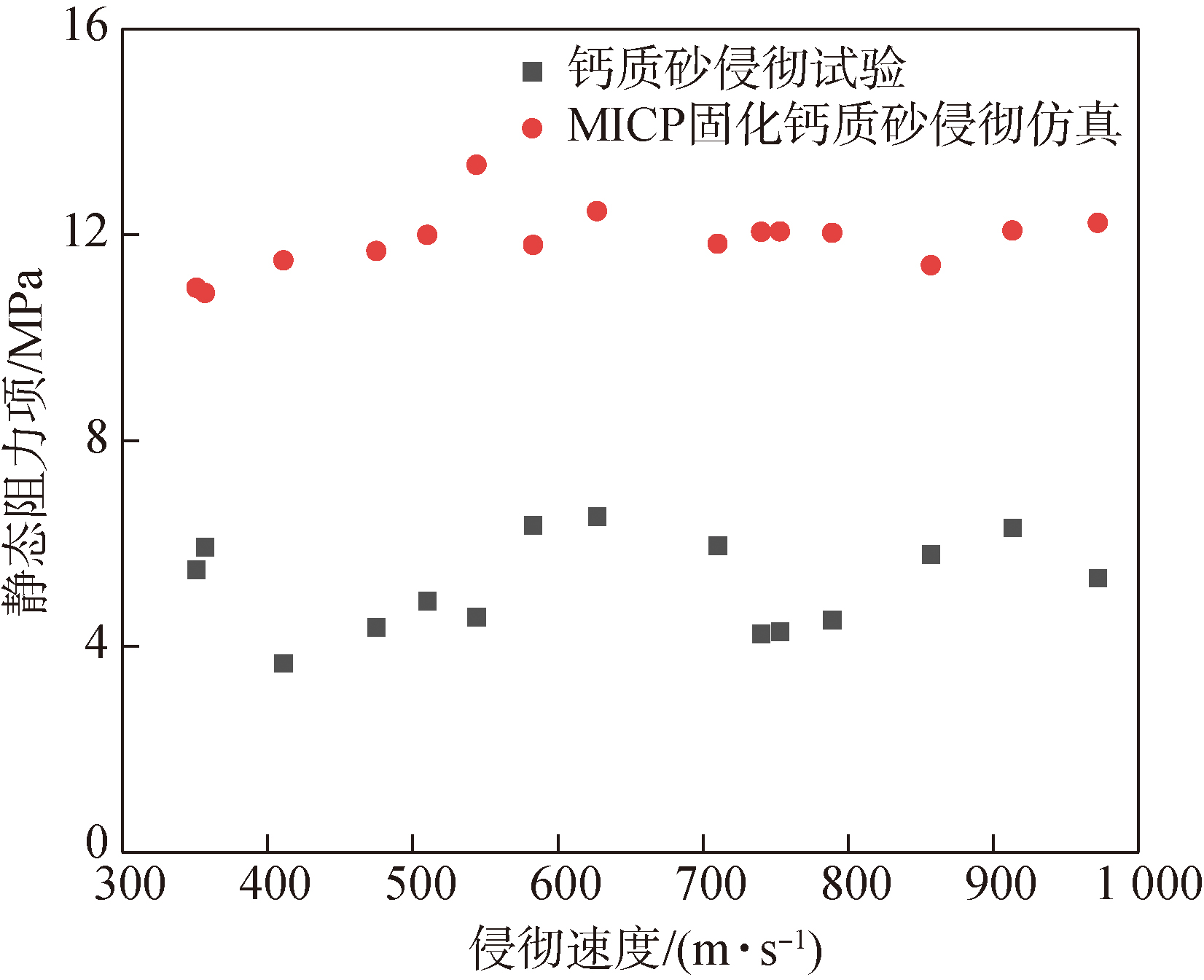

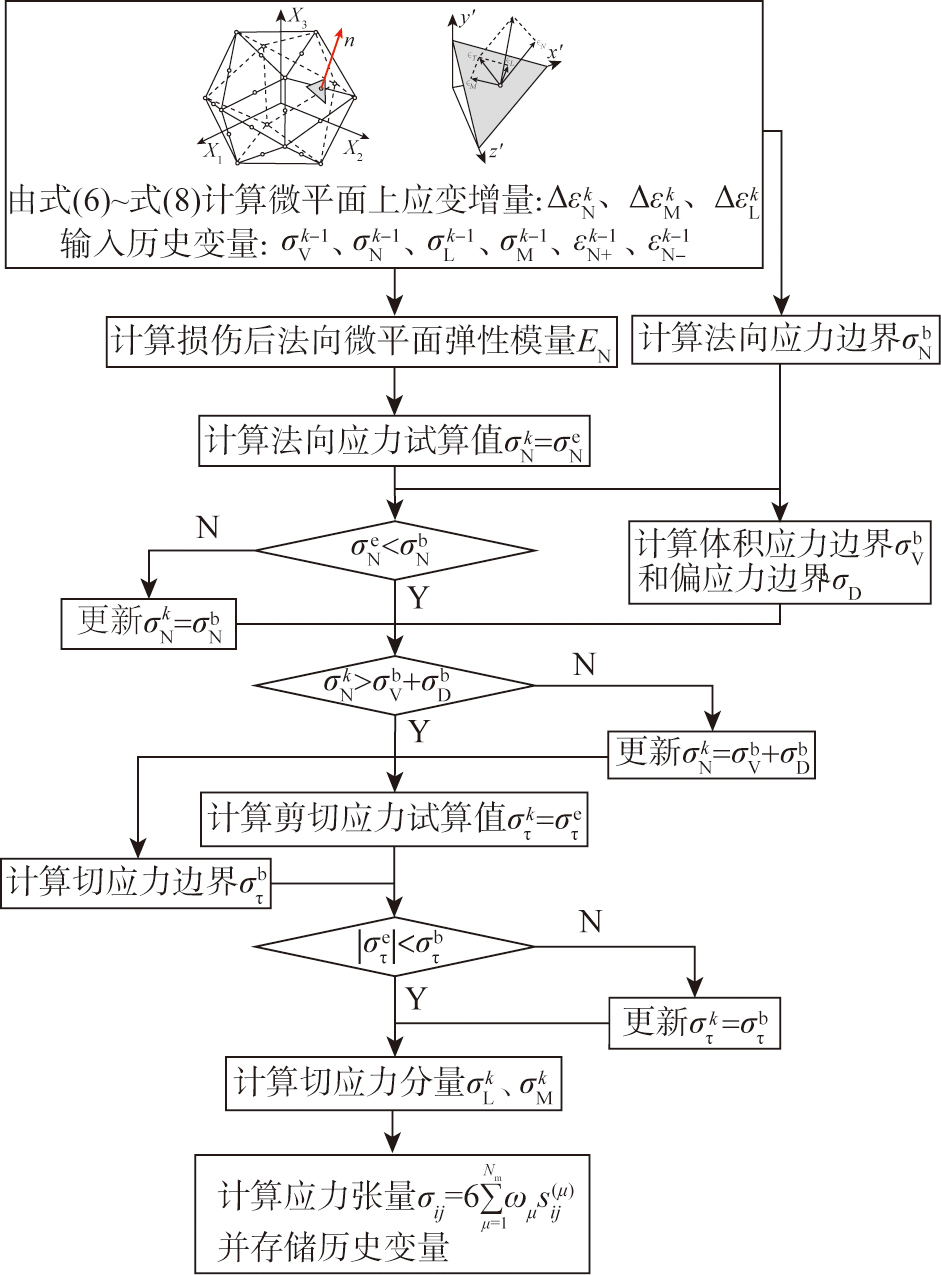

Microbially induced calcite precipitation (MICP) is effective to strengthen the calcareous sand foundation of reef fortifications via in-situ construction,dynamic response,and the dynamic characteristics and numerical model of MICP-treated calcareous sand are essential to the reef defense design and damage evaluation.The MICP cementation experiment is conducted on calcareous sand from the South China Sea.The strain rate effect of MICP-treated calcareous sand is evaluated through quasi-static uniaxial compression and dynamic mechanical testing of a split Hopkinson pressure bar (SHPB).A user subroutine VUMAT is developed based on the microplane model M7 for calibrating the material parameters.Compared with the calcareous sand penetration experiments,the numerical simulations demonstrate an increase in the penetration resistance of calcareous sand.The results reveal that the unconfined uniaxial compressive strength of MICP-treated calcareous sand specimen is 12.31MPa,and the dynamic increase factors are 1.117,1.485,and 1.828,respectively,at strain rates of 426s^-1,1150s^-1,and 1712s^-1 on the Hopkinson bar.Strain rate effect has a negative influence on the penetration depth of M7 constructive model by 4.2% DOP contribution.Compared with ordinary calcareous sand,the depth of penetration of MICP-treated calcareous sand is reduced by 40.11% on average,and the average target static resistance increases from 5.21MPa to 11.89MPa,indicating a significant increase in the resistance to penetration.These findings provide the experimental data and simulation model reference for damage analyses of reef fortifications subjected to high-impact loadings.

Key words: calcareous sand cementation, strain rate effect, microbially induced calcite precipitation, microplane model, anti-penetration performance

CLC Number:

TJ301

FENG Jun, SUN Weiwei, HUANG Jingnan, SUN Xichen, LI Yifan, DU Lufei, FU Jiawei. Dynamic Mechanical Test and Microplane Model-based Simulation of MICP-treated Calcareous Sand[J]. Acta Armamentarii, 2025, 46(11): 250155-.

Figures/Tables 24

References 26

[1]	张旭浩, 李科斌, 孙渊博, 等. 基于压导式连续电阻探针的珊瑚砂冲击Hugoniot曲线测试方法研究[J]. 兵工学报, 2025, 46(7):240584. doi: 10.12382/bgxb.2024.0584
	ZHANG X H, LI K B, SUN Y B, et al. Research on test method of shock Hugoniot curve of coral sand based on continuous pressure-conducted electrical resistance probe[J]. Acta Armamentarii, 2025, 46(7):240584. (in Chinese) doi: 10.12382/bgxb.2024.0584
[2]	刘汉龙, 马国梁, 肖杨, 等. 微生物加固岛礁地基现场试验研究[J]. 地基处理, 2019, 1(1):26-31.
	LIU H L, MA G L, XIAO Y, et al. In situ experimental research on calcareous foundation stabilization using MICP technique on the reclaimed coral reef islands[J]. Chinese Ground Improvement, 2019, 1(1):26-31. (in Chinese)
[3]	LAI H J, DING X Z, CUI M J, et al. Factors affecting the effectiveness of biocementation of soil[J]. Biogeotechnics, 2024, 2(3):100087. doi: 10.1016/j.bgtech.2024.100087 URL
[4]	SUN X C, HUANG J N, SUN W W, et al. Incubation temperature effect on bacterial self-healing capabilities of cementitious mortar cracks:deep learning based crack sealing rates evaluations[J]. Construction and Building Materials, 2024, 441:137489. doi: 10.1016/j.conbuildmat.2024.137489 URL
[5]	刘汉龙. 生物建造体系与展望[J]. 土木与环境工程学报(中英文), 2024, 46(4):1-22.
	LIU H L. Biogenic construction:system and perspectives[J]. Journal of Civil and Environmental Engineering, 2024, 46(4):1-22. (in Chinese)
[6]	PENG C C, HUANG J N, SUN X C, et al. Projectile penetration into calcareous sand subgrade airport runway pavement with genetic algorithm optimization[J]. Materials, 2024, 17(23):5696. doi: 10.3390/ma17235696 URL
[7]	刘汉龙, 肖鹏, 肖杨, 等. MICP胶结钙质砂动力特性试验研究[J]. 岩土工程学报, 2018, 40(1):38-45.
	LIU H L, XIAO P, XIAO Y, et al. Dynamic behaviors of MICP-treated calcareous sand in cyclic tests[J]. Chinese Journal of Geotechnical Engineering, 2018, 40(1):38-45. (in Chinese)
[8]	张磊, 杨俊杰, 王子玉. MICP胶结钙质砂长期变形特性试验研究[J]. 海洋湖沼通报, 2023, 45(6):19-26. doi: 10.13984/j.cnki.cn37-1141.2023.06.003
	ZHANG L, YANG J J, WANG Z Y. Dynamic tests of long-term deformation of MICP cemented calcareous sand[J]. Transactions of Oceanology and Limnology, 2023, 45(6):19-26. (in Chinese) doi: 10.13984/j.cnki.cn37-1141.2023.06.003
[9]	肖鹏, 刘汉龙, 史金权, 等. 微生物加固钙质砂地基动力响应特性研究[J]. 岩土工程学报, 2023, 45(6):1303-1313.
	XIAO P, LIU H L, SHI J Q, et al. Dynamic responses of calcareous foundation reinforced by microbially induced calcite precipitation[J]. Chinese Journal of Geotechnical Engineering, 2023, 45(6):1303-1313. (in Chinese)
[10]	张鑫磊, 陈育民, 张喆, 等. 微生物灌浆加固可液化钙质砂地基的振动台试验研究[J]. 岩土工程学报, 2020, 42(6):1023-1031.
	ZHANG X L, CHEN Y M, ZHANG Z, et al. Performance evaluation of liquefaction resistance of a MICP-treated calcareous sandy foundation using shake table tests[J]. Chinese Journal of Geotechnical Engineering, 2020, 42(6):1023-1031. (in Chinese)
[11]	LIU N, QIU J S. Xerogel-based building material (XBM):potential for construction on Mars base and other resourceless sites[C]// Proceedings of Behavior and Mechanics of Multifunctional Materials XVI. Bellingham,WA,US:SPIE, 2022, 12044:95-105.
[12]	WANG Z Y, ZHAO X Y, CHEN X, et al. Mechanical properties and constitutive model of calcareous sand strengthened by MICP[J]. Journal of Marine Science and Engineering, 2023, 11(4):819. doi: 10.3390/jmse11040819 URL
[13]	CANER F C, BAŽANT Z P. Microplane model M7 for plain concrete.I:formulation[J]. Journal of Engineering Mechanics, 2013, 139(12):1714-1723. doi: 10.1061/(ASCE)EM.1943-7889.0000570 URL
[14]	LUO W, CHAU V T, BAŽANT Z P. Effect of high-rate dynamic comminution on penetration of projectiles of various velocities and impact angles into concrete[J]. International Journal of Fracture, 2019, 216(2):211-221. doi: 10.1007/s10704-019-00354-0
[15]	段安, 张大伟, ALNAGGAR M. 微平面模型模拟ASR作用下混凝土力学行为[J]. 浙江大学学报(工学版), 2015, 49(10):1939-1945.
	DUAN A, ZHANG D W, ALNAGGAR M. Microplane modeling of ASR effects on concrete structures[J]. Journal of Zhejiang University (Engineering Science), 2015, 49(10):1939-1945. (in Chinese)
[16]	KHAN M N H, GGNN A, SHIMAZAKI S, et al. Coral sand solidification test based on microbially induced carbonate precipitation using ureolytic bacteria[J]. Materials Transactions, 2015, 56(10):1725-1732. doi: 10.2320/matertrans.M-M2015820 URL
[17]	SUN Q R, WILLIAMS B, LOEFFER C, et al. Comparative study of strength-based damage evolution in ultra-high-performance concrete (UHPC) and conventional concrete (CC) under dynamic loading[J]. International Journal of Impact Engineering, 2021, 155:103893. doi: 10.1016/j.ijimpeng.2021.103893 URL
[18]	高光发. 混凝土材料动态压缩强度的应变率强化规律[J]. 高压物理学报, 2017, 31(3):261-270.
	GAO G F. Effect of strain-rate hardening on dynamic compressive strength of plain concrete[J]. Chinese Journal of High Pressure Physics, 2017, 31(3):261-270. (in Chinese)
[19]	高光发. 动态压缩下混凝土应变率效应压力与横向效应的影响与校正[J]. 北京理工大学学报, 2020, 40(2):135-142,149.
	GAO G F. Influence and revision of transverse inertia effect and pressure hardening effect on strain-rate hardening effect of compressive strength of concrete[J]. Transactions of Beijing Institute of Technology, 2020, 40(2):135-142,149. (in Chinese)
[20]	黎晓冬, 王亚松, 邱艳宇, 等. 爆炸荷载作用下三相饱和钙质砂的液化特性[J]. 兵工学报, 2023, 44(增刊1):170-179.
	LI X D, WANG Y S, QIU Y Y, et al. Liquefaction characteristics of three-phase saturated calcareous sand under explosive loading[J]. Acta Armamentarii, 2023, 44(S1):170-179. (in Chinese) doi: 10.12382/bgxb.2023.0739
[21]	CANER F C, BAŽANT Z P. Microplane model M7 for plain concrete.II:Calibration and verification[J]. Journal of Engineering Mechanics, 2013, 139(12):1724-1735. doi: 10.1061/(ASCE)EM.1943-7889.0000571 URL
[22]	苗伟伟, 邱艳宇, 程怡豪, 等. 钙质砂侵彻试验与理论研究[J]. 振动与冲击, 2019, 38(17):232-237.
	MIAO W W, QIU Y Y, CHENG Y H, et al. Penetration tests of calcareous sand and theoretical study[J]. Journal of Vibration and Shock, 2019, 38(17):232-237. (in Chinese)
[23]	OMIDVAR M, DINOTTE J, GIACOMO L, et al. Dynamics of sand response to rapid penetration by rigid projectiles[J]. Granular Matter, 2024, 26(3):73. doi: 10.1007/s10035-024-01440-4
[24]	SHI C C, WANG M Y, ZHANG K L, et al. Semi-analytical model for rigid and erosive long rods penetration into sand with consideration of compressibility[J]. International Journal of Impact Engineering, 2015, 83:1-10. doi: 10.1016/j.ijimpeng.2015.04.007 URL
[25]	刘志林, 孙巍巍, 王晓鸣, 等. 基于盖帽模型的混凝土动态球型空腔膨胀模型和侵彻阻力分析[J]. 兵工学报, 2015, 36(12):2209-2216. doi: 10.3969/j.issn.1000-1093.2015.12.001
	LIU Z L, SUN W W, WANG X M, et al. Spherical cavity-expansion model for concrete targets based on cap model and penetration resistance analysis[J]. Acta Armamentarii, 2015, 36(12):2209-2216. (in Chinese)
[26]	FENG J, SONG M L, SUN W W, et al. Thick plain concrete targets subjected to high speed penetration of 30CrMnSiNi2A steel projectiles:Tests and analyses[J]. International Journal of Impact Engineering, 2018, 122:305-317. doi: 10.1016/j.ijimpeng.2018.09.005 URL

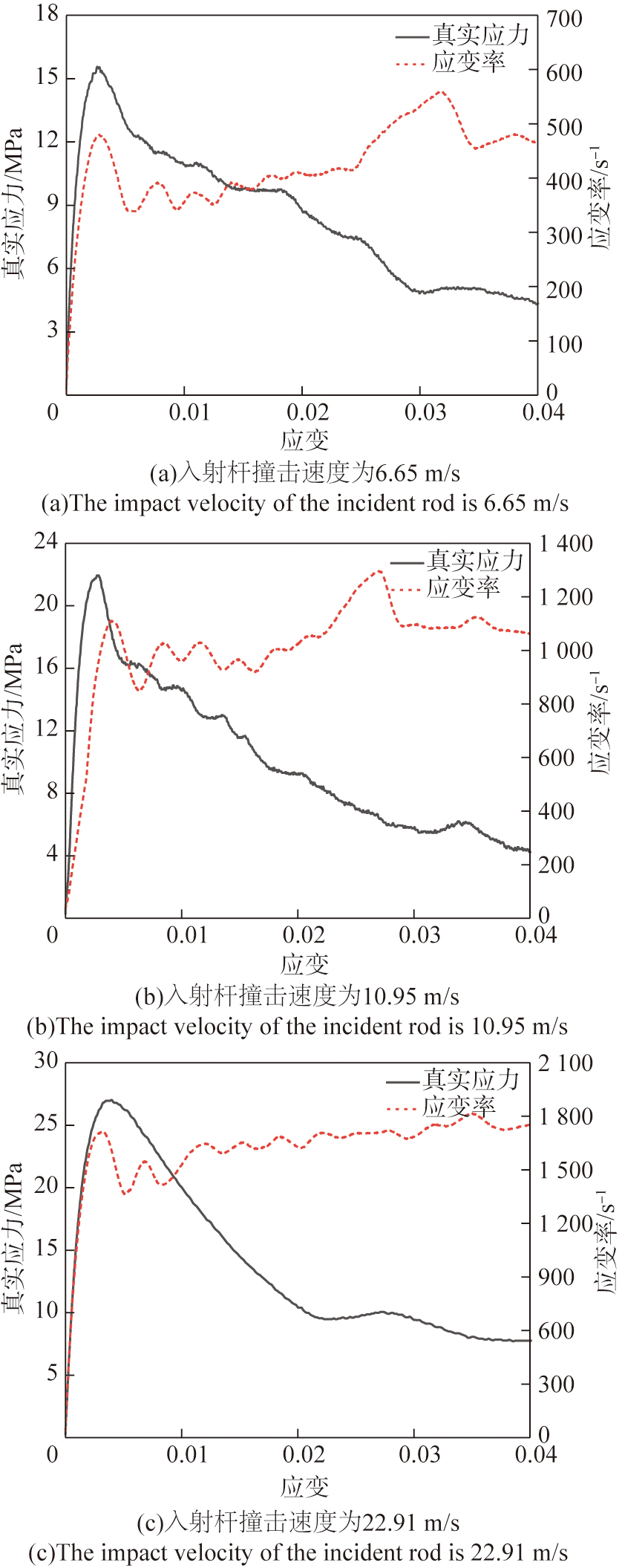

试件编号	撞击速度/(m·s^-1)	应变率/s^-1	抗压强度/MPa
S-2	6.65	426	16.50
S-3	10.95	1 150	21.94
S-4	22.91	1 712	27.01

试件编号	撞击速度/(m·s^-1)	应变率/s^-1	抗压强度/MPa
S-2	6.65	426	16.50
S-3	10.95	1 150	21.94
S-4	22.91	1 712	27.01

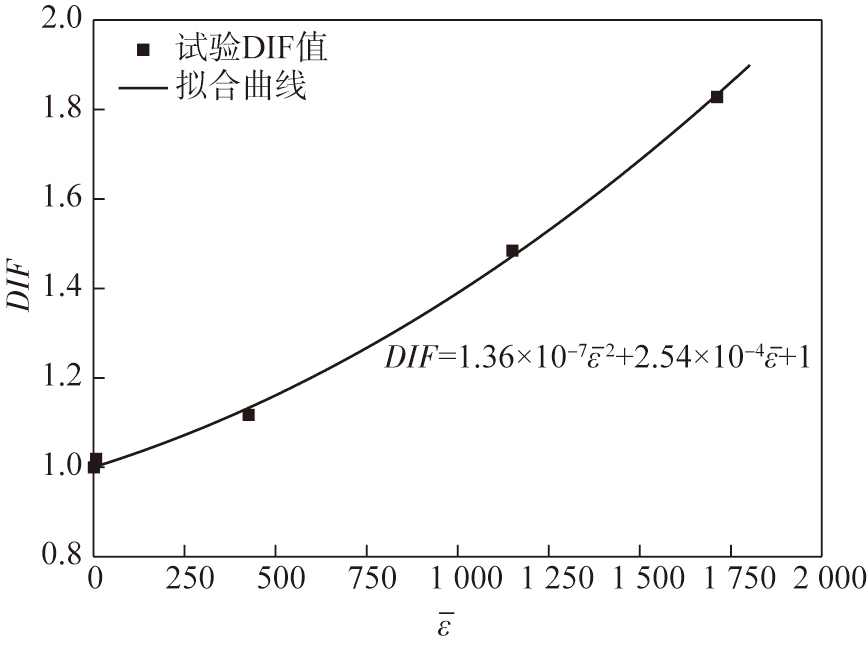

试件编号	应变率/s^-1	抗压强度/MPa	DIF
S-0	1.7×10^-3	12.31	1.000
S-1	1.2×10^-2	12.54	1.019
S-2	426	16.50	1.117
S-3	1150	21.94	1.485
S-4	1712	27.01	1.828

试件编号	应变率/s^-1	抗压强度/MPa	DIF
S-0	1.7×10^-3	12.31	1.000
S-1	1.2×10^-2	12.54	1.019
S-2	426	16.50	1.117
S-3	1150	21.94	1.485
S-4	1712	27.01	1.828

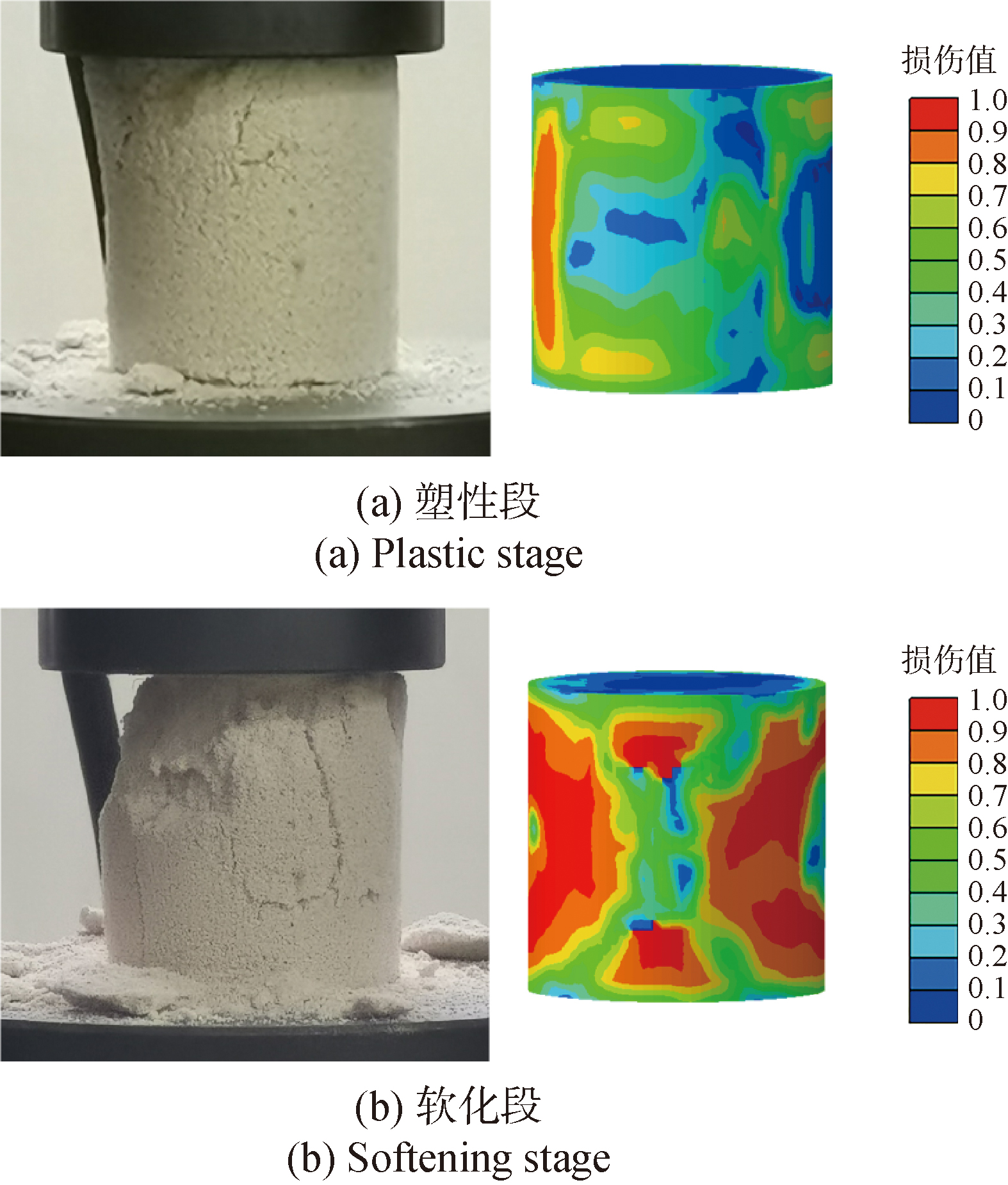

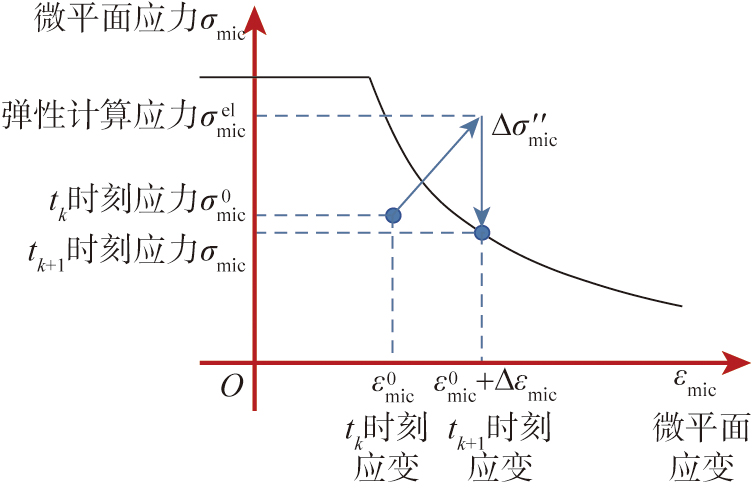

参数	取值	含义
E/GPa	20	参考弹性模量
c₁	0.089	控制单轴拉伸强度
c₂	0.176	控制单轴拉伸曲线峰值点处曲线圆度
c₃	4	控制单轴拉伸曲线峰值后软化段的斜率
c₄	50	控制单轴压缩曲线峰值后软化末端斜率
c₅	3 500	控制压缩体积膨胀
c₆	20	控制压缩体积膨胀峰值点处曲线圆度
c₇	1	控制单轴压缩曲线初始后峰的斜率
c₈	8	控制后压缩曲线峰值强度
c₉	0.012	控制单轴压缩曲线峰值点处的曲线圆度
c₁₀	0.33	控制有效摩擦系数
c₁₁	0.5	摩擦响应中的初始黏聚力
c₁₂	2.36	控制黏聚力随拉伸体积应变发生改变
c₁₃	4500	控制拉伸时的卸载斜率
c₁₄	300	控制低静水压力下的卸载斜率
c₁₅	4000	控制卸载斜率在强约束与弱约束之间过度
c₁₆	60	控制高静水压力下的卸载斜率
c₁₇	1.4	控制拉伸强度
c₁₈/MPa	62.5	控制压缩加载下的拉裂
c₁₉	1000	控制压缩引起的伸长软化率
c₂₀	1.8	控制高压下体积分量-偏分量耦合
c₂₁/MPa	250	控制体积应力-应变边界上限值
