The Dynamic Mechanical Properties and Constitutive Model of Fiber-reinforced Polyurea Materials

doi:10.12382/bgxb.2025.0073

Abstract

Abstract:

The dynamic mechanical property of fiber-reinforced polyurea material is studied.The dynamic compression experiments are conducted on the polyurea material specimen by using a separated Hopkinson pressure bar (SHPB).The stress-strain curves of the specimens within different strain rates at three different temperatures are obtained through the experiments.A visco-elastic constitutive model based on the standard linear solid model is established.The experimental results show that the dynamic mechanical response of fiber-reinforced polyurea is nonlinear,with the stress-strain curve consisting of a super-stress region and a hyperelastic region.As the strain increases,the super-stress value tends to stabilize,and the nonlinear term associated with strain rate in the constitutive model also gradually approaches a stable value related to the strain rate.The visco-elastic constitutive model based on the standard linear solid model can accurately describe the dynamic mechanical behavior of fiber-reinforced polyurea.The constitutive model is implemented through secondary development in LS-DYNA for simulation.In both SHPB and air blast simulations,the simulated results are in good agreement with the experimental data,which validates the accuracy of the constitutive model.

Key words: polyurea material, separated Hopkinson pressure bar test, dynamic mechanical property, constitutive model

CLC Number:

O347. 3

FU Liheng, YAO Xiangyang, WANG Luqing, MA Honghao, QI Feng. The Dynamic Mechanical Properties and Constitutive Model of Fiber-reinforced Polyurea Materials[J]. Acta Armamentarii, 2025, 46(11): 250073-.

Figures/Tables 15

Fig.1 SHPB experimental setup

Fig.2 Preliminary experimental stress-strain curve

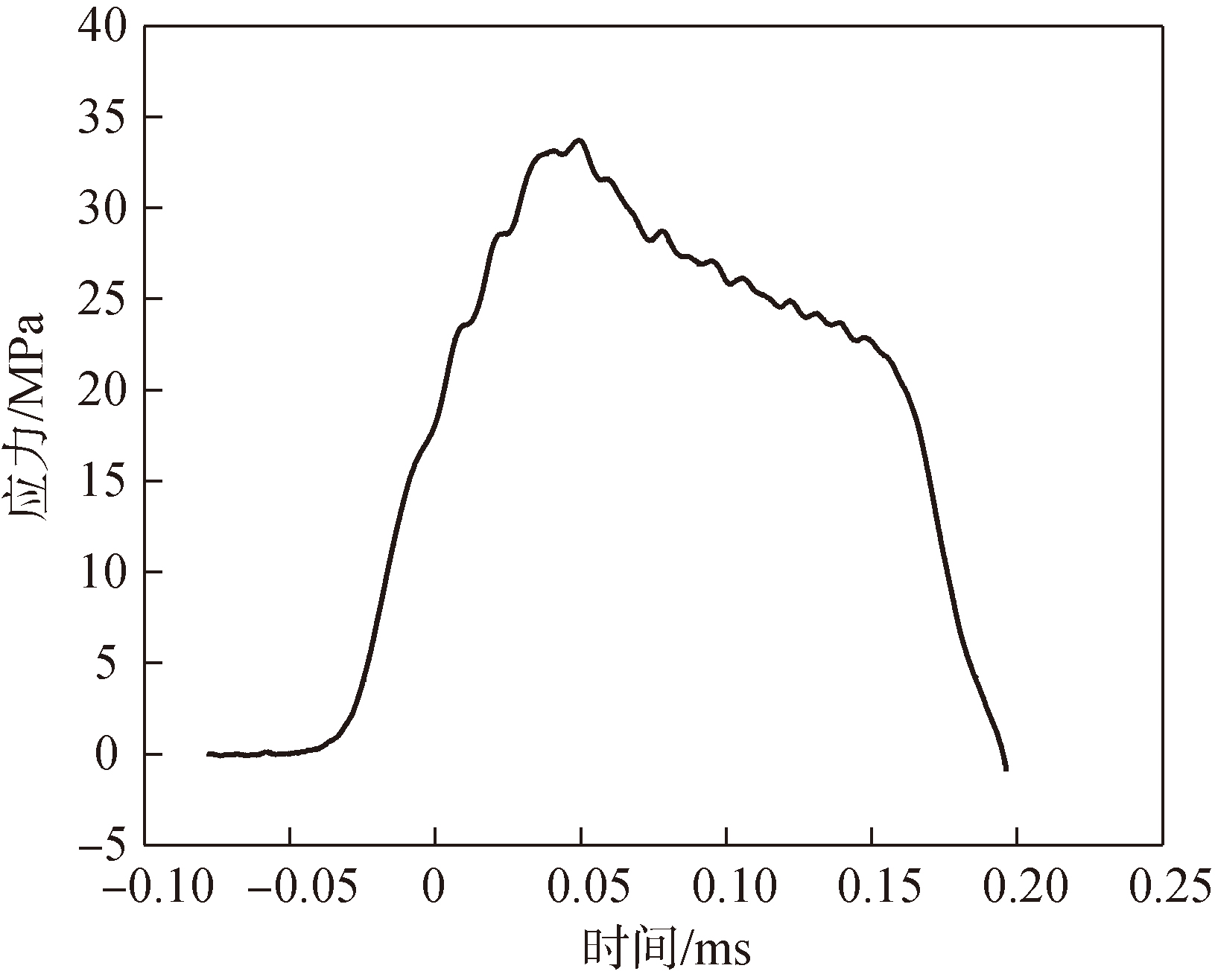

Fig.3 Preliminary experimental stress-time curve

Fig.4 Preliminary experimental strain rate-time curve

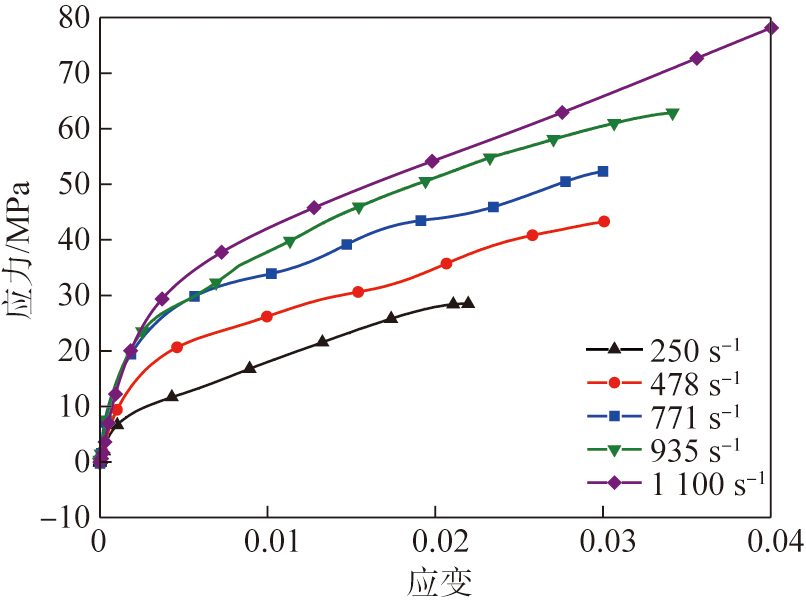

Fig.5 SHPB test data and quasi-static data at room temperature(25℃)

Fig.6 SHPB test data at ultra-low temperature(-40℃)

Fig.7 SHPB test data at low temperature(0℃)

Fig.8 Schematic diagram of SLS model

Fig.9 Comparison of fitting results and experimental results

Table 1 Constitutive parameters of polyurea material at different temperatures

温度/℃	E₁/MPa	E₂/MPa	η/(MPa·s)
25	15000	400	0.016
0	15000	850	0.035
-40	15000	950	0.040

Fig.10 Comparison between simulation results based on secondary development and experimental results

Fig.11 Photograph of the air-blast test setup

Fig.12 Comparison of pressure-time curves of air blast experimental and simulated results

Fig.13 Blast resistance test of polyurea-steel composite structure

Fig.14 Comparisons of the simulated and test results
