基于堆叠稀疏自编码器的多缸喷油器堵塞定位算法

doi:10.12382/bgxb.2023.0764

摘要/Abstract

摘要：

燃油喷射系统的工作质量直接影响柴油机工作过程及性能,针对多缸机不同喷油器发生堵塞故障且故障程度不一时,传统故障诊断方法难以精准定位故障喷油器的问题,提出一种基于堆叠稀疏自编码器(Stacked Sparse Autoencoder, SSAE)的故障定位算法。通过SSAE提取不同喷油器发生堵塞故障时轨压信号的深层特征,以softmax网络实现故障部件定位。以一维轨压信号为输入,故障喷油器定位为输出,并研究算法超参数对算法精度的影响。研究结果表明,此算法能精准定位发生堵塞故障的喷油器,且精度不受堵塞程度的影响,故障诊断正确率可达96.7%。

关键词: 高压共轨, 不同喷油器堵塞, 堆叠稀疏自编码器, 故障定位

Abstract:

The quality of the fuel injection system directly affects the working process and performance of diesel engines. The traditional fault diagnosis methods are difficult to accurately locate the faulty injectors when the blocking faults occur in different injectors of multi-cylinder engines with varying degrees of fault. A fault location algorithm based on stacked sparse autoencoder (SSAE) is proposed. The deep features of rail pressure signals are extracted by SSAE when the fuel injectors at different positions experience the blocking faults, and softmax network is used to locate the faulty injectors. The influence of algorithm hyperparameters on algorithm accuracy is studied by takin one-dimensional rail pressure signal as input and faulty injector position as output. The final results indicate that this algorithm can accurately locate the fuel injector with blocking faults, and the locating accuracy is not affected by the degree of blockage. The fault diagnosis accuracy can reach 96.7%.

Key words: high-pressure common rail, blockage of different fuel injectors, stacked sparse autoencoder, fault location

中图分类号:

TK428

王健, 黄英, 高晓宇, 王拓, 王绪, 惠嘉赫. 基于堆叠稀疏自编码器的多缸喷油器堵塞定位算法[J]. 兵工学报, 2024, 45(10): 3706-3717.

WANG Jian, HUANG Ying, GAO Xiaoyu, WANG Tuo, WANG Xu, HUI Jiahe. Blockage Location Algorithm of Multi-cylinder Fuel Injectors Based on Stacked Sparse Autoencoder[J]. Acta Armamentarii, 2024, 45(10): 3706-3717.

图/表 23

图1 高压共轨系统仿真模型

Fig.1 Simulation model of high pressure common rail system

表1 高压共轨系统参数

Table 1 High pressure common rail system parameters

部件	参数	数值
	喷孔直径/mm	0.12
	喷孔个数	6
	针阀升程/mm	0.25
喷油器	控制阀升程/mm	0.05
	喷嘴压力室容积/mm³	0.2
	进油孔直径/mm	0.28
	出油孔直径/mm	0.31
	共轨管直径/mm	9.5
共轨管	共轨管长度/mm	250
	高压油管内径/mm	2
燃油泵	柱塞直径/mm	7
	柱塞行程/mm	12

图2 不同轨压下喷油器入口压力校核结果

Fig.2 Verificated results of fuel injector inlet pressure under different rail pressures

图3 堆叠稀疏自编码器结构

Fig.3 Structure diagram of SSAE

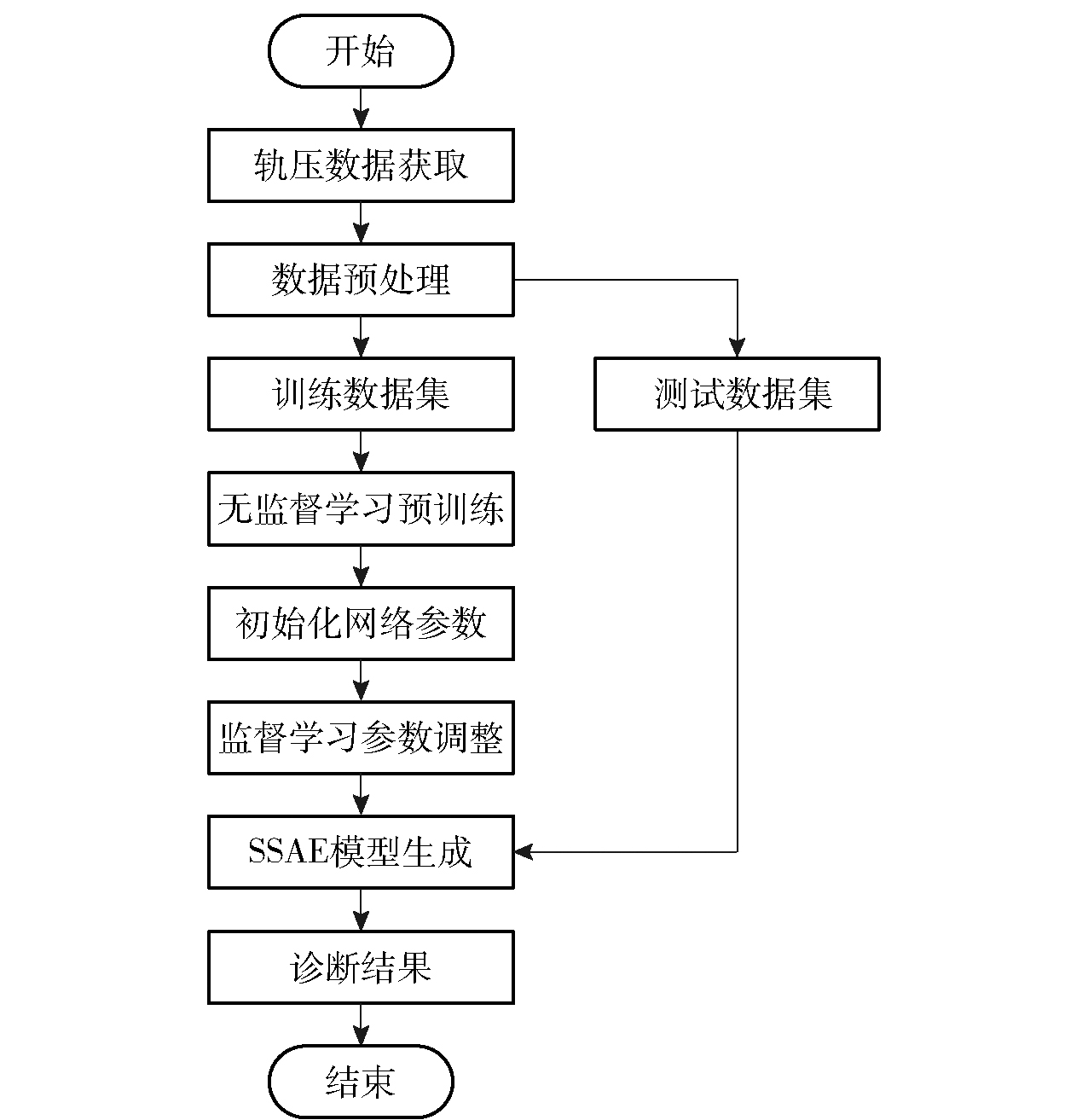

图4 基于SSAE喷油器堵塞故障定位流程

Fig.4 Flowchart of locating the injector blocking faults based on SSAE

表2 各缸喷油器堵塞故障模拟参数表

Table 2 Simulation parameters for blocking faults of fuel injectors in each cylinder

故障类别	堵塞程度
正常	正常
1缸喷油器堵塞	堵塞25%,堵塞 50%,堵塞75%
2缸喷油器堵塞
3缸喷油器堵塞
4缸喷油器堵塞

图5 150MPa各缸喷油器堵塞对轨压影响

Fig.5 The impact of blocked fuel injectors on rail pressure in each cylinder at 150MPa

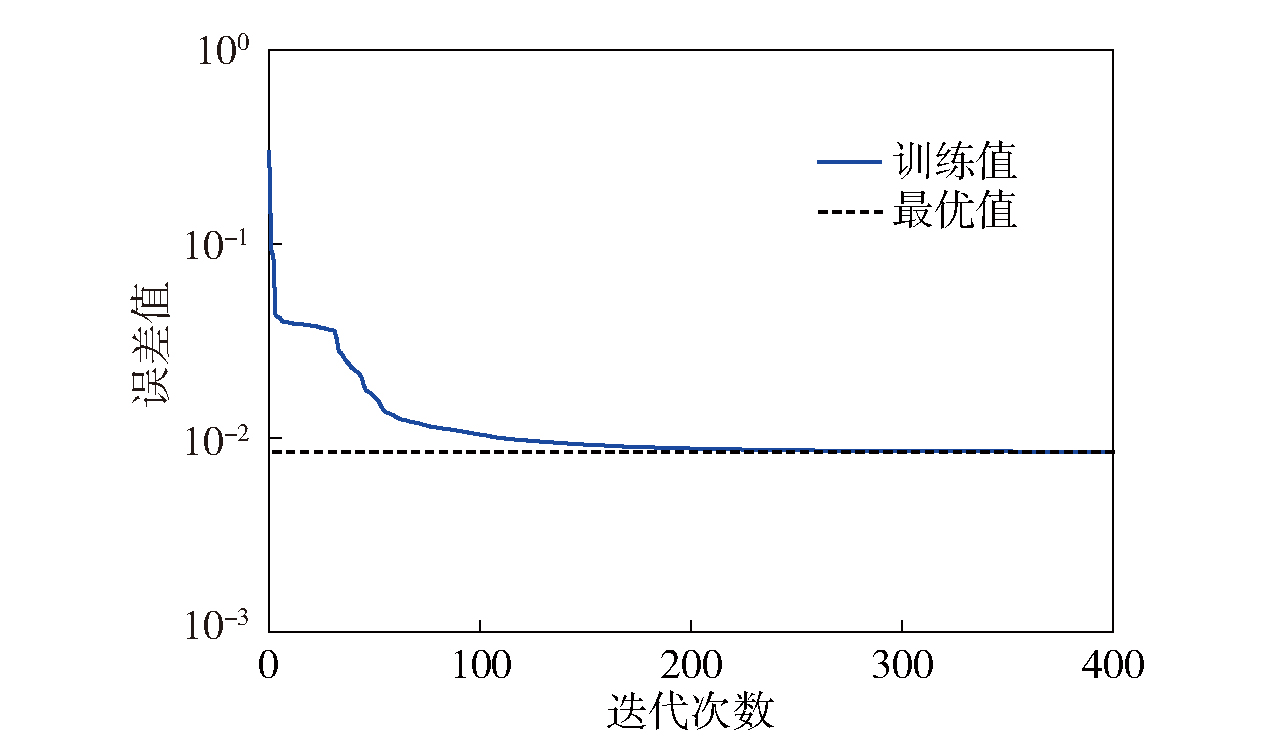

图6 SSAE训练误差随迭代次数变换趋势

Fig.6 Change of SSAE training error with iteration times

图7 各缸喷油器堵塞故障特征可视化

Fig.7 Visualization of fault characteristics of fuel injectors blocking in each cylinder

表3 研究网络层数影响的超参数设置

Table 3 Hyperparameter settings for studying the influence of network layers

试验组	n	ρ	epoch
1	2	0.1	400
2	3	0.1	400
3	4	0.1	400
4	5	0.1	400

图8 不同网络层数特征提取结果对比

Fig.8 Comparison of feature extraction results for different network layers

表4 网络层数影响规律

Table 4 The influence of network layers

试验组	n	轮廓系数	训练时间/s
1	2	0.6695	24.53
2	3	0.7165	39.05
3	4	0.7218	50.19
4	5	0.7242	54.74

表5 研究稀疏因子影响的超参数设置

Table 5 Hyperparameter settings for studying the influence of sparse factors

试验组	n	ρ	epoch
1	3	0.1	400
2	3	0.2	400
3	3	0.3	400
4	3	0.4	400

表6 稀疏因子影响规律

Table 6 The influence of sparse factor

试验组	ρ	轮廓系数	训练时间/s
1	0.1	0.7165	39.05
2	0.2	0.9054	38.75
3	0.3	0.5433	39.24
4	0.4	0.4727	39.61

图9 不同稀疏因子特征提取结果对比

Fig.9 Comparison of feature extraction results for different sparse factors

表7 研究迭代次数影响的超参数设置

Table 7 Hyperparameter settings for studying the influence ofiteration times

试验组	n	ρ	epoch
1	3	0.2	50
2	3	0.2	100
3	3	0.2	200
4	3	0.2	400

表8 迭代次数影响规律

Table 8 The influence of iteration times

试验组	epoch	轮廓系数	训练时间/s
1	50	0.8089	5.42
2	100	0.8400	9.12
3	200	0.9031	12.51
4	400	0.9054	38.75

图10 不同迭代次数特征提取结果对比

Fig.10 Comparison of feature extraction results for different iteration times

表9 SSAE网络超参数设置

Table 9 Hyperparameter setting of SSAE network

N	ρ	epoch
3	0.2	200

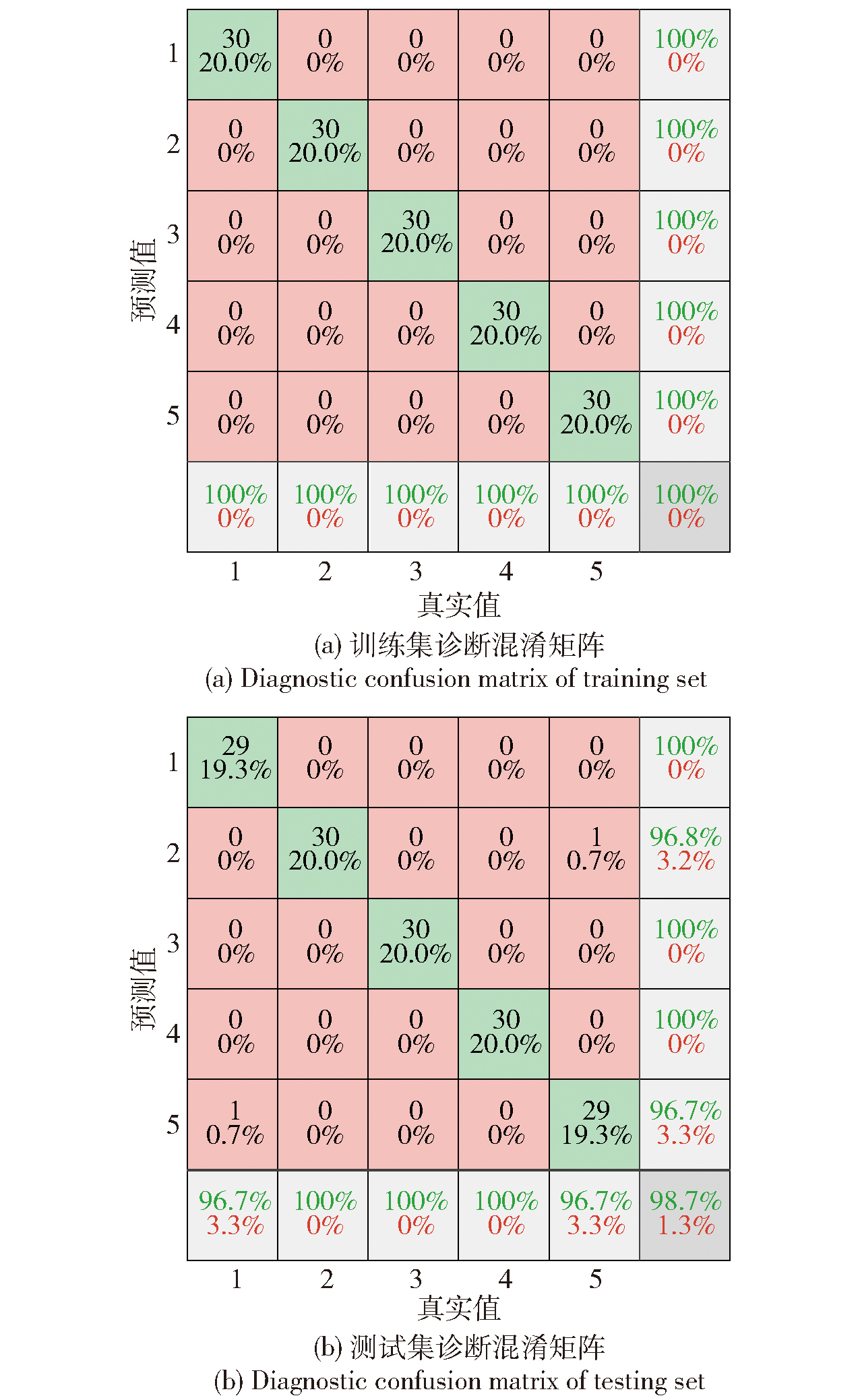

图11 SSAE模型训练集和测试集诊断结果

Fig.11 Diagnosis results of SSAE model training and testing sets

图12 轨压90MPa下SSAE模型训练集和测试集诊断结果

Fig.12 Diagnosis results of SSAE model training and testing sets at 90MPa

图13 轨压120MPa下SSAE模型训练集和测试集诊断结果

Fig.13 Diagnosis results of SSAE model training and esting sets at 120MPa

表10 不同算法诊断结果对比

Table 10 Comparison of diagnostic results of different algorithms

算法	训练精度/%	训练时间/s	诊断用时/s	测试精度/%
AE	76.4	13.04	0.73	80.8
SAE	93.1	4.94	0.7	86.7
SSAE	100	14.8	0.93	96.7
